D. Terminal control
1. Set CD02=0 or 3(open/loop control), CD02=4 or 7(close/
loop control).
2. Set S161 jumper at INT if using internal power.
3. Example : 1
st
and 2
nd
speed control.
Note :
a.Use CW/CCW switch to control motors RUN/STOP. Do not
use power ON/OFF to control motors RUN/STOP.
b.Motor follows the ACC./DEC. time if CW/CCW is switched
during operation.
c.Analog input : Panel VR or F306 VR is 1
st
speed and HML
command is 2
nd
speed.
d.Digital input : CD28/CD34 setting is 1
st
speed and CD29/
CD35 setting is 2
nd
speed.
e.Set CD03=0 for rush stop if need.
28
`
CF
OFF “HIGH”
ON “LOW”
CCW
OFF “HIGH”
ON “LOW”
CW
OFF“HIGH”
ON “LOW”
CCW
CW

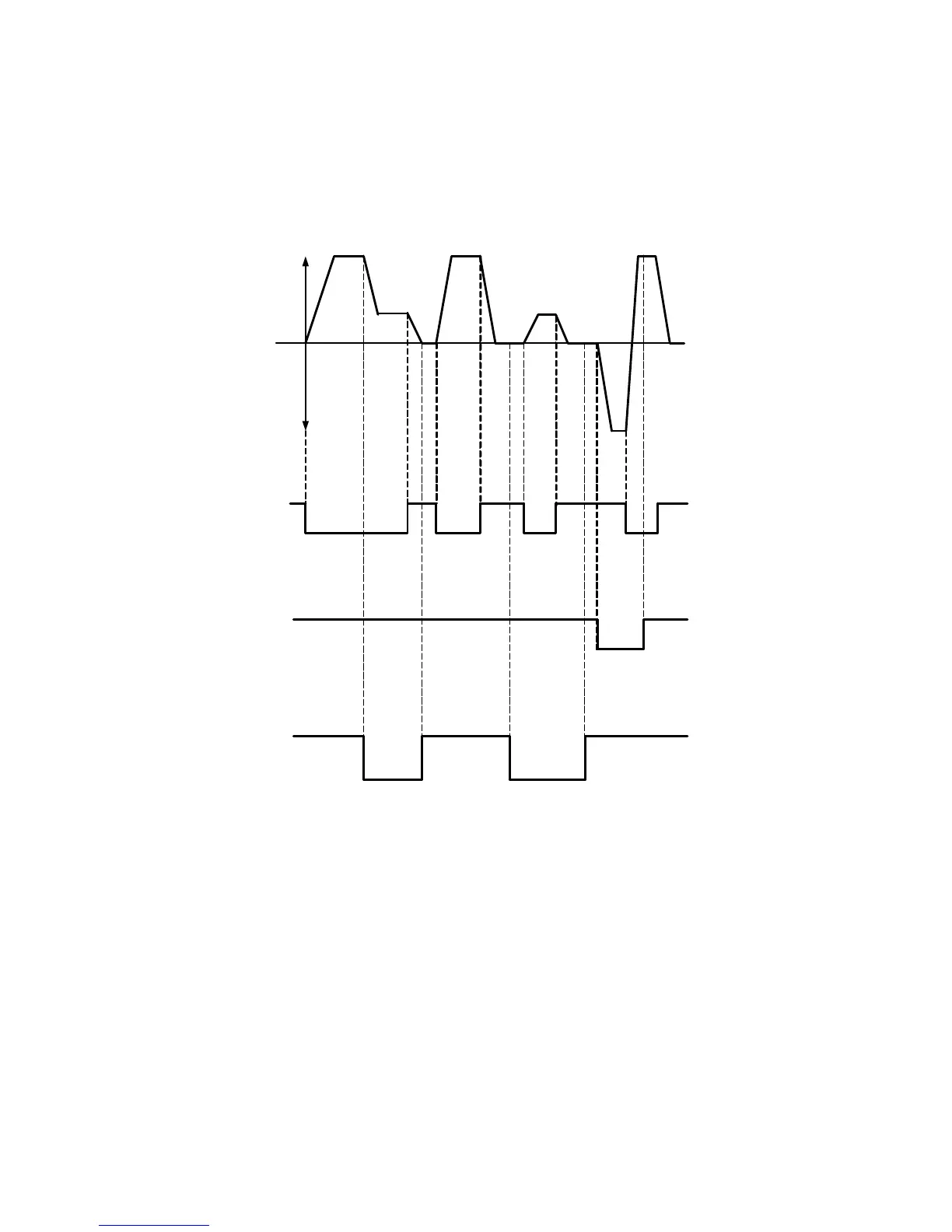

Motors
operation
model
2
nd
speed
1
st
speed
