U V W
power input
2

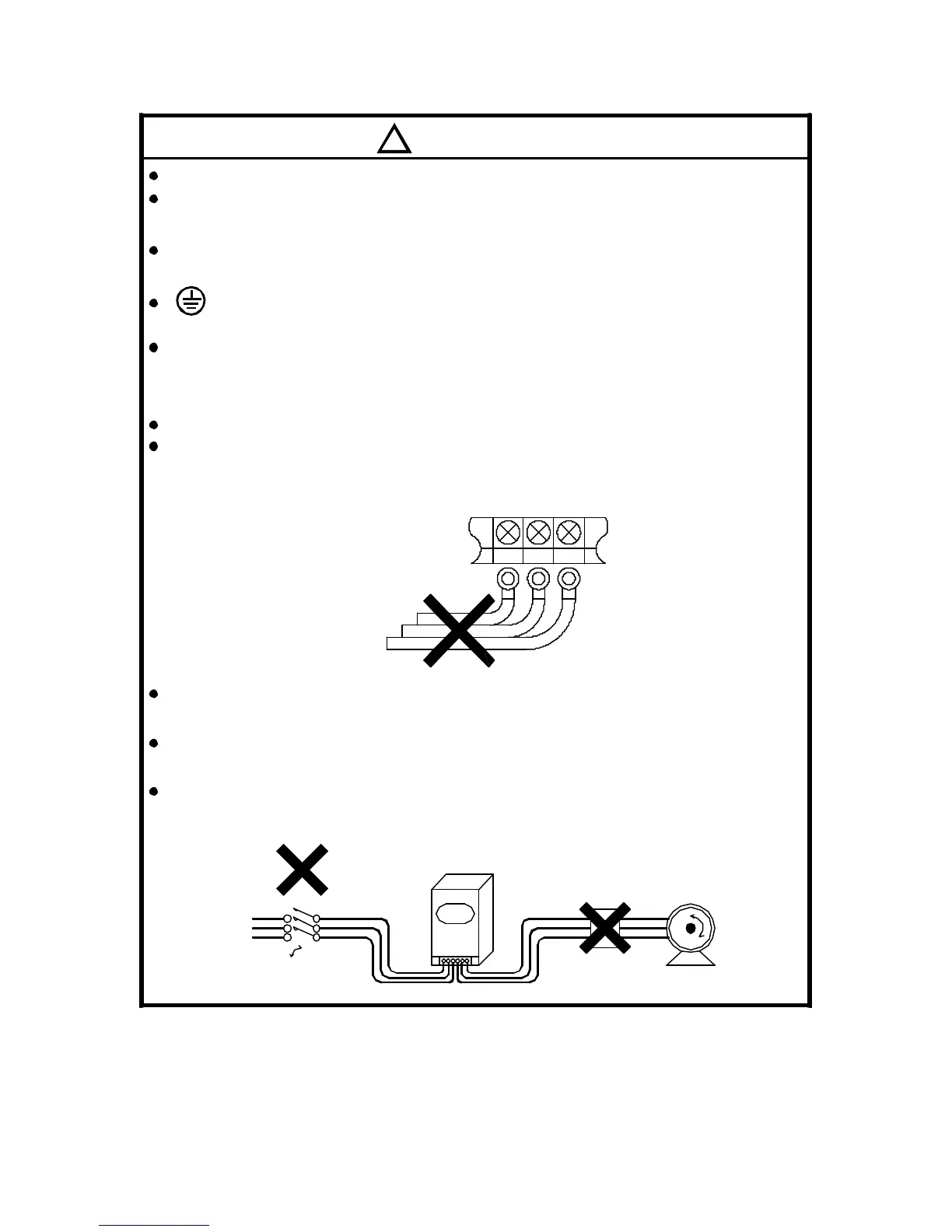

Caution
Please confirm power source voltage to driver input rated voltage.
Please make sure the wiring is correct when driver adds a braking
resister.
Do not put the advance phase capacitor between the driver and motor.
is grounding symbols. Be sure ground both the driver and motor.
Check the power connecter is locked on the terminal of driver.
( Do not looseness, otherwise, connecter will be oxidized and over
heat.)
Check that the input power source voltage is correct.
Be sure to connect the power source to L1,L2(input terminals) and the
motor to U.V.W.(output terminals). (Wrong connection will damage the
driver.)
Do not make any replacement for electronic parts when troubles are
occurred.
Do not perform a withstand voltage test of the driver. It may cause
semiconductor parts or power switches to be damage.
Do not install relay between power source and driver for operating
start and stop.
Phase advancing
capacitor
ON - OFF
Motor
power
source
Motor
BL
