Advantech ADAM-5000/TCP Series - Figure C-4: Normal Mode and Common Modc

Appendix C
Grounding Reference

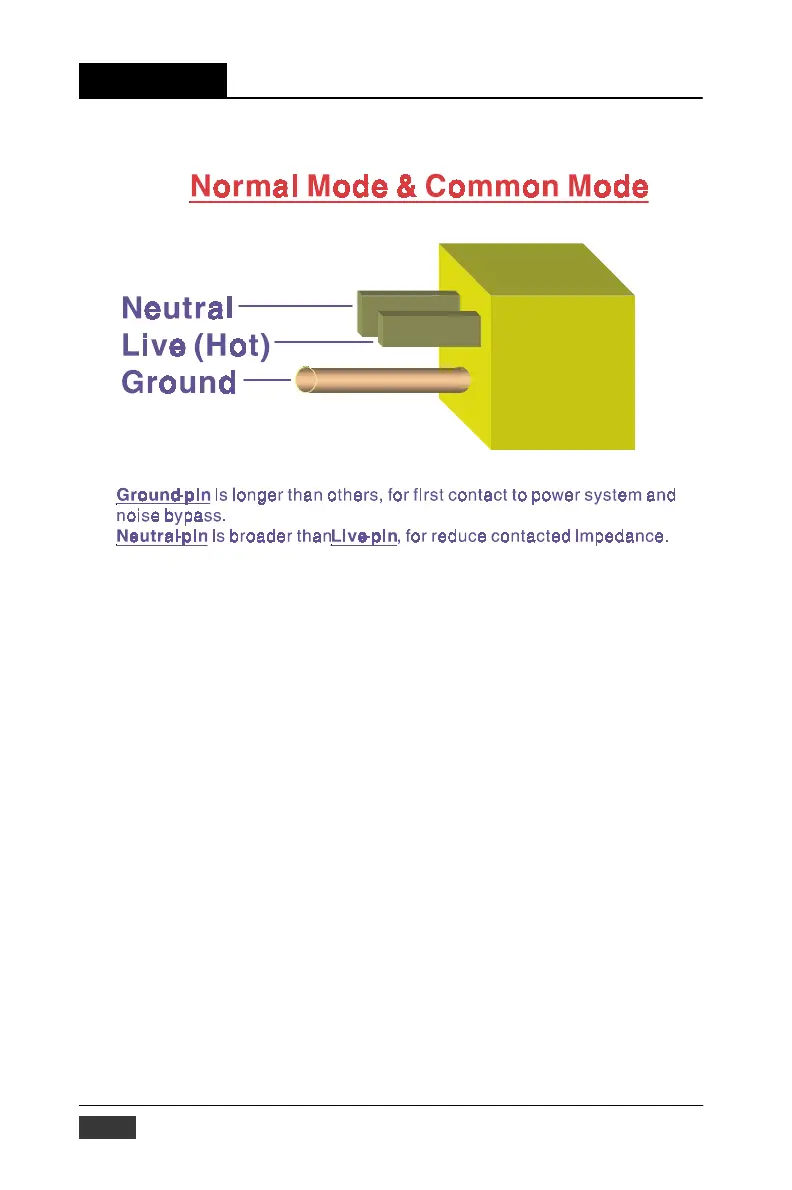

Figure C-4: Normal mode and Common modC
• Ground-pin is longer than others, for first contact to power
system and noise bypass.
• Neutral-pin is broader than LivC-pin, for reducing contact impedancC.
C-6 ADAM-5000/TCP User’s Manual
