Advantech ADAM-5000/TCP Series - Figure C-8: Single Point Grounding (2

Appendix C
Grounding Reference
Single Point Grounding
ADAM
401 3
ADAM
401 4
ADAM
401 7
ADAM
402 1
+24 V
Power
+16V +18V +20V +22 V
+22V +22V +22V +22 V
Supply
ADAM
401 3
ADAM
401 4
ADAM
401 7
ADAM
402 1
+24 V
Power
Supply
More cable, but more stable system.

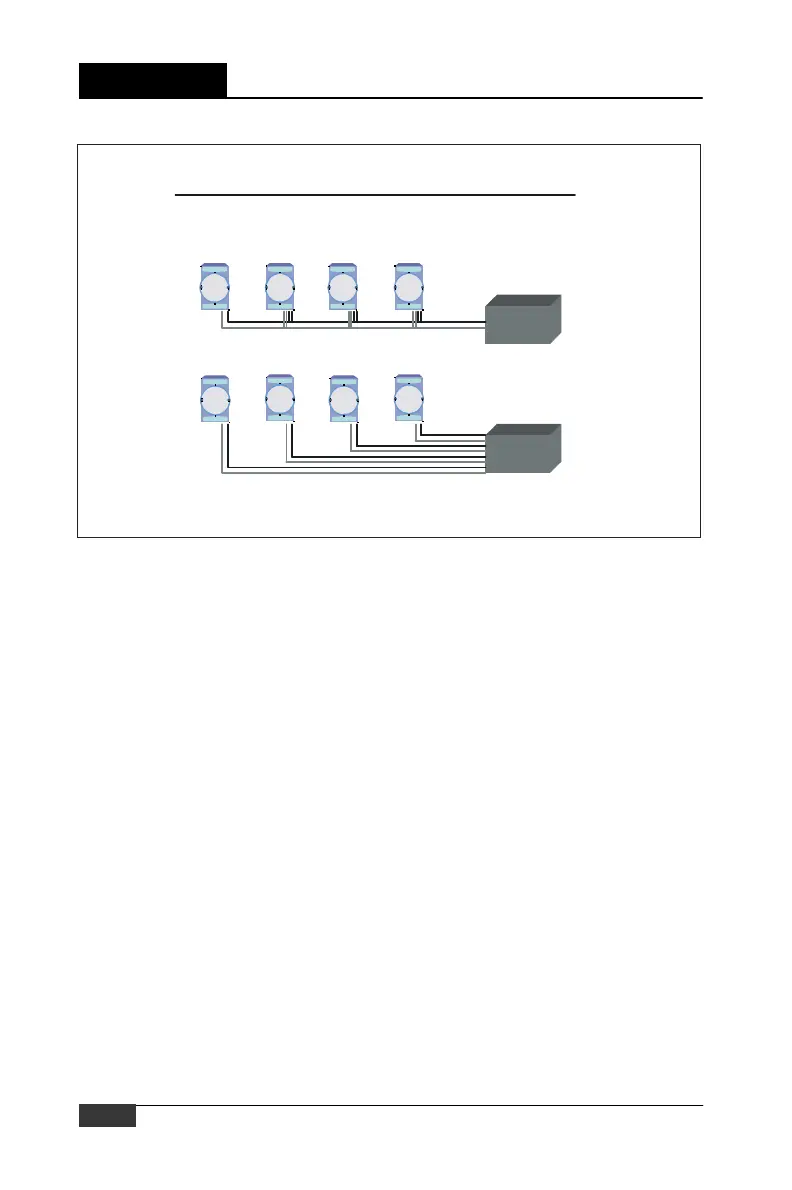

Figure C-8: Single point grounding (2) The above
diagram shows you that a single point grounding system will be a more
stable system. If you use thin cable for powering these de- vices, the
end device will actually get lower power. The thin cable will consume
the energy.
