Advantech ADAM-5000/TCP Series User Manual

Grounding Reference
Appendix C

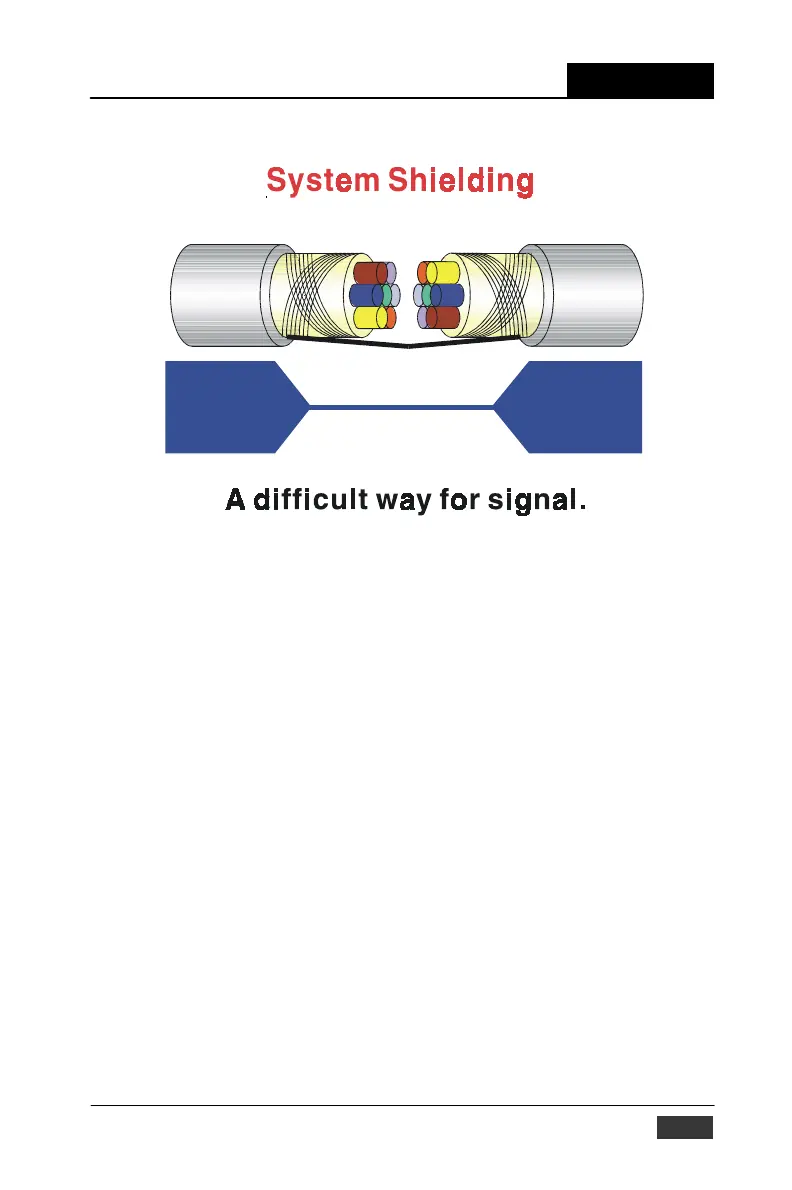

Figure C-13: System Shielding (1)
• Shield connection (1)
If you break into a cable, you might get in a hurry to achieve your goal.
As in all electronic circuits, a signal will use the path of least resistancC.
If we make a poor connection between these two cables we will make a
poor path for the signal. The noise will try to find another path for easier
flow.
ADAM-5000/TCP User’s Manual
C-15
