Chapter 5
System Hardware Configuration
See Figure 5-4, there are also Host PC’s information in the status display
area, include host name and IP address. Moreover, the Windows Utility
provides network connection test tool for user to verify
whether the communication is workable. Key-in the specific IP
address you want to connect and click the PING button, the testing result
will show as Figure
5-5.

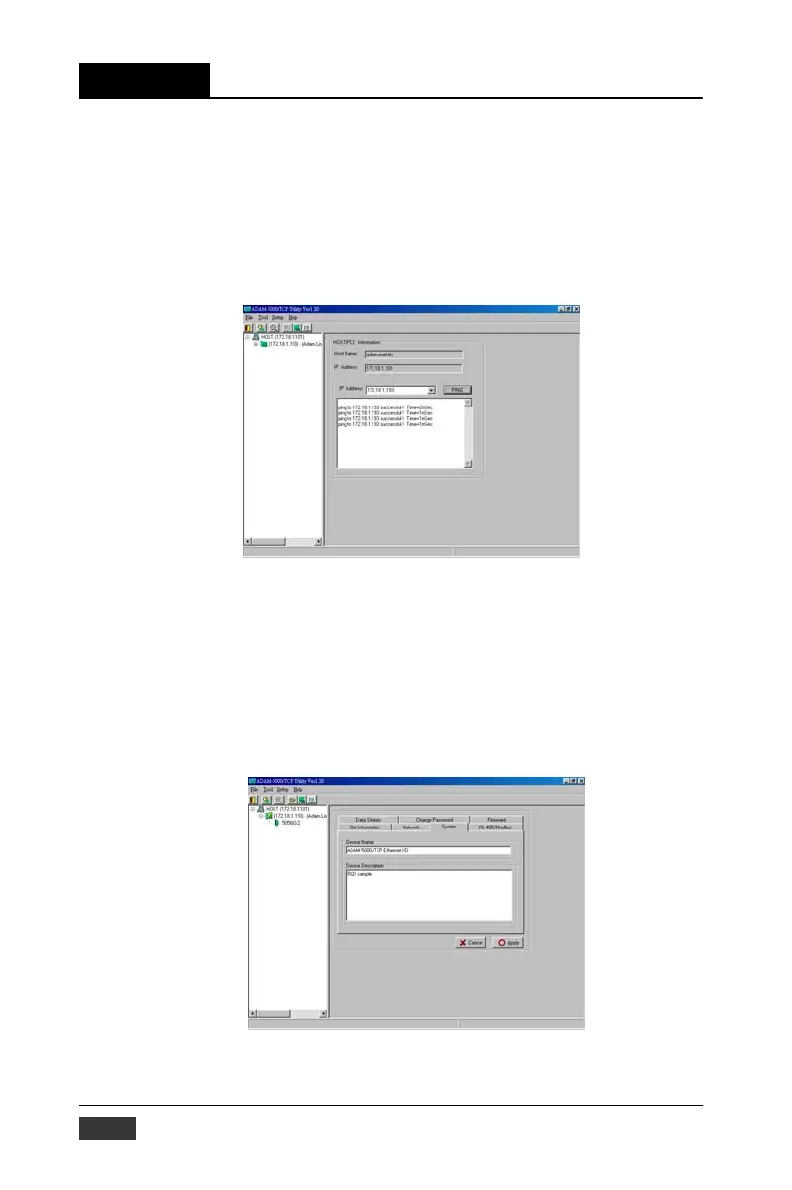

Figure 5-5: Communication testing function Since
Utility software detects the ADAM-5000/TCP Series, on the network,
user can begin to setup each ADAM-5000/TCP Series station
individually with following steps.
Step1: Choose any one station, all I/O modules plugged in the main unit
will be listed on the tree-structure display area. Mean while, the
“Device Name” and “Device Description” are
editable by operator’s needs.
Figure 5-6: Define Device Name and Description
5-6 ADAM-5000/TCP User’s Manual
