Advantech ADAM-5000/TCP Series User Manual

Hardware Installation Guide
Chapter 3

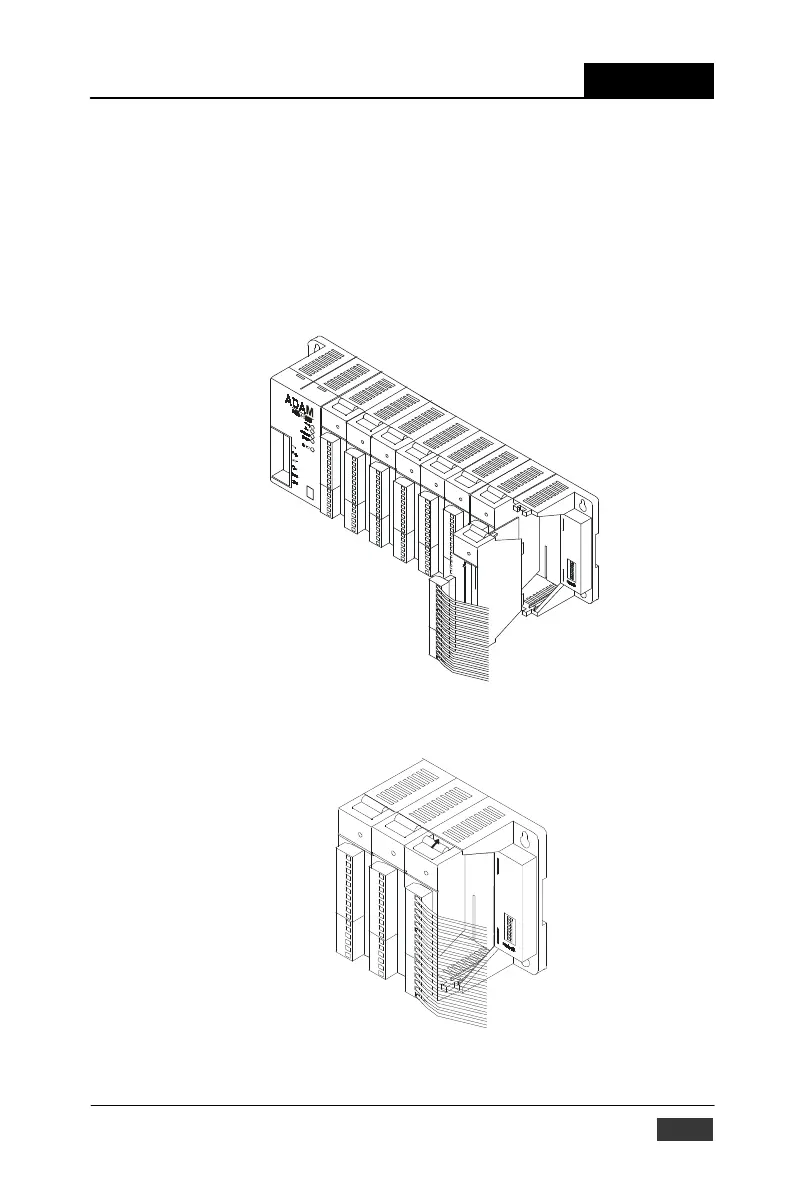

3-2 Installing your main unit and module When inserting
modules into the system, align the PC board of the mod- ule with the
grooves on the top and bottom of the system. Push the
module straight into the system until it is firmly seated in the back plane
connector (see figure 3-1). Once the module is inserted into the system,
push in the retaining clips located at the top and bottom of the module to
firmly secure the module to the system (see figure 3-2).
Figure 3-1: Module alignment and installation
Figure 3-2: Secure the module to the system
ADAM-5000/TCP User’s Manual
3-3
