Appendix C
Grounding Reference

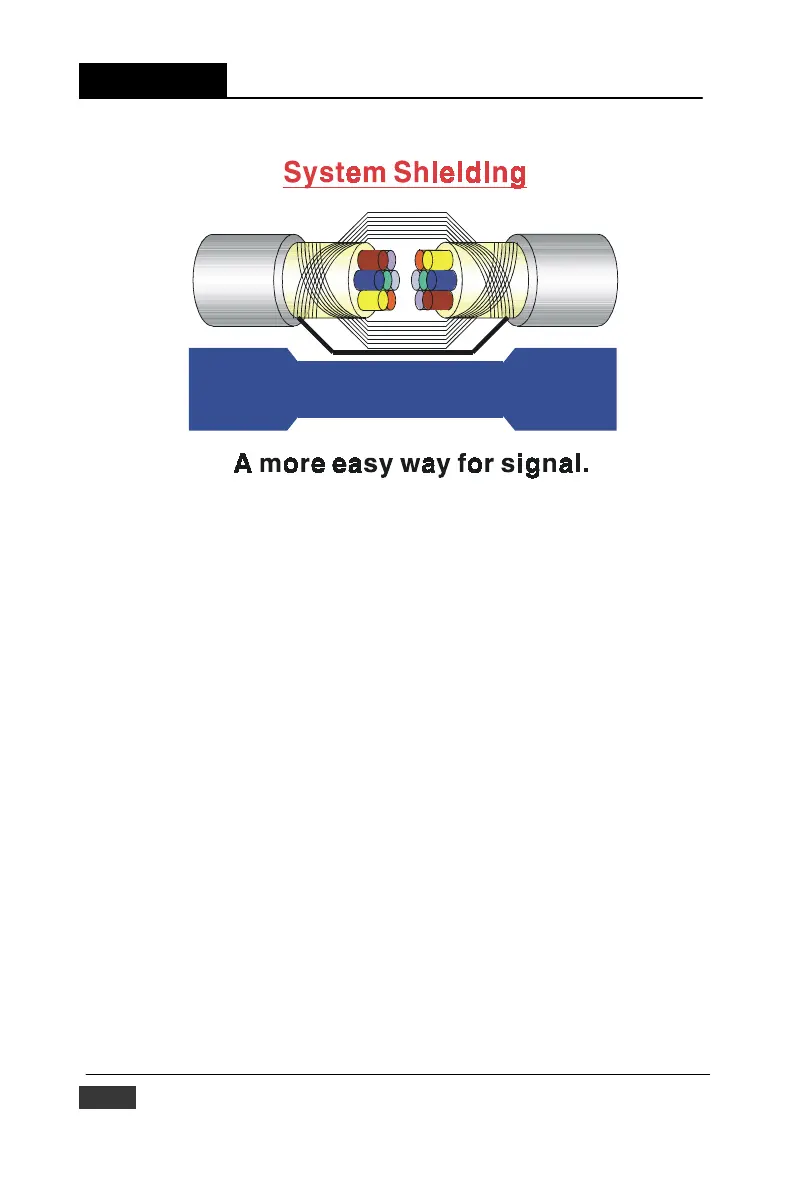

Figure C-14:System Shielding (2)
• Shield connection (2) The previous diagram shows you that the
fill soldering just makes an easier way for the signal.
