Advantech ADAM-5000/TCP Series - Figure 5-11: Current Analog Input Status; Figure 5-10: Operating and Indicating Icons

Chapter 5
System Hardware Configuration

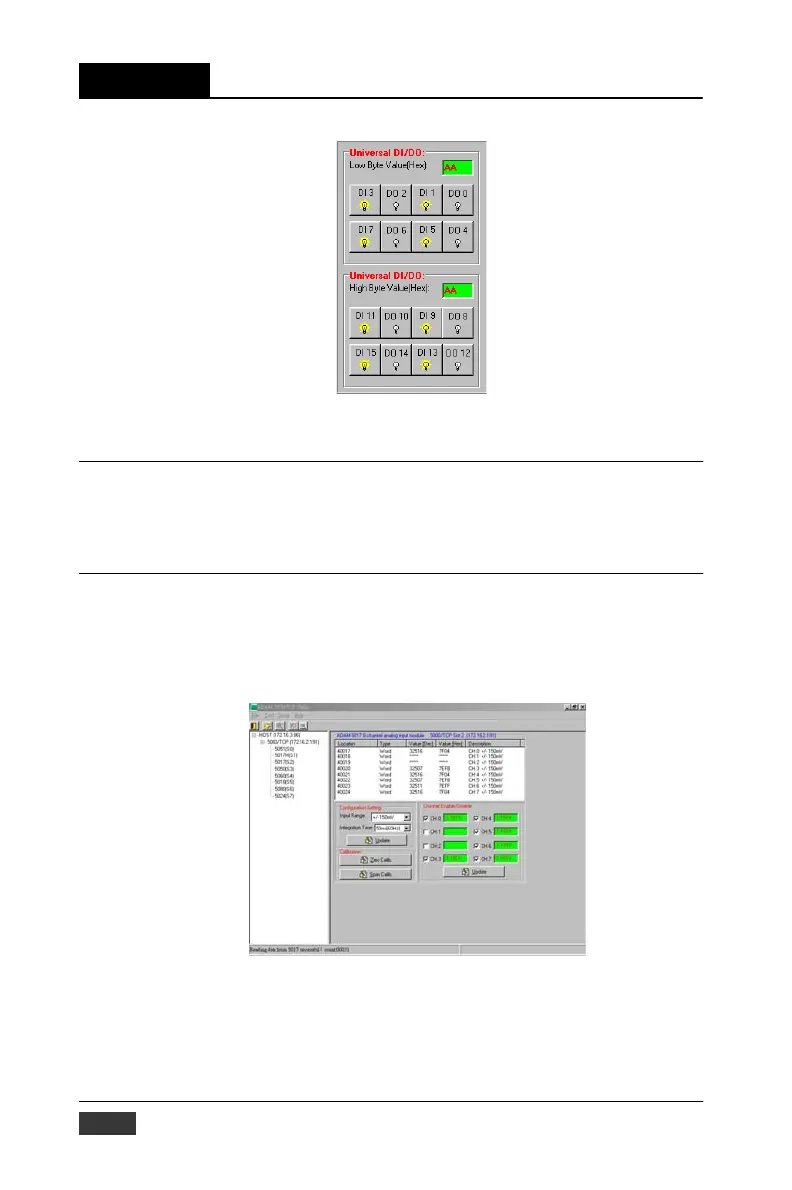

Figure 5-10: Operating and Indicating Icons
Note: 1. The indicator icons are only available to click for digital
output channel.
2. The hexadecimal code will be calculated automatically for any
status.
Analog Input Module
Selecting ADAM-5000 Analog Input Modules includes ADAM-5013/
5017(H)/5018s, users can read following information from the Utility.
Figure 5-11: Current Analog Input Status
Location: Standard Modbus address. (Refer to chapter 3-5 Assigning
address for I/O module)
