User’s Manual
AIMB-240 Series User’s Manual
37

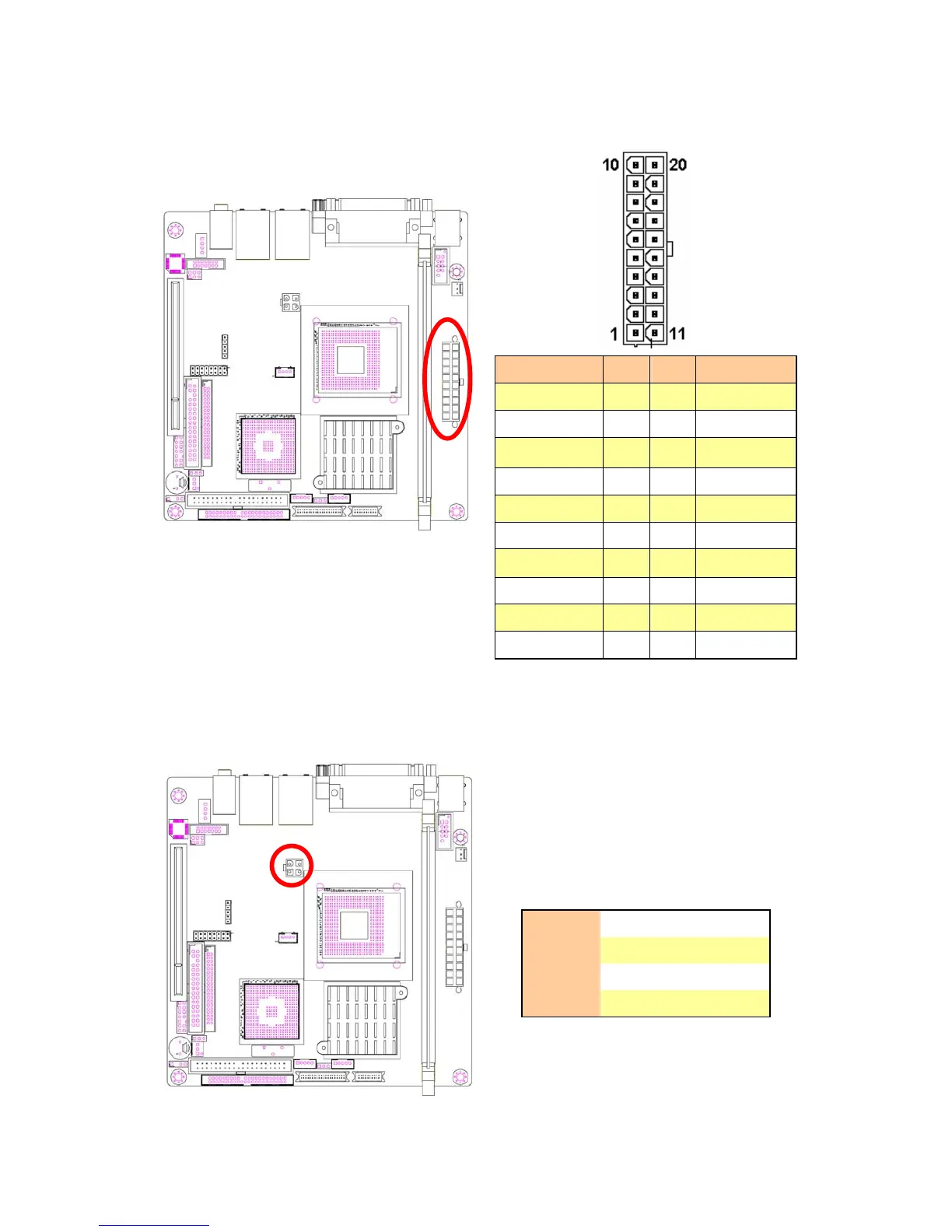

2.4.6 ATX Power Connector (ATXPWR)
Signal PIN PIN Signal
+12V 10 20 +5V
+5VSB 9 19 +5V
PATX_PWRGD 8 18 -5V
GND 7 17 GND
+5V 6 16 GND
GND 5 15 GND
+5V 4 14 ATX_PSON#
GND 3 13 GND
+3V 2 12 -12V
+3V 1 11 +3V
2.4.7 ATX Power Connector (ATX12V)
Pin
1 2
Signal
GND GND
Pin
3 4
Signal
CPU_12V CPU_12V
