AIMB-240 Series
38 AIMB-240 Series User’s Manual

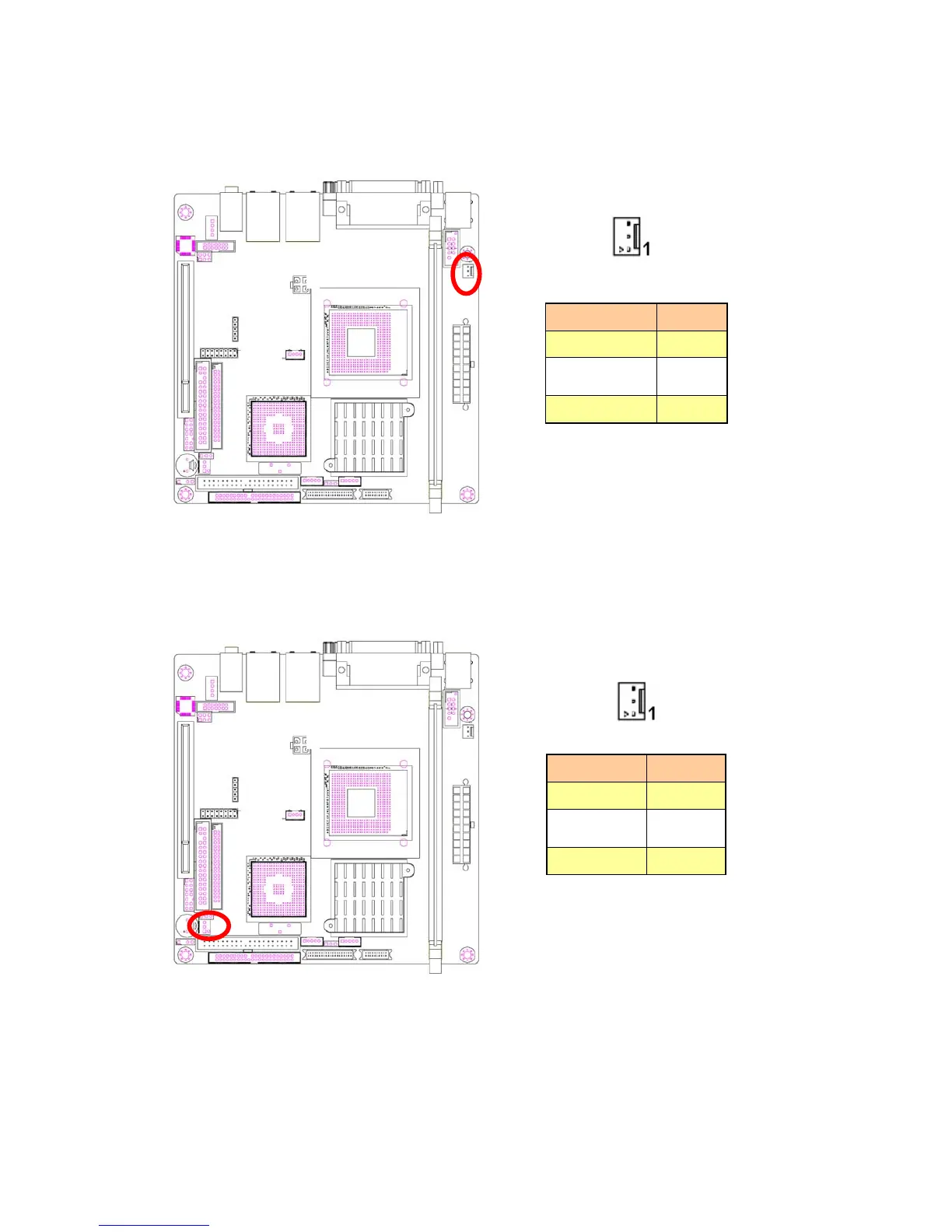

2.4.8 CPU
Fan
Connector
Signal
PIN
GND
3
CPUFANPWR
2
CPUFANIN
1
2.4.9
System Fan Connector
Signal
PIN
GND
3
SYSFANPWR
2
SYSFANIN
1
37
39
Table of Contents
Default Chapter
6
Table of Contents
6
Getting Started
10
Safety Precautions
10
Packing List
10
Document Amendment History
11
Manual Objectives
12
System Specifications
13
Architecture Overview
16
Block Diagram
16
Architecture Overview
17
Block Diagram
17
Intel 852GME and ICH4
18
DRAM Interface (Intel 852GME)
20
PCI Interface
20
IDE Interface (Bus Master Capability and Synchronous DMA Mode )
20
Usb 2.0
21
Realtek TM ALC655 Supports 5.1CH AC97 Audio
21
Chrontel CH7009A TV/DVI Transmitter
23
Ethernet
23
Winbond W83627HF
24
Compact Flash Interface
24
Hardware Configuration
25
Product Overview
26
Installation Procedure
27
Processor Installation
27
Main Memory
30
Jumper
32
Setting Jumpers & Connectors
33
Clear CMOS
33
Serial Port Connector (COM1)
33
Serial Port Header (COM1_1)
34
Serial Port Header RS-232/422/485 Select (COM2/COM2 RS)
35
Serial Port Header (COM 3/4/5/6)
36
ATX Power Connector (ATXPWR)
37
ATX Power Connector (ATX12V)
37
CPU Fan Connector
38
System Fan Connector
38
VGA Connector
39
Parallel Port Connector
40
Audio Connector
40
Ethernet / USB 1 & 2, 3 & 4 Connectors
41
Floppy Connector
41
Primary IDE Connector
42
Secondary IDE Connector
43
LCD Inverter Connector
44
CD-ROM Audio Input Connector
44
Digital Input / Output Connector
45
Front Panel Connector
46
Irda Connector
46
LVDS Connector
47
LVLCPW Header ( Panel Voltage Select)
48
TMDS DVI Connector (JTMDS1)
48
TV out Connector
49
USB Header 5 & 6
49
PS/2 Keyboard & Mouse Connector (KB_MS1)
50
BIOS Setup
51
Starting Setup
52
Using Setup
53
Getting Help
54
In Case of Problems
54
Main Menu
55
Standard CMOS Features
56
Advanced BIOS Features
58
Advanced Chipset Features
62
Integrated Peripherals
66
Power Management Setup
72
Pnp / PCI Configuration
74
PC Health Status
76
Frequency / Voltage Control
77
Load Optimized Defaults
78
Set Password
78
Save & Exit Setup
80
Exit Without Save
81
Drivers Installation
82
Install Driver
83
Appendix A: AWARD BIOS POST Messages
84
AIMB-240 Series
85
Overview
85
Post Beep
85
Error Messages
85
Cmos Battery Has Failed
85
Cmos Checksum Error
85
Disk Boot Failure, Insert System Disk and Press Enter
85
Diskette Drives or Types Mismatch Error - Run Setup
85
Display Switch Is Set Incorrectly
86
Display Type Has Changed Since Last Boot
86
EISA Configuration Checksum Error PLEASE RUN EISA CONFIGURATION UTILITY
86
EISA Configuration Is Not Complete PLEASE RUN EISA CONFIGURATION UTILITY
86
Error Encountered Initializing Hard Drive
86
Error Initializing Hard Disk Controller
86
Floppy Disk Cntrlr Error or no Cntrlr Present
86
Invalid EISA Configuration PLEASE RUN EISA CONFIGURATION UTILITY
87
Keyboard Error or no Keyboard Present
87
Memory Address Error at
87
Memory Parity Error at
87
Memory Size Has Changed Since Last Boot
87
Memory Verify Error at
87
Offending Address Not Found
87
Offending Segment
87
Press a Key to Reboot
88
Press F1 to Disable Nmi, F2 to Reboot
88
Ram Parity Error - Checking for Segment
88
Should be Empty but EISA Board Found PLEASE RUN EISA CONFIGURATION UTILITY
88
Should Have EISA Board but Not Found PLEASE RUN EISA CONFIGURATION UTILITY
88
Slot Not Empty
88
System Halted, (Ctrl-Alt-Del) to Reboot
88
Wrong Board in Slot PLEASE RUN EISA CONFIGURATION UTILITY
89
FLOPPY DISK(S) Fail (80) → Unable to Reset Floppy Subsystem
89
FLOPPY DISK(S) Fail (40) → Floppy Type Dismatch
89
Keyboard Is Locked out - Unlock the Key
89
Keyboard Error or no Keyboard Present
89
Manufacturing POST Loop
89
BIOS ROM Checksum Error - System Halted
89
Post Codes
90
5
