40 AIMB-240 Series User’s Manual

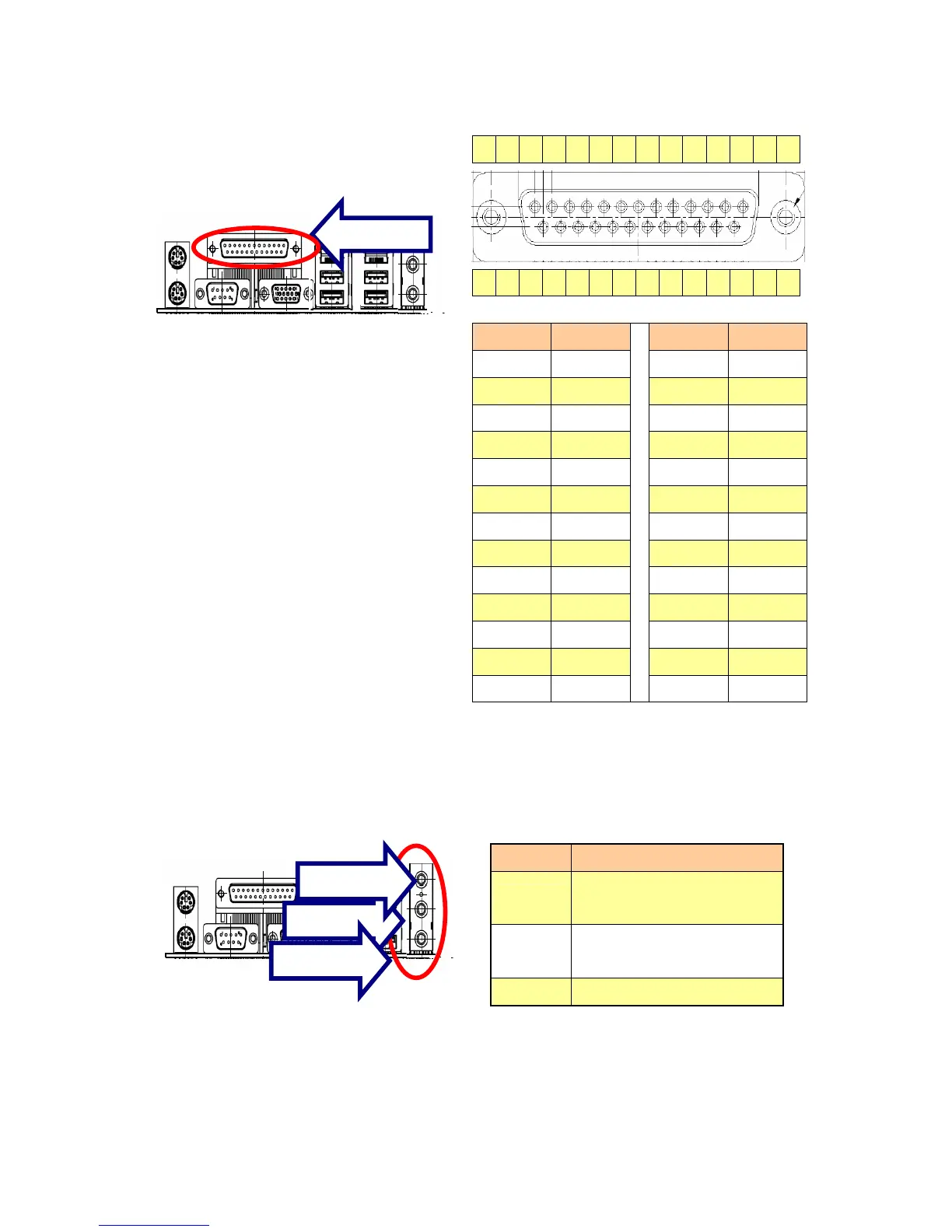

2.4.11 Parallel Port Connector
Pin 13 12 11 10 9 8 7 6 5 4 3 2 1
Pin 25 24 23 22 21 20 19 18 17 16 15 14
Pin Signal Signal Pin
SLCT 13
25 GND PE 12
24 GND BUSY 11
23 GND ACK# 10
22 GND SPD7 9
21 GND SPD6 8
20 GND SPD5 7
19 GND SPD4 6
18 GND SPD3 5
17 SLIN# SPD2 4
16 PINIT# SPD1 3
15 ERROR# SPD0 2
14 AFD# STB# 1
2.4.12 Audio Connector
-
Port Description
Audio-In
Connects a tape player or other
audio sources.
Audio-Out
Connects a headphone or a
speaker.
Microphone Connects a microphone.
-
Audio-Out
Audio-In
Parallel
Microphone
