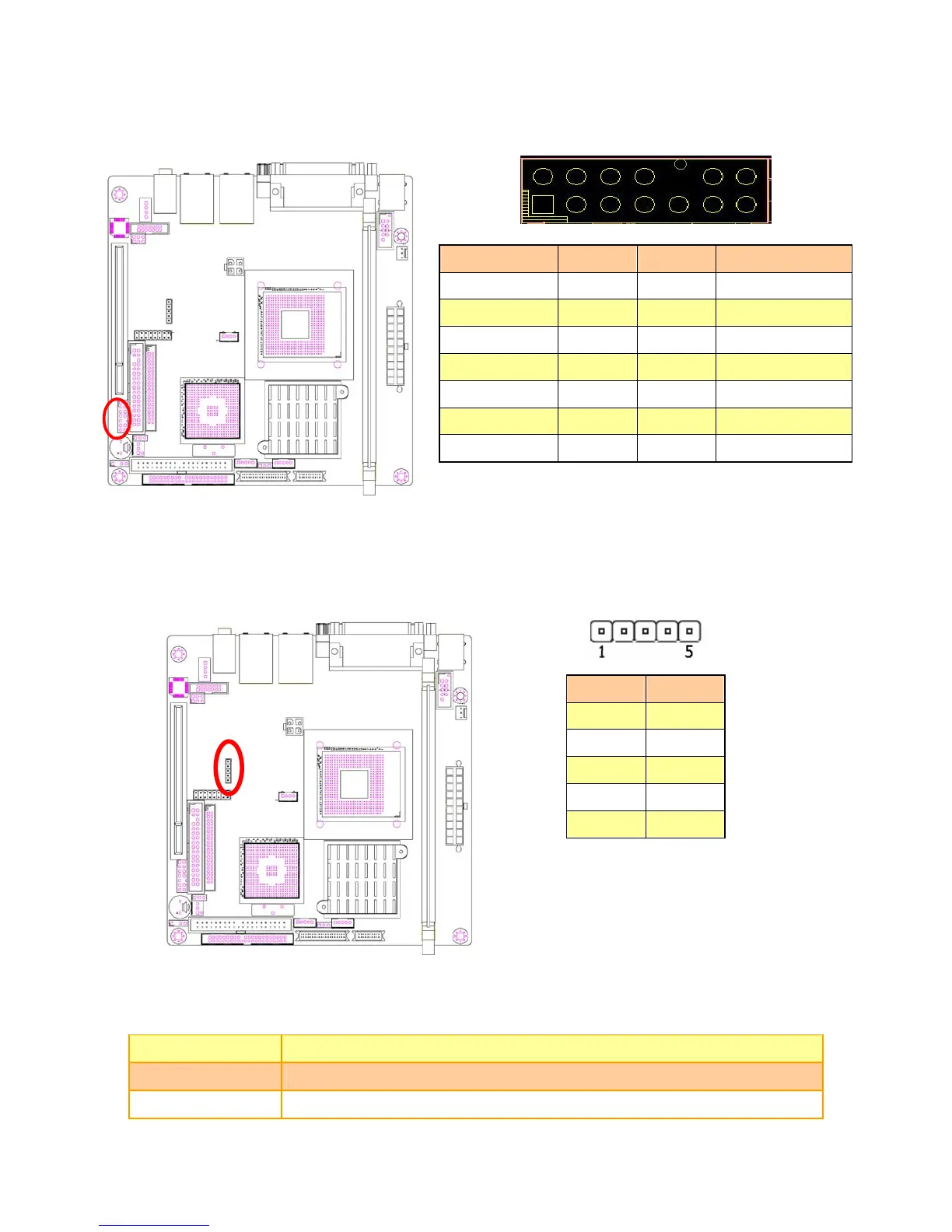

2.4.20 Front Panel Connector
Signal PIN PIN Signal
HDLEDA 1 2 HDLED#
POWER_LED 3 4 GND
SUS_LED 5 6 GND
LAN_ACKLED 7 8 LAN_ACKLED#
STAT_LED 9 10 No Pin
F_PWRBTN# 11 12 PWRBTN
GND 13 14 FPRST#
Pin 11 and Pin 12 are used for power button
2.4.21 IrDA Connector
Signal PIN
+5V 1
CIRRX# 2
IRRX 3
GND 4
IRTX 5
2.4.23.1 Signal Description – IrDA Connecter
Signal Signal Description
IRRX Infrared Receiver input
IRTX Infrared Transmitter output
