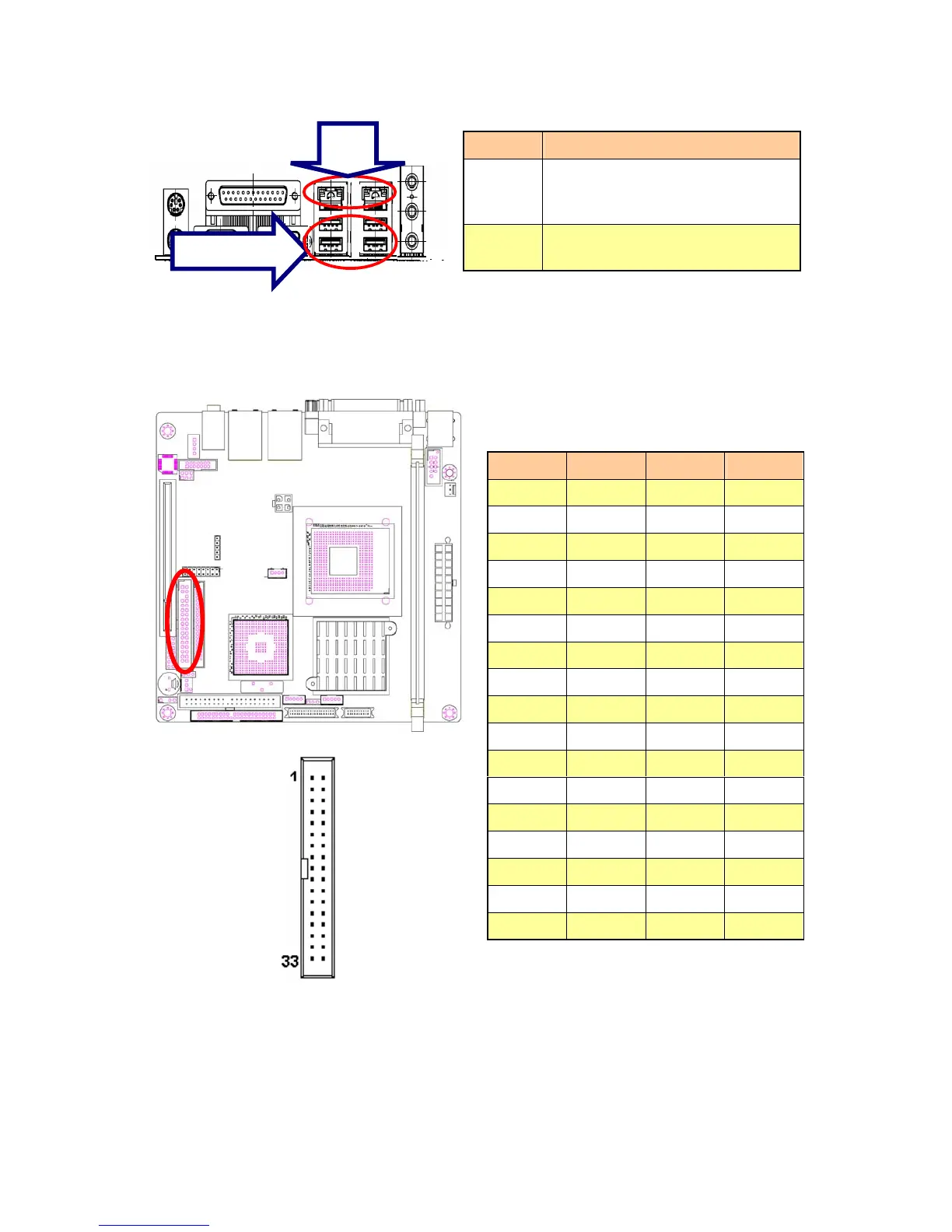

2.4.13 RJ-45 Ethernet / USB 1 & 2, 3 & 4 Connectors
Port Description
RJ-45
A
llows connection to a Local Area
Network (LAN) through a network hub.
USB 2.0 For connecting USB port 1,2,3,4
2.4.14 Floppy Connector
Signal PIN PIN Signal
GND 1 2 DENSEL#
GND 3 4 NC
No pin 5 6 NC
GND 7 8 INDEX#
GND 9 10 MTRA#
GND 11 12 NC
GND 13 14 DRVA#
GND 15 16 NC
GND 17 18 DIR#
GND 19 20 STEP#
GND 21 22 WDATA#
GND 23 24 WGATE#
GND 25 26 TRK0#
GND 27 28 WPT#
GND 29 30 RDATA#
GND 31 32 HDSEL#
GND 33 34 DSKCHG#
RJ
-
45
USB1/2/3/4
