Advantech AIMB-240 Series User Manual

AIMB-240 Series
42 AIMB-240 Series User’s Manual

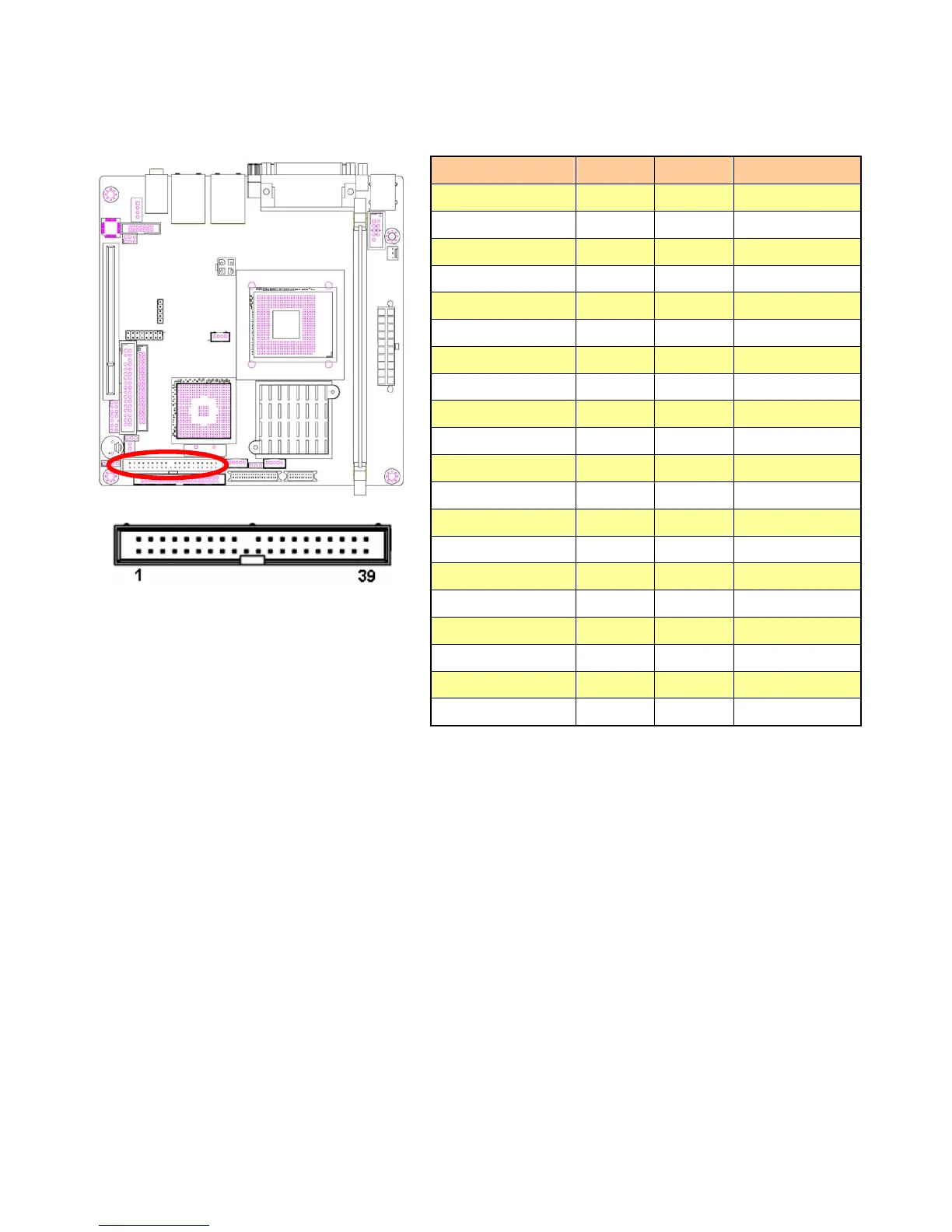

2.4.15 Primary IDE Connector IPRI_IDE)
Signal PIN PIN Signal
RST#_IDE 1 2 GND
PIDE_D7 3 4 PIDE_D8
PIDE_D6 5 6 PIDE_D9
PIDE_D5 7 8 PIDE_D10
PIDE_D4 9 10 PIDE_D11
PIDE_D3 11 12 PIDE_D12
PIDE_D2 13 14 PIDE_D13
PIDE_D1 15 16 PIDE_D14
PIDE_D0 17 18 PIDE_D15
GND 19 20 No pin
PIDE_DDREQ 21 22 GND
PIDE_DIOW# 23 24 GND
PIDE_DIOR# 25 26 GND
PIDE_DIORDY 27 28 GND
PIDE_DDACK# 29 30 GND
PIDE_IRQ14 31 32 NC
PIDE_DA1 33 34 P66DETECT
PIDE_DA0 35 36 PIDE_DA2
PIDE_DCS1# 37 38 PIDE_DCS3#
PIDE_ACT# 39 40 GND
