AIMB-240 Series
44 AIMB-240 Series User’s Manual

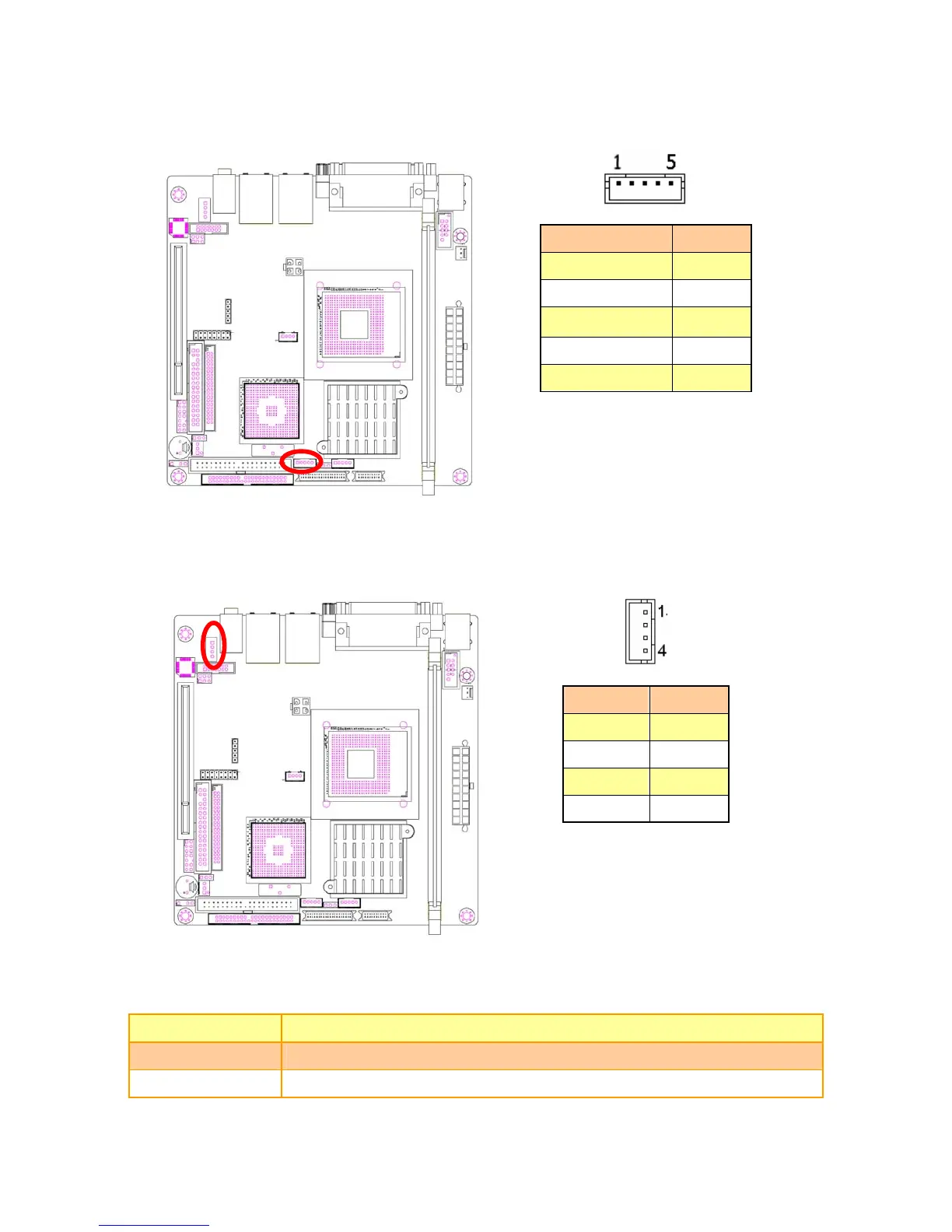

2.4.17 LCD Inverter Connector
Signal PIN
+12V 1
GND 2
LVDS_BKLTEN 3
VBR 4
+5V 5
2.4.18 CD-ROM Audio Input Connector
Signal PIN
CD_IN_R 1
CDGND 2
CDGND 3
CD_IN_L 4
2.4.18.1 Signal Description – CD-ROM Audio Input Connector
Signal Signal Description
CD_IN_R
Right CD-IN signal
CD_IN_L
Left CD-IN signal
