48 AIMB-240 Series User’s Manual

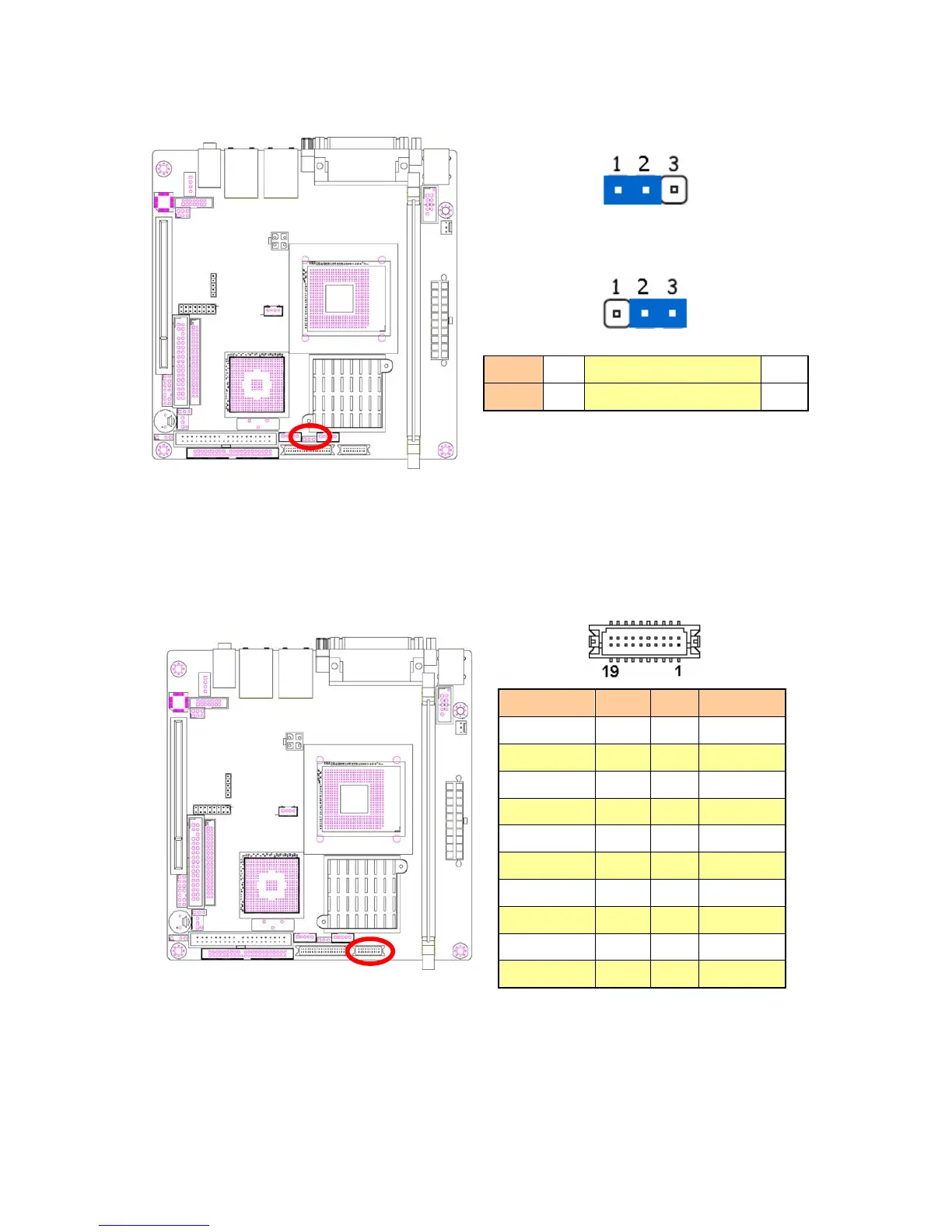

2.4.23 LVLCPW Header ( Panel Voltage Select)
* Default
5 V*
3.3 V
Pin 1 2 3
Define +5V VDD_LVDS_PANEL_SEL +3V
2.4.24 TMDS DVI Connector (DVI)
Signal PIN PIN Signal
VCC_DVI 2 1 TMDS_C0#
TMDS_CK# 4 3 TMDS_C0
TMDS_CK 6 5 GND
GND 8 7 TMDS_C1#
MDVI_CLK 10 9 TMDS_C1
MDVI_DATA 12 11 GND
HP_DET 14 13 TMDS_C2#
MI2C_DATA 16 15 TMDS_C2
MI2C_CLK 18 17 VCC_DVI
NC 20 19 NC
