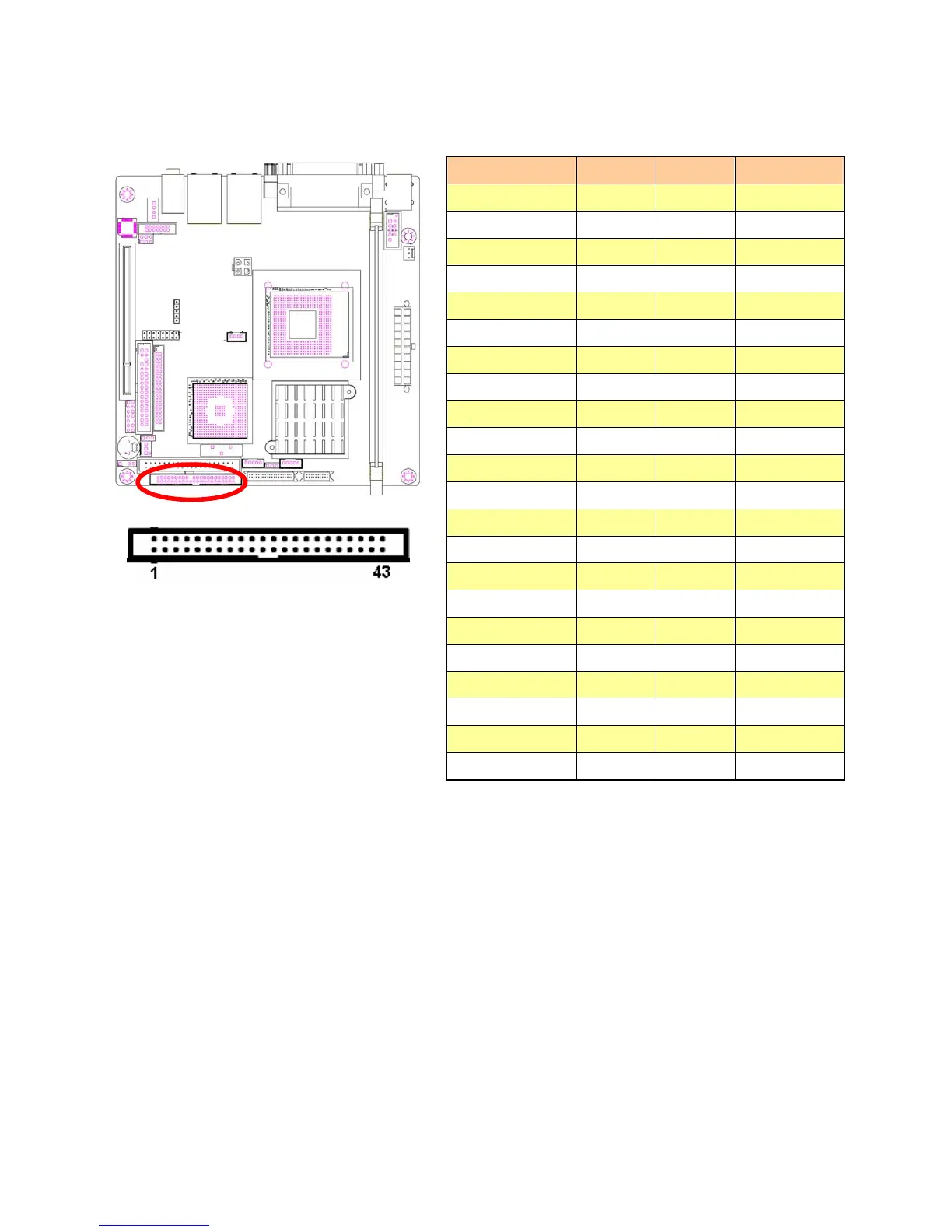

2.4.16 Secondary IDE Connector (SEC_IDE)
Signal PIN PIN Signal
RST#_IDE 1 2 GND
SIDE_D7 3 4 SIDE_D8
SIDE_D6 5 6 SIDE_D9
SIDE_D5 7 8 SIDE_D10
SIDE_D4 9 10 SIDE_D11
SIDE_D3 11 12 SIDE_D12
SIDE_D2 13 14 SIDE_D13
SIDE_D1 15 16 SIDE_D14
SIDE_D0 17 18 SIDE_D15
GND 19 20 Np pin
SIDE_DDREQ 21 22 GND
SIDE_DIOW# 23 24 GND
SIDE_DIOR# 25 26 GND
SIDE_DIORDY 27 28 GND
SIDE_DDACK# 29 30 GND
SIDE_IRQ15 31 32 NC
SIDE_DA1 33 34 S66DETECT
SIDE_DA0 35 36 SIDE_DA2
SIDE_DCS1# 37 38 SIDE_DCS3#
SIDE_ACT# 39 40 GND
+5V 41 42 +5V
GND 43 44 NC
Due to IDE compatibility issue, do not use CF and IDE device on secondary IDE channel at
the same time.
