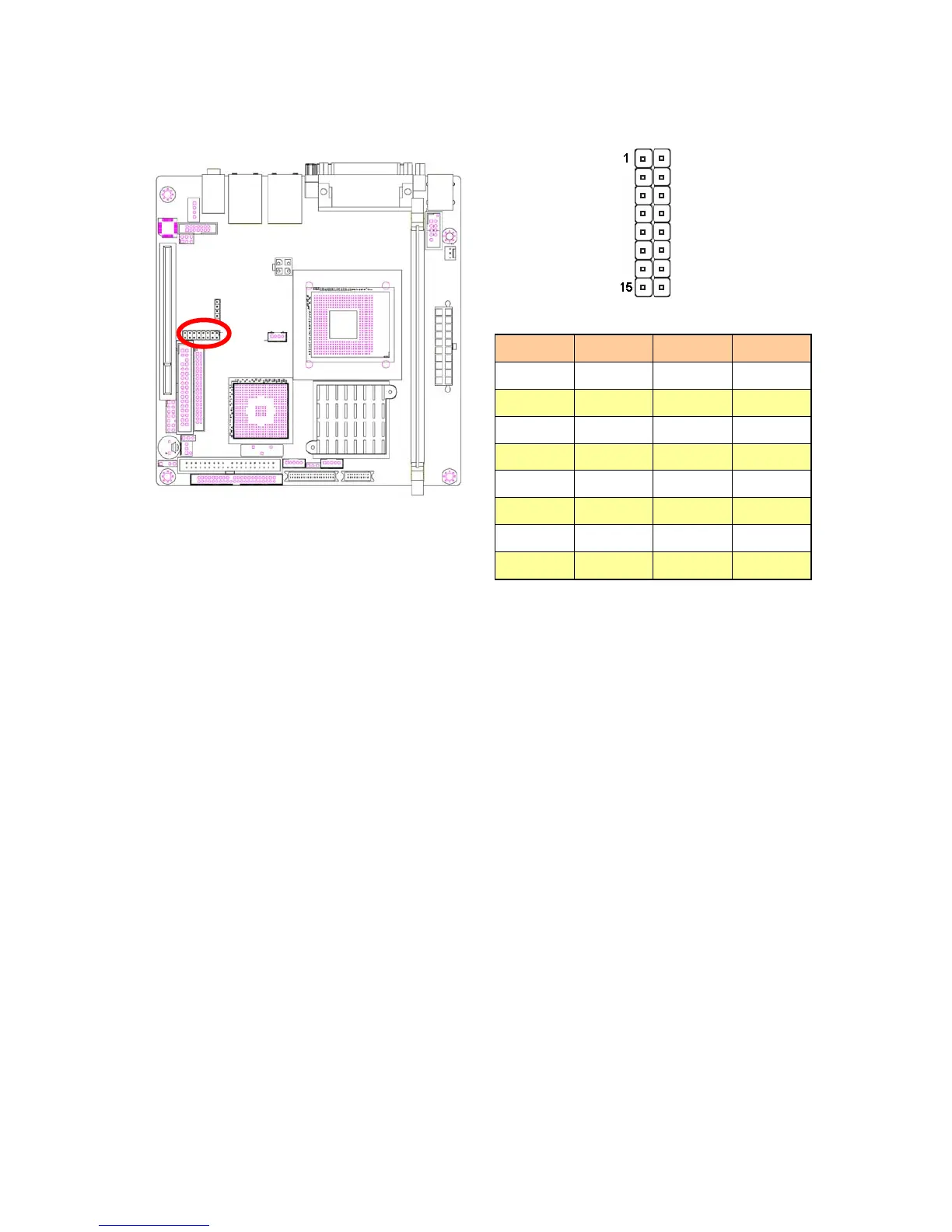

2.4.19 Digital Input / Output Connector
Signal PIN PIN Signal
DIOIN0 1 2 +5V
DIOIN1 3 4 DIOOT0
DIOIN2 5 6 GNDDIO
DIOIN3 7 8 DIOOT1
GND 9 10 +12V
NC 11 12 NC
DIOOUT3 13 14 GNDDIO
DIOOUT2 15 16 +12V
