User’s Manual
AIMB-240 Series User’s Manual
49

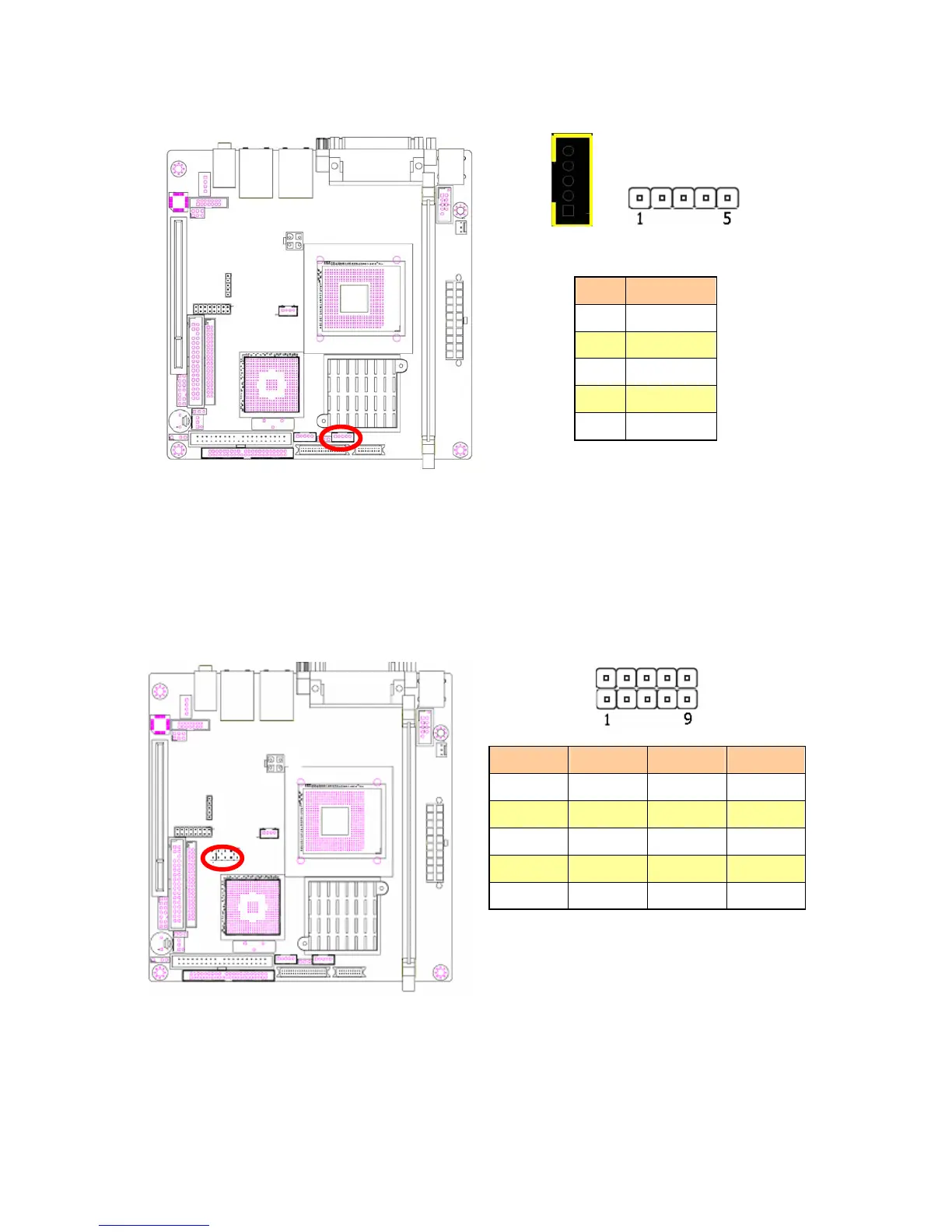

2.4.25 TV Out Connector
PIN Signal
1 Y_OUT
2
C_OUT
3
TAGND
4
TAGND
5
CVBS_OUT
2.4.26 USB header 5 & 6
Signal PIN PIN Signal
SBV45 1 2 SBV45
LP5- 3 4 LP4-
LP5+ 5 6 LP4+
GND 7 8 GND
No Pin 9 10 NC
