AIMB-240 Series User’s Manual
47

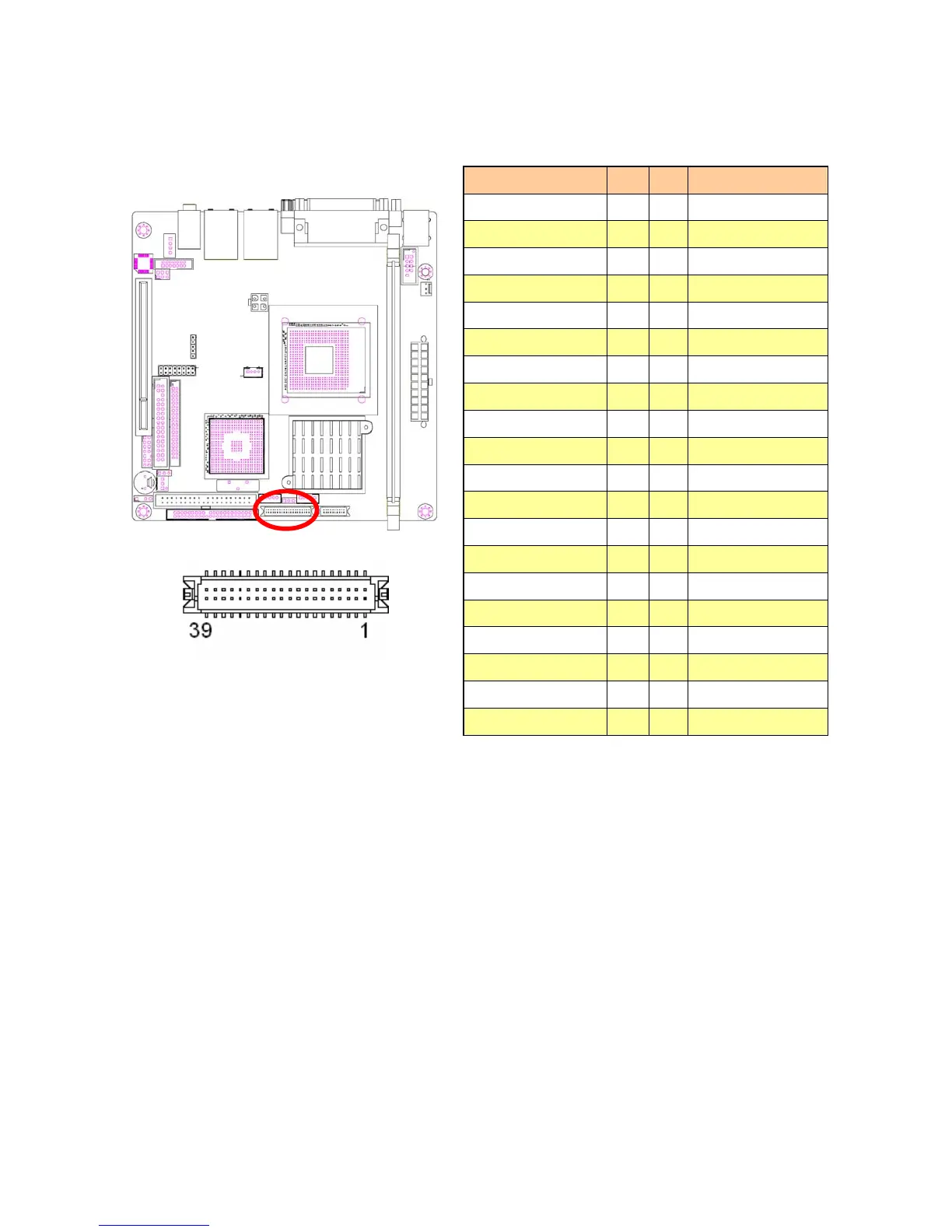

2.4.22 LVDS Connector
Signal PIN PIN Signal
VDD_LVDS_PANEL 2 1 VDD_LVDS_PANEL
GND 4 3 GND
VDD_LVDS_PANEL 6 5 VDD_LVDS_PANEL
LVDS_YBM0 8 7 LVDS_YAM0
LVDS_YBP0 10 9 LVDS_YAP0
GND 12 11 GND
LVDS_YBM1 14 13 LVDS_YAM1
LVDS_YBP1 16 15 LVDS_YAP1
GND 18 17 GND
LVDS_YBM2 20 19 LVDS_YAM2
LVDS_YBP2 22 21 LVDS_YAP2
GND 24 23 GND
LVDS_CLKBM 26 25 LVDS_CLKAM
LVDS_CLKBP 28 27 LVDS_CLKAP
GND 30 29 GND
LVDS_DDCPDATA 32 31 LVDS_DDCPCLK
GND 34 33 GND
LVDS_YBM3 36 35 LVDS_YAM3
LVDS_YBP3 38 37 LVDS_YAP3
VCON 40 39 NC
