AIMB-780 User
Manual

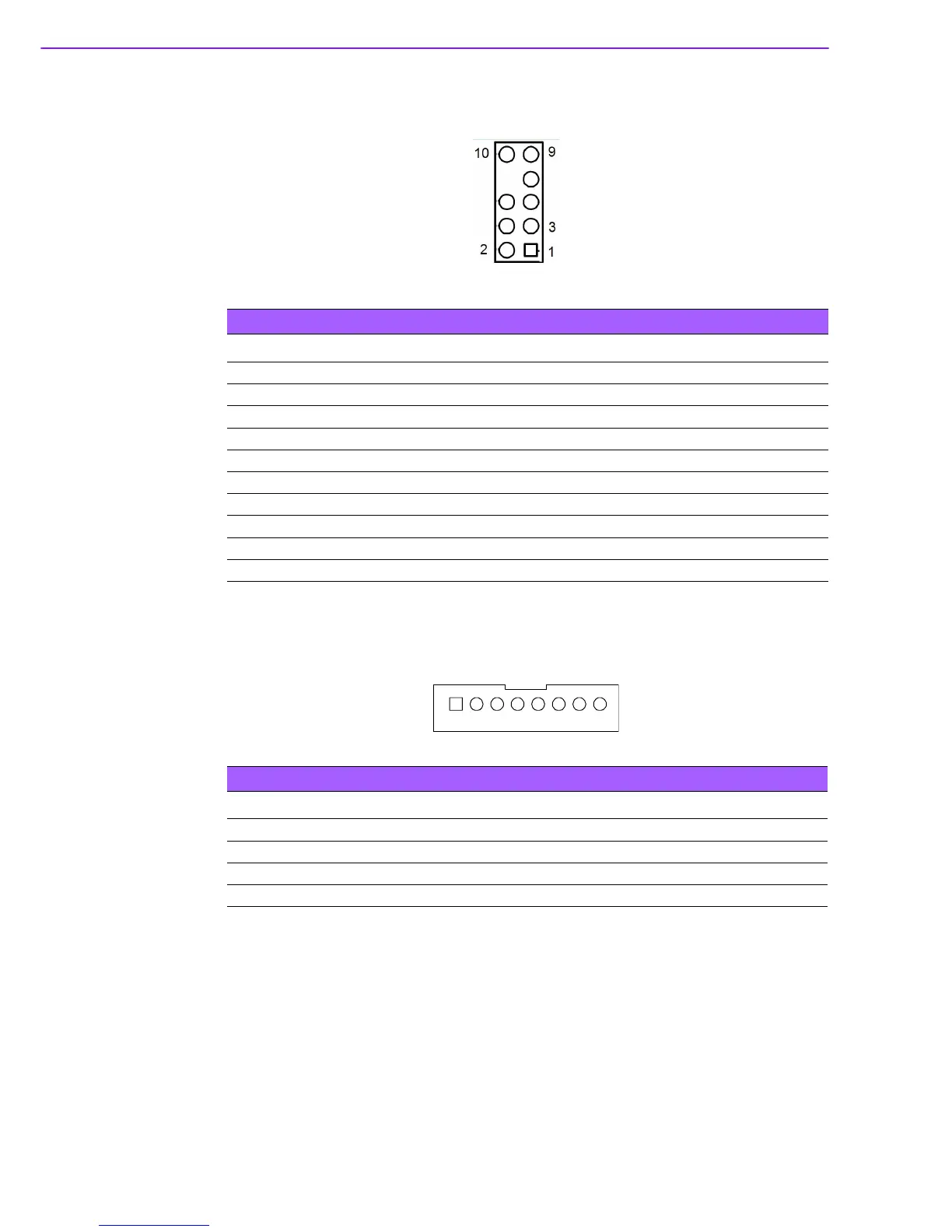

94
B.19
Front Panel Audio Connector (FP
AUD1)
B.20
8-pin Alarm Board Connector (VOL
T1)
T
able B.19: Front Panel
Audio Connector (FP
AUD1)
Pin
Signal
1
MIC2_L
2
AGND
3 MIC2_R
4 PRESENSE
5
LIN2_R
6 MIC_DEC
7 FIO_JD
8N
/
A
9 LIN2_L
10 LINEOUT2_DEC
T
able B.20: 8-pin Alarm
Board Connector (VOL
T1)
Pin
Signal
Pin
Signal
1
5VSB
5
VCC
2
GND
6
VCC3
3G
N
D
7
-
1
2
V
4
-5V
8
+12V
1 8
103
105
Table of Contents
Default Chapter
4
Declaration of Conformity
4
Table of Contents
7
Chapter 1 Hardware Configuration
11
Introduction
12
Features
13
Specifications
14
System
14
Memory
14
Input/Output
15
Graphics
15
Ethernet LAN
15
Industrial Features
15
Mechanical and Environmental Specifications
15
Jumpers and Connectors
16
Table 1.1: Jumper List
16
Table 1.2: Connectors
16
Board Layout: Jumper and Connector Locations
18
Figure 1.1 Jumper and Connector Locations
18
Figure 1.2 I/O Connectors
18
AIMB-780 Block Diagram
19
Figure 1.3 AIMB-780 Block Diagram
19
Safety Precautions
20
Jumper Settings
21
How to Set Jumpers
21
CMOS Clear (JCMOS1)
21
Table 1.3: JCMOS1
21
Watchdog Timer Output (JWDT1)
22
Table 1.4: Watchdog Timer Output (JWDT1)
22
Table 1.5: ATX/AT Mode Selector (PSON1)
22
Table 1.6: COM3 RS-232/422/485 Mode Selector (JSETCOM3
22
System Memory
23
Memory Installation Procedures
23
Cache Memory
23
Processor Installation
23
PCI Bus Routing Table
23
Chapter 2 Connecting Peripherals
25
Introduction
26
Floppy Drive Connector (FDD1)
26
Parallel Port (LPT1)
27
USB Ports (LAN1_USB12, LAN2_USB3/4, USB5/6, USB7/8, USB9/10, USB11/12 & USB13/14)
28
VGA Connector and DVI-D Connector (VGA1+DVI1)
29
Serial Ports (COM1, COM2, COM3 & COM4)
30
PS/2 Keyboard and Mouse Connector (KBMS1)
31
External Keyboard & Mouse (KBMS2)
32
CPU Fan Connector (CPUFAN1)
33
System FAN Connector (SYSFAN1 and SYSFAN2)
34
Front Panel Connectors (JFP1, JFP2 & JFP3)
35
Power LED and Keyboard Lock (JFP3)
35
Table 2.1: PS/2 or ATX Power Supply LED Status
35
External Speaker (JFP2 Pins 1, 4, 7 & 10)
35
HDD LED Connector (JFP2 Pins 2 & 5)
36
ATX Soft Power Switch (JFP1 Pins 3 & 6)
36
Reset Connector (JFP1 Pins 9 & 12)
36
Line Out, MIC in Connector (AUDIO1)
36
8-Pin Alarm Board Connector (VOLT1)
37
Case Open Connector (JCASE1)
38
Front Panel LAN Indicator Connector (LAN_LED1)
39
Table 2.2: Front Panel LAN Indicator Connector
39
Serial ATA Interface (SATA1, SATA2, SATA3, SATA4, SATA5 & SATA6)
40
PCI Slots (PCI 1 ~ PCI 4)
41
Pcie X16 Expansion Slot (PCIEX16_1)
42
Pciex4_1
43
Pciex1_1
44
Auxiliary 4-Pin Power Connector (ATX12V1)
45
SPI Flash Connector(SPI_CN1)
45
BIOS Operation
47
Chapter 3 BIOS Operation
47
Figure 3.1 Main Setup Screen
48
Introduction
48
Main Menu
49
Figure 3.2 Main Setup Screen
49
System Time / System Date
49
Advanced BIOS Features Setup
50
Figure 3.3 Advanced BIOS Features Setup Screen
50
CPU Configuration
51
Figure 3.4 CPU Configuration Setting (1)
51
Figure 3.5 CPU Configuration Setting (2)
51
IDE Configuration
53
Figure 3.6 IDE Configuration
53
Floppy Configuration
54
Figure 3.7 Floppy Configuration
54
Super I/O Configuration
55
Figure 3.8 Super I/O Configuration
55
Hardware Health Configuration
56
Figure 3.9 Hardware Health Configuration
56
ACPI Settings
57
Figure 3.10ACPI Settings
57
General ACPI Configuration
58
Figure 3.11General ACPI Configuration
58
Chipset ACPI Configuration
59
Figure 3.12Chipset ACPI Configuration
59
AHCI Configurtion
60
Figure 3.13AHCI Configuration
60
ASF Configuration
61
Figure 3.14ASF Configuration
61
MPS Configuration
62
Figure 3.15MPS Configuration
62
Remote Access Configuration
63
Figure 3.16Remote Access Configuration
63
Trusted Computing (Optional)
64
Figure 3.17Trusted Computing Configuration
64
USB Configuration
65
Figure 3.18USB Configuration
65
Advanced Pci/Pnp Settings
66
Figure 3.19PCI/PNP Setup (Top)
66
Boot Settings
67
Figure 3.20Boot Setup Utility
67
Figure 3.21Boot Setting Configuration
67
Security Setting
68
Figure 3.22Password Configuration
68
Advanced Chipset Settings
69
Figure 3.23Advanced Chipset Settings
69
North Bridge Chipset Configuration
70
Figure 3.24 North Bridge Configuration
70
South Bridge Chipset Configuration
71
Figure 3.25South Bridge Chipset Configuration
71
Intel AMT Configuration
72
Figure 3.26Intel AMT Configuration
72
Intel VT-D Configuration
73
Figure 3.27Intel VT-D Configuration
73
ME Subsystem Configuration
74
Figure 3.28ME Subsystem Configuration
74
VE Subsystem Configuration
75
Figure 3.29VE Subsystem Configuration
75
Exit Option
76
Figure 3.30Exit Option
76
Chapter 4 Chipset Software Installation Utility
79
Before You Begin
80
Introduction
80
Windows XP / Windows 7 Driver Setup
81
Chapter 5 VGA Setup
83
Introduction
84
Windows Xp/Windows 7 Driver Setup
84
Chapter 6 LAN Configuration
85
Introduction
86
Features
86
Installation
86
Win XP /Win 7 Driver Setup (LAN)
86
Appendix A Programming the Watchdog Timer
87
Watchdog Timer Overview
88
Programming the Watchdog Timer
88
Example Programs
90
Table A.1: Watchdog Timer Registers
90
A.2.1 Example Programs
90
Appendix B I/O Pin Assignments
95
Floppy Drive Connector (FDD1)
96
Table B.1: Floppy Drive Connector (FDD1)
96
Parallel Port (LPT1)
97
USB Header (USB56, USB78, USB910, USB1112 & USB1314)
97
B.3 USB Header (USB56, USB78, USB910, USB1112 & USB1314)
97
Table B.2: Parallel Port (LPT1)
97
Table B.3: USB Header
97
VGA Connector (VGA1)
98
Interface (COM3 & COM4)
98
Table B.4: VGA Connector (VGA1)
98
B.5 RS-232 Interface (COM3 & COM4)
98
Table B.5: RS-232 Interface (COM1)
98
PS/2 Keyboard and Mouse Connector (KBMS1)
99
Table B.6: Keyboard and Mouse Connector (KBMS1)
99
External Keyboard Connector (KBMS2)
99
Table B.7: External Keyboard Connector (KBMS2)
99
Infrared (IR) Connector (JIR1)
100
Table B.8: Infrared Connector (JIR1)
100
Cpu/System Fan Power Connector (SYSFAN1/SYSFAN2)
100
Table B.9: Fan Power Connector (SYSFAN1/CHAFAN1)
100
Power LED and Keyboard Lock (JFP3)
100
Table B.10:Power LED and Keyboard Lock (JFP3)
100
External Speaker Connector (JFP2)
101
Table B.11:External Speaker Connector (JFP2)
101
Reset Connector (JFP1)
101
Table B.12:Reset Connector (JFP1)
101
HDD LED Connector (JFP2)
101
Table B.13:HDD LED Connector (JFP2)
101
ATX Soft Power Switch (JFP1)
101
Table B.14:ATX Soft Power Switch (JFP1)
102
H/W Monitor Alarm (JOBS1)
102
Table B.15:H/W Monitor Alarm (JOBS1)
102
SM Bus Connector (JFP2)
102
Table B.16:SM Bus Connector (JFP2)
102
USB/LAN Ports (LAN1_USB12 and LAN2_USB34)
103
B.17 USB/LAN Ports (LAN1_USB12 and LAN2_USB34)
103
Table B.17:USB Port
103
Table B.18:Giga LAN 10/100/1000 Base-T RJ-45 Port
103
Line Out, MIC in Connector (AUDIO1)
103
Front Panel Audio Connector (FPAUD1)
104
Table B.19:Front Panel Audio Connector (FPAUD1)
104
8-Pin Alarm Board Connector (VOLT1)
104
Table B.20:8-Pin Alarm Board Connector (VOLT1)
104
Case Open Connector (JCASE1)
105
Front Panel LAN LED Connector (LAN_LED1)
105
B.22 Front Panel LAN LED Connector (LAN_LED1)
105
Table B.21:Case Open Connector (JCASE1)
105
Table B.22:LAN LED Connector (LANLED1)
105
SPI_CN1: SPI Fresh Card Pin Connector
105
Table B.23:SPI_CN1:SPI Fresh Card Pin Connector
105
System I/O Ports
106
B.24 System I/O Ports
106
Table B.24:System I/O Ports
106
DMA Channel Assignments
106
Table B.25:DMA Channel Assignments
106
Interrupt Assignments
107
B.26 Interrupt Assignments
107
Table B.26:Interrupt Assignments
107
1St MB Memory Map
107
Table B.27:1St MB Memory Map
107
