Advantech AIMB-780 - Security Setting; Figure 3.22 Password Configuration

AIMB-780 User Manual 58
Quick Boot
This item allows BIOS to skip certain tests while booting. This will decrease the time
needed to boot the system.
Quiet Boot
If this option is set to Disabled, the BIOS displays normal POST messages. If
Enabled, an OEM Logo is shown instead of POST messages.
AddOn ROM Display Mode
Set display mode for option ROM.
Bootup Num-Lock
Select the Power-on state for Numlock.
PS/2 Mouse Support
Select support for PS/2 Mouse.
Wait For ‘F1’ If Error
Wait for the F1 key to be pressed if an error occurs.
Hit ‘DEL’ Message Display
Displays “Press DEL to run Setup” in POST.
Interrupt 19 Capture
Some add-on cards' option ROMs need Interrupt 19, this is to enable or disable sup-
porting this kind of add-on cards.
3.7 Security Setting

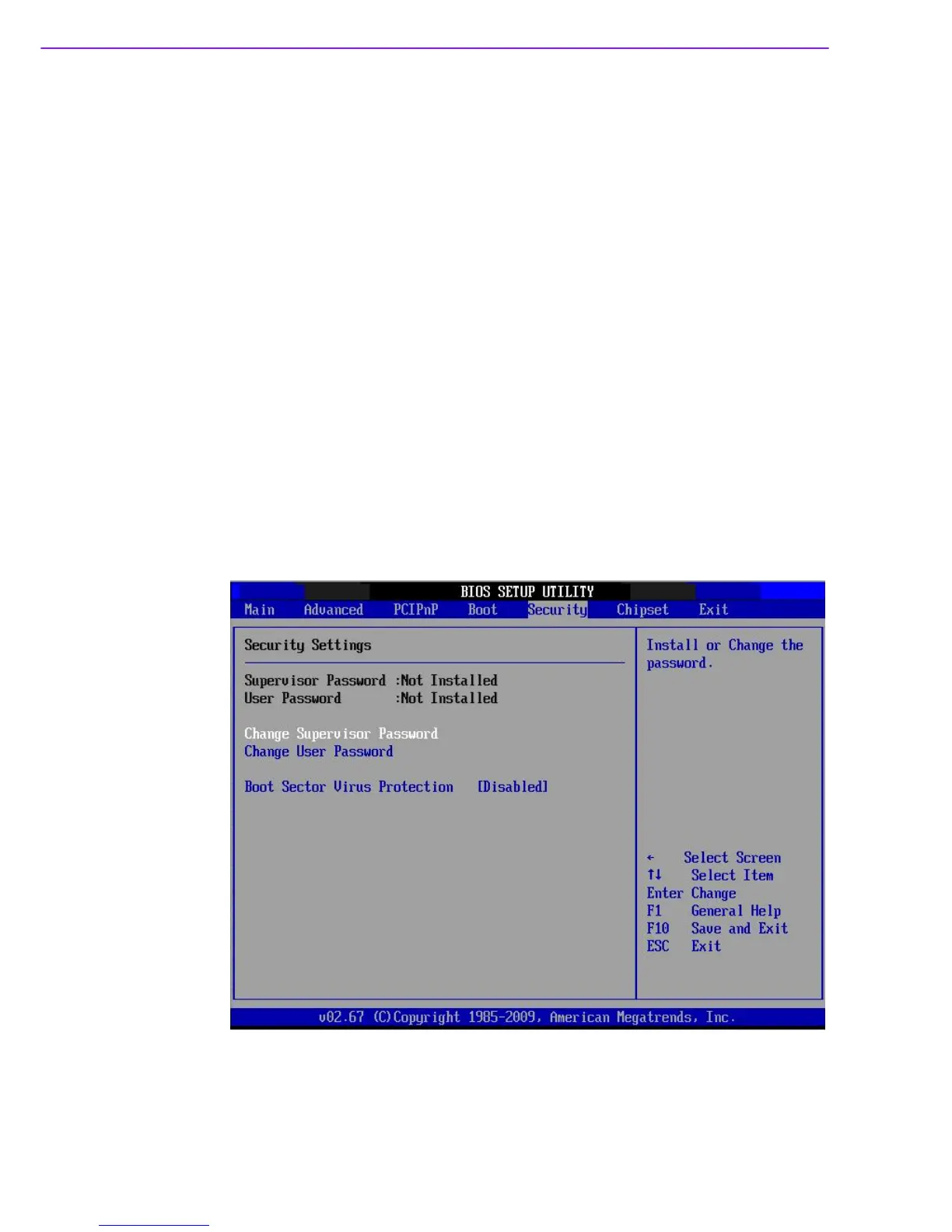

Figure 3.22 Password Configuration
