AIMB-780 User Manual 46
3.3.5 Hardware Health Configuration

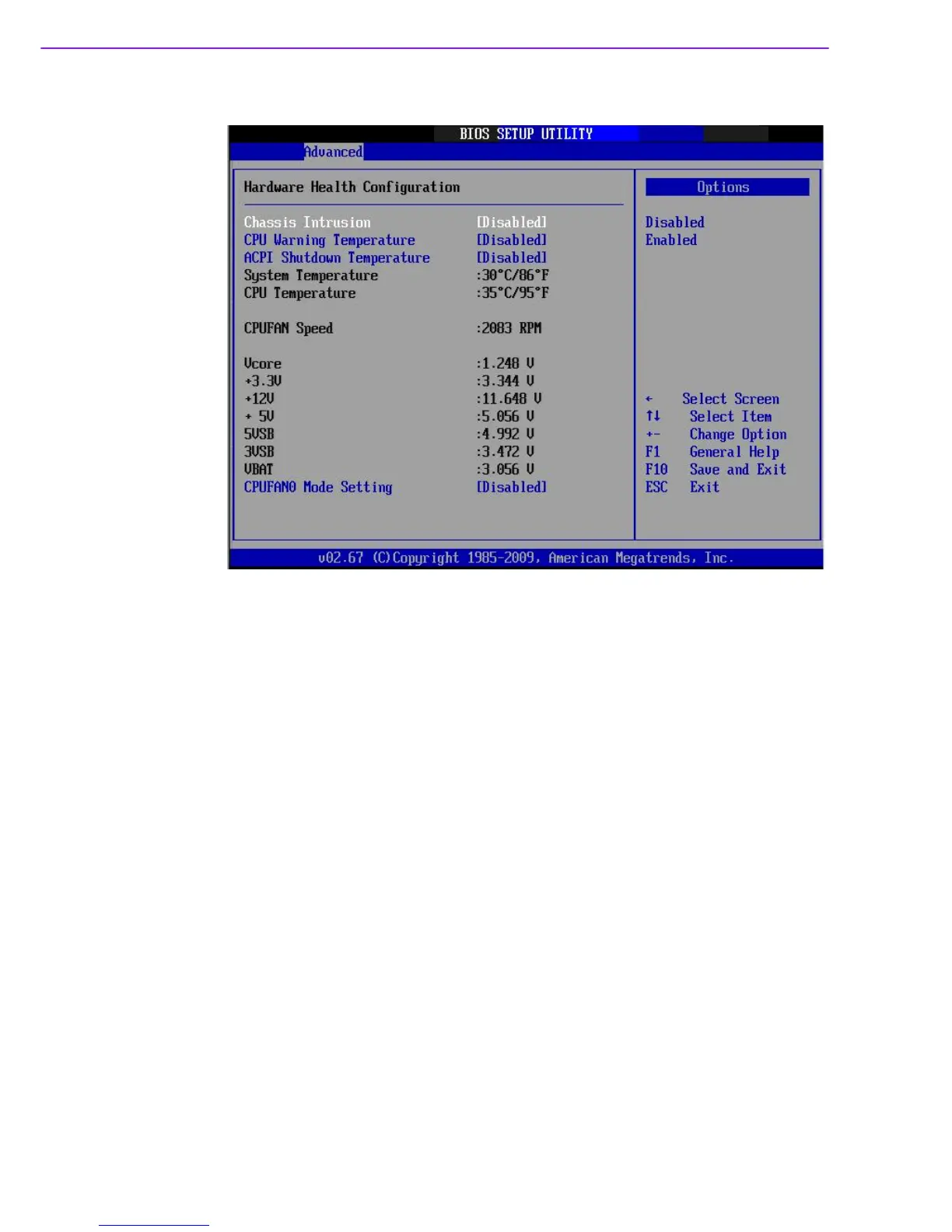

Figure 3.9 Hardware health configuration
Chassis Intrusion
Enable/Disable the Chassis Intrusion monitoring function. When the case is opened,
the buzzer beeps.
CPU Warning Temperature
Use this to set the CPU warning temperature threshold. When the system reaches
the warning temperature, the buzzer will beep.
ACPI Shutdown Temperature
The system will shut down automatically under OS with ACPI mode, when the CPU
temperature is over the selected setting.
System Temperature
The onboard hardware monitor automatically detects and displays the system tem-
peratures.
CPU Temperature
The onboard hardware monitor automatically detects and displays the CPU tempera-
tures.
CPUFAN Speed
Show CPU FAN speed [xxxxRPM].
CPUFAN0 Mode Setting
To enable or disable the Smart fan control feature.
