3.8.1 North Bridge Chipset Configuration

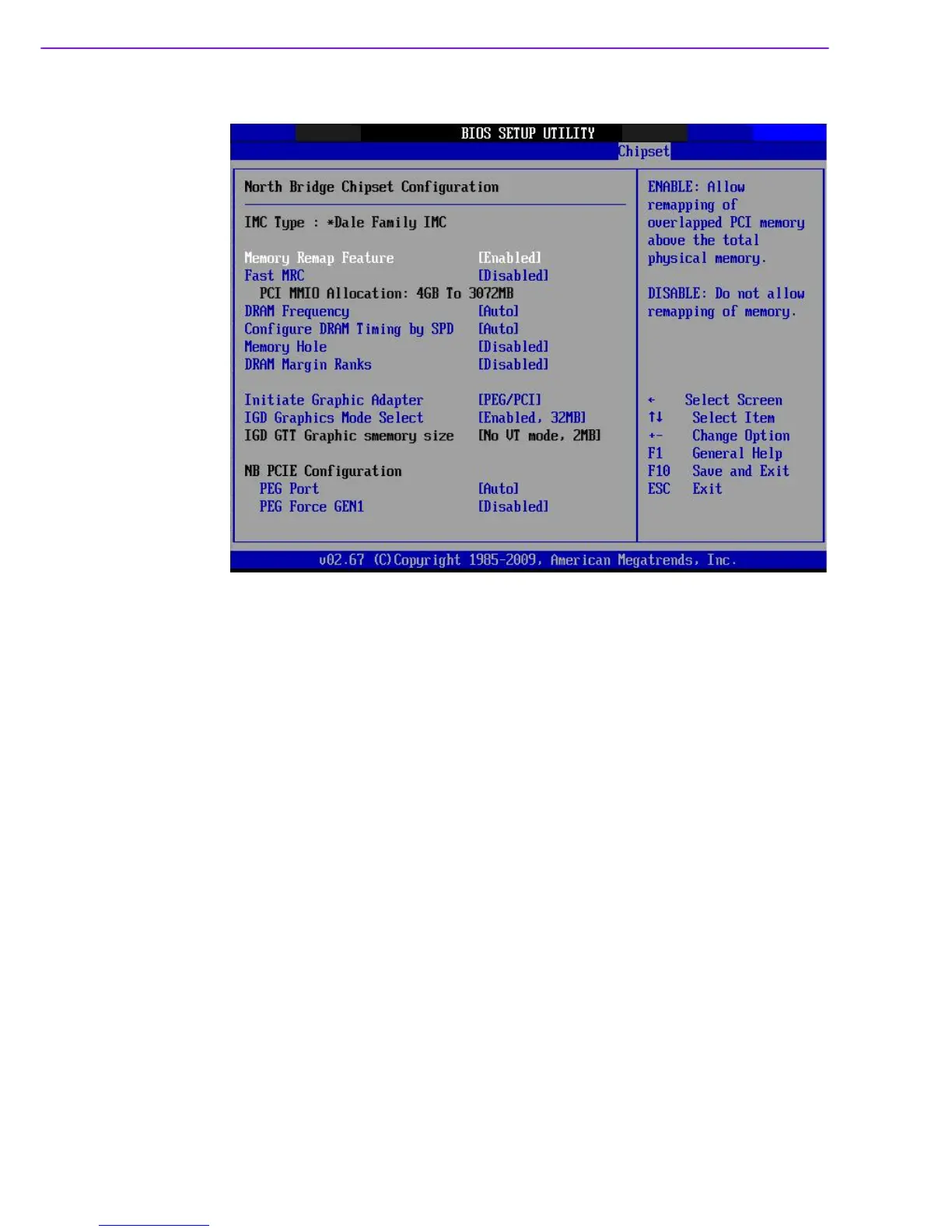

Figure 3.24 North Bridge Configuration
Memory Remap Feature
Enabling this feature allows the system to use memory capacity larger than 4GB, dis-
abling this limits system memory capacity no more than 4GB.
Fast MRC (This item would be offered in QG2 SKU)
Enabling this feature allows MRC directly restores memory data from NVRAM with-
out hardware training while cold booting. Disabling this will make memory detection
and hardware training necessary while cold booting.
DRAM Frequency
This setting allows the user to select DRAM frequency.
Configure DRAM Timing by SPD
When enabled, DRAM will operate with a frequency set by SPD, disabling this will
allow the user to manually set DRAM frequency.
Memory Hole
This setting allows the user to reserve the 1MB of memory required by some legacy
add-on cards.
DRAM Margin Ranks
This allows the user to enable or disable the DRAM Margin Ranks function.
Initiate Graphic Adapter
This setting allows the user to select which graphics controller to be the primary
graphic device when booting up.
IGD Graphics Mode Select
Allows you to decide whether to use the integrated GPU and select the amount of
memory used by the integrated GPU.
