AIMB-780 User Manual
Chapter 2
Connecting
Peripherals
2.3

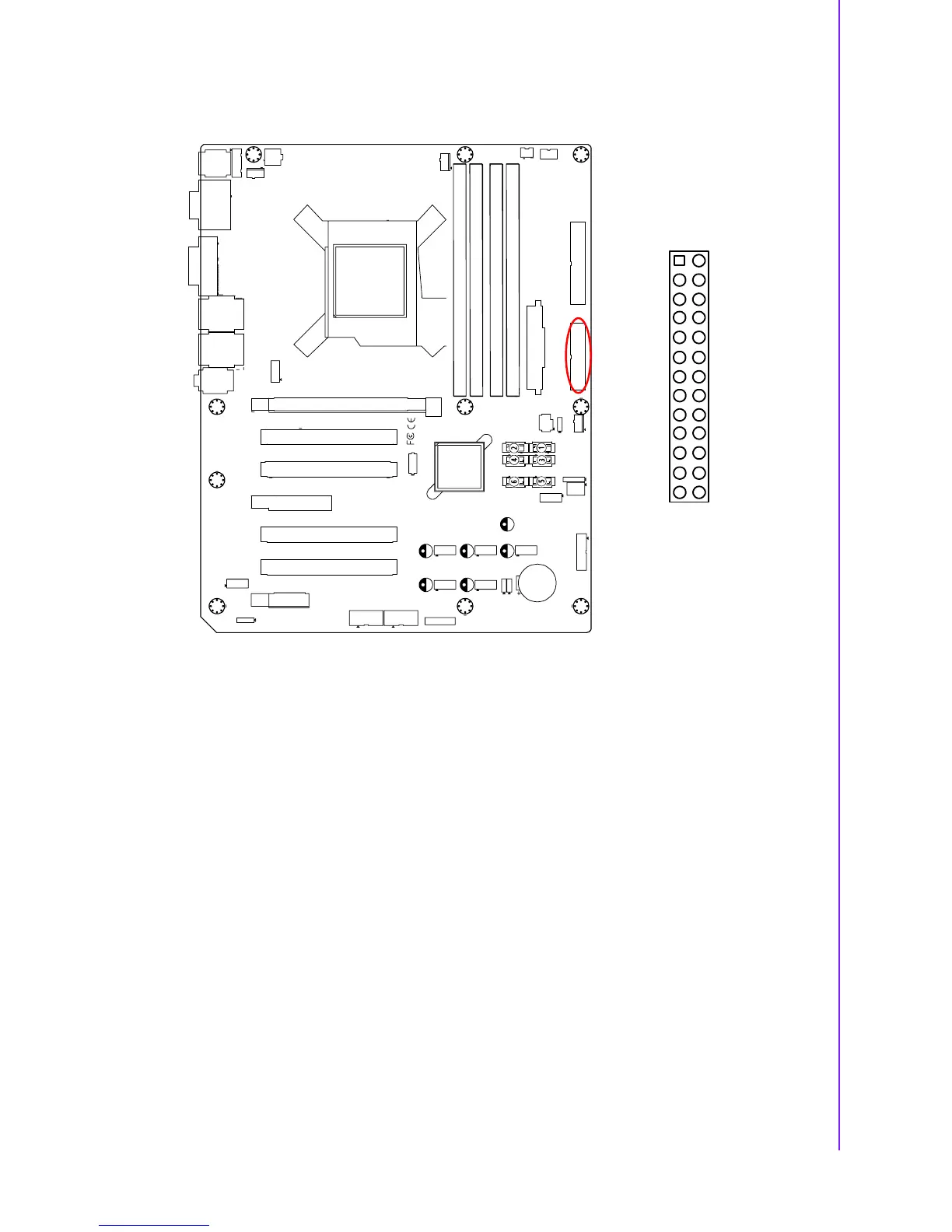

Parallel Port (LPT1)
The parallel port is normally used to connect
the motherboard to a printer
. The AIMB-
780 includes an onboard p
arallel port, accessed through a 25-pin
flat-cable connec-
tor
, LPT1.
15
26
13
2
25
12
1
14
26
28
