35
AIMB-780 User Manual
Chapter 2
Connecting
Peripherals
2.21

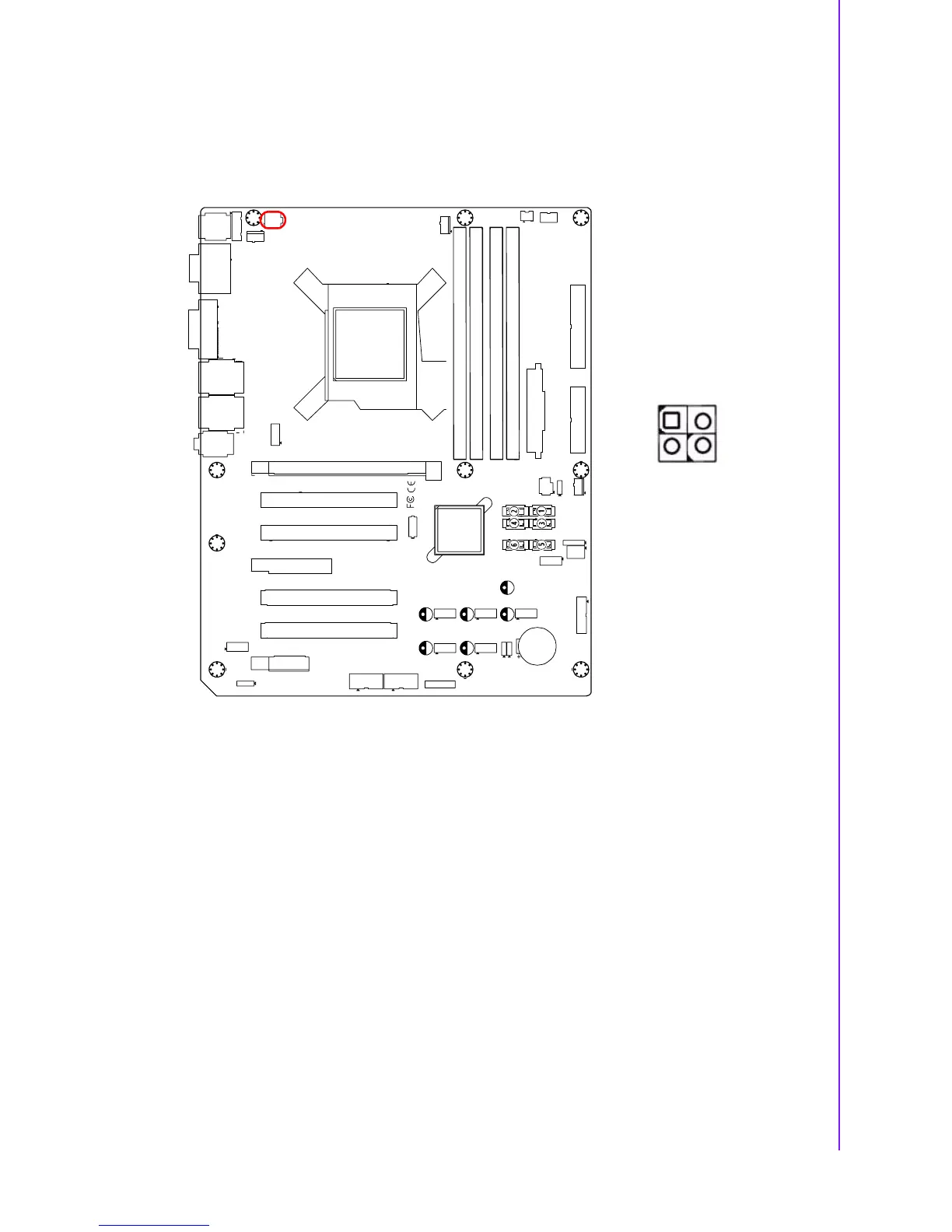

Auxiliary 4-pin power connector (A
TX12V1)
T
o ensure th
e enough power is supplie
d to
the motherboard, one auxiliary 4-pin
power connector is available on the AIMB-
780. A
TX1 must be used to provide suffi-
cient 12 V power to ensure the st
able operation of the system.
2.22
SPI Flash connector(SPI_CN1)
SPI flash card pin header which can flash BIOS while AIMB-780 can not be power on
and ensures platf
orm integrity
.
44
