53
AIMB-780 User Manual
Chapter 3
BIOS Operation
3.4.6
Remote Access Configuration

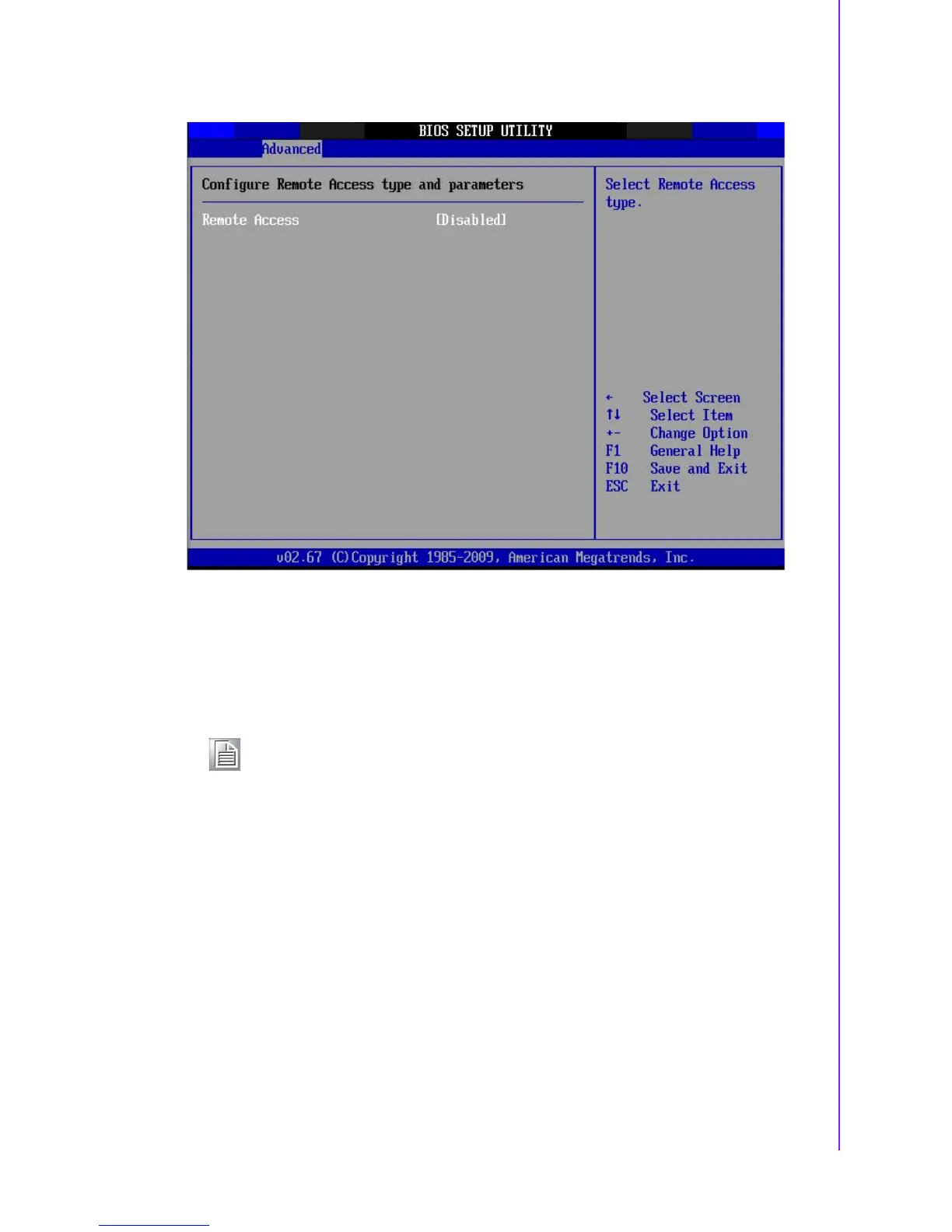

Figure 3.16 Remote Access Configuration
Y
ou can disable or enable the BIOS remote access feature here. This funct
ion is
used to redirect the console from the
serial port. The Optimal and Fail-Saf
e default
setting is Disabled.
Note!
If you want to use SOL, which is pr
ovided
by Intel AMT, you have to
enable the Remote access feature.
