51
AIMB-780 User Manual
Chapter 3
BIOS Operation
3.4.4
ASF Configuration

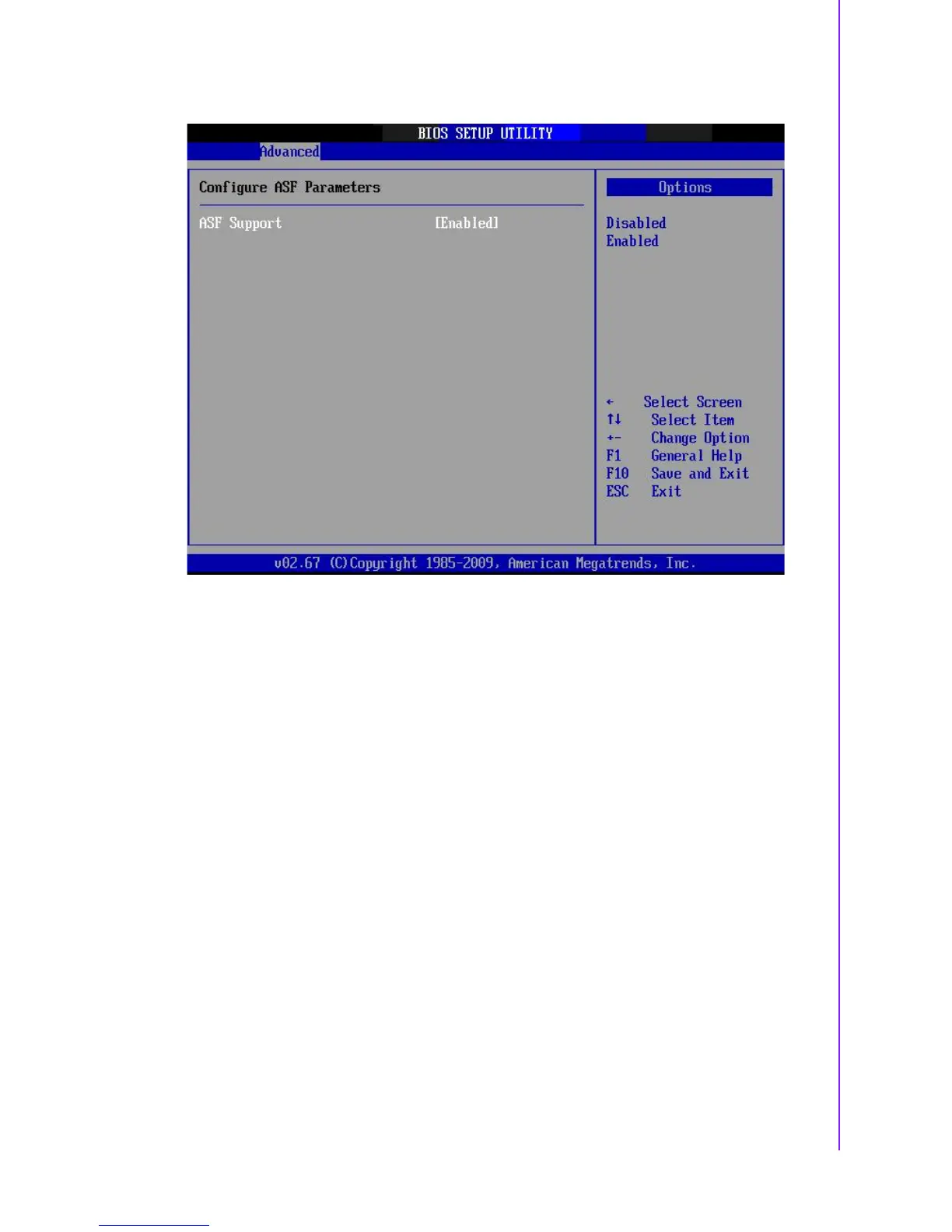

Figure 3.14 ASF Configuration
ASF Support
ASF (Alert S
tandard Format) provides stan
dards-based alertin
g and remote control.
Both the alerting and remote contro
l capabilities of
ASF are hardware-based and
local to the networking solution on ma
naged systems. This allows these solutions
CPU and OS independence, providing a persi
stent connection with the manageme
nt
console.
60
62
