Chapter 3 BIOS Operation
3.3.4 Super I/O Configuration

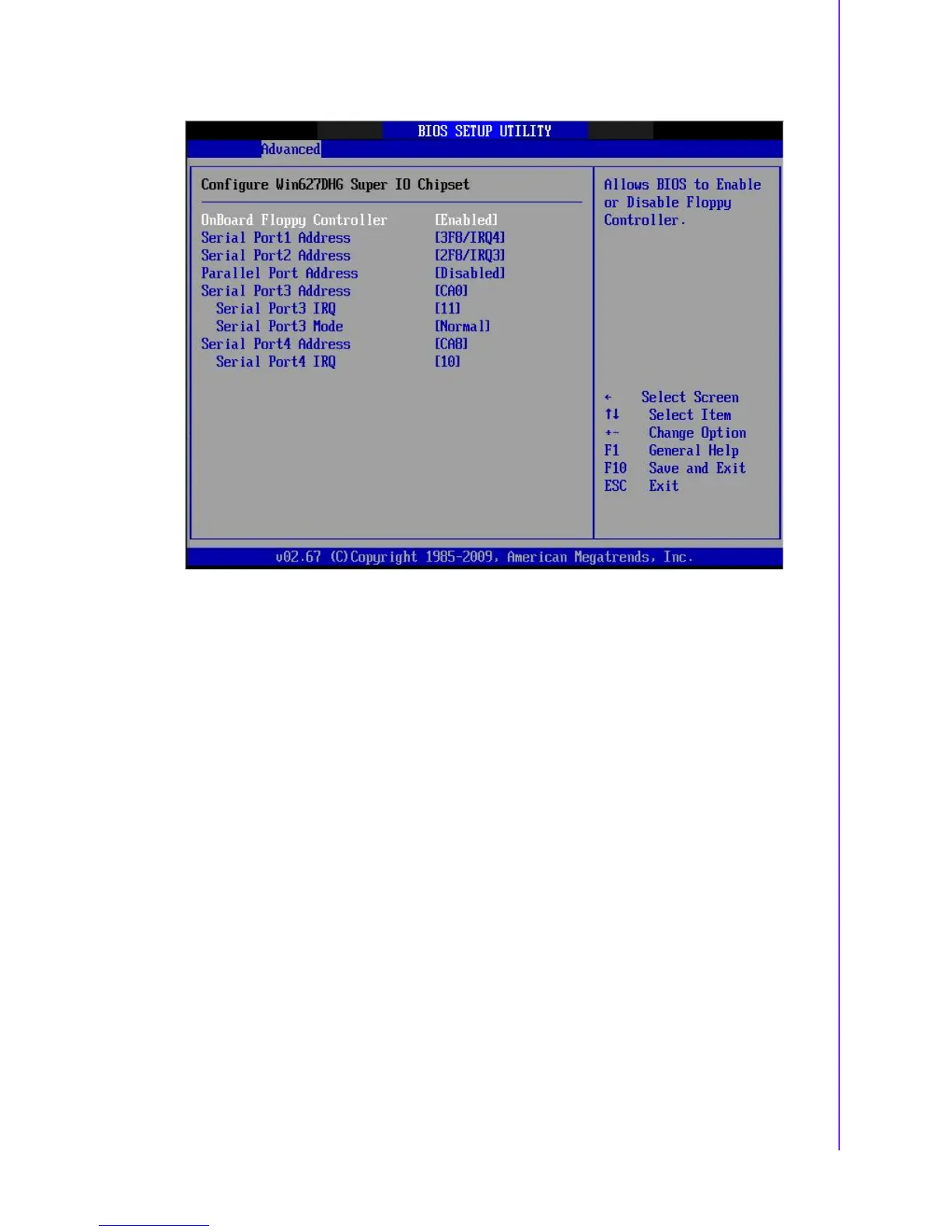

Figure 3.8 Super I/O Configuration
OnBoard Floppy Controller
This option allows the BIOS to Enable or Disable the floppy controller.
Serial Port1 Address
This option configures serial port 1 base addresses.
Serial Port2 Address
This option configures serial port 2 base addresses.
Parallel Port Address
This configures parallel port base addresses.
Parallel Port Mode (This item is offered when the parallel port address is
enabled)
This item allows the user to set parallel port mode, and there are four options, [Bi-
Directional] \ [ECP]\[EPP]\[ECP&EPP]
Serial Port 3 Address
This option configures serial port 3 base address.
Serial Port 3 IRQ
This option configures serial port 3 base IRQ.
Serial port3 Mode
This option configures serial port 3 mode.
Serial Port 4 Address
This option configures serial port 4 base address.
Serial Port 4 IRQ
This option configures serial port 4 base IRQ.
