AIMB-780 User Manual 64
3.8.5 ME Subsystem Configuration

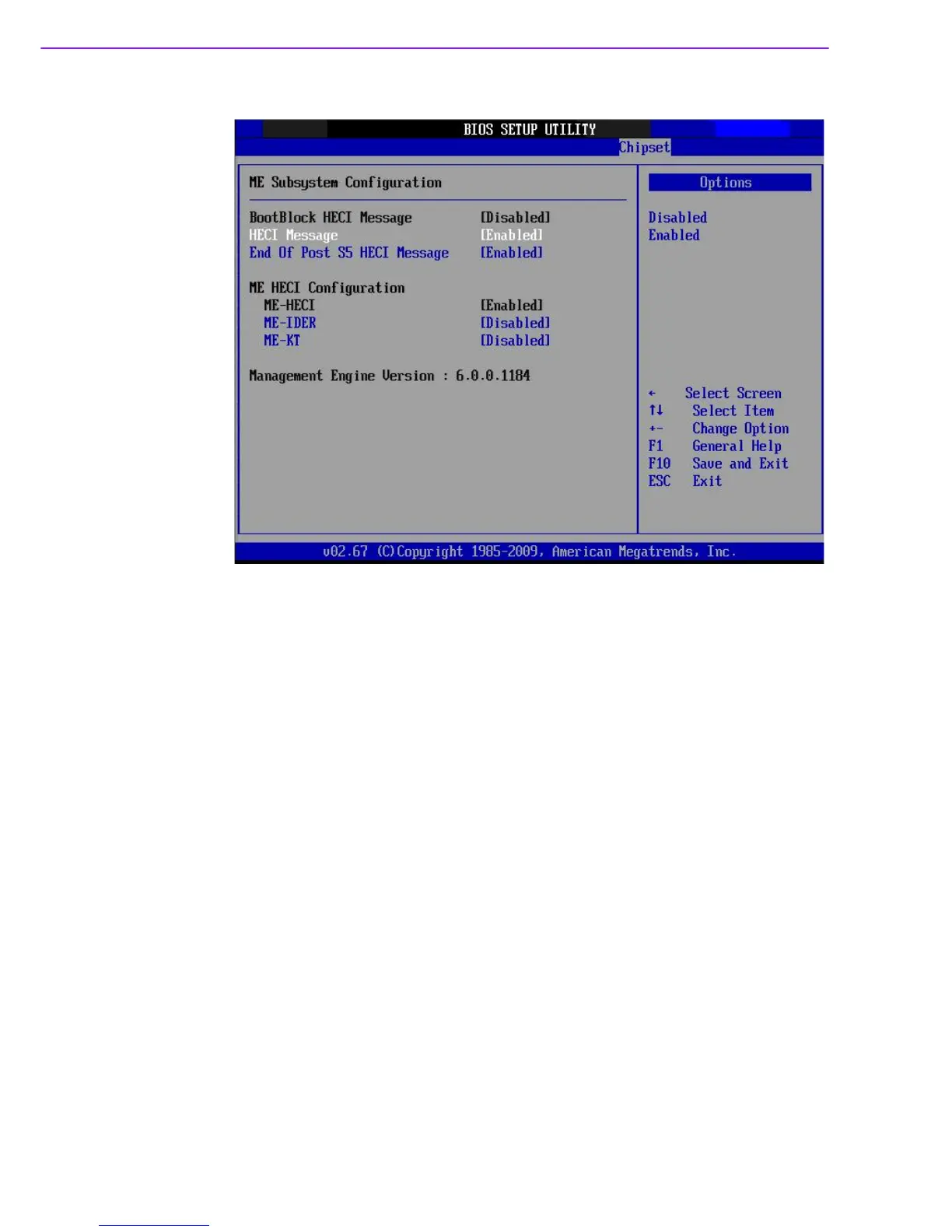

Figure 3.28 ME Subsystem Configuration
Boot Block HECI Message
This allows the user to enable or disable Boot Block HECI messaging between sys-
tem BIOS code and ME code.
HECI Message
This allows the user to enable or disable HECI messaging between system BIOS
code and ME code.
End of POST S5 HECI Message
Enabling this will let system BIOS code to inform ME code ending of POST S5 via
HECI messaging.
ME HECI Configuration
ME-HECI
This allows the user to enable or disable HECI function of ME.
ME-IDER
This allows the user to enable or disable IDE redirection function of ME.
ME-KT
This allows the user to enable or disable KT function of ME.
