AIMB-780 User Manual 50
3.4.3 AHCI Configuration

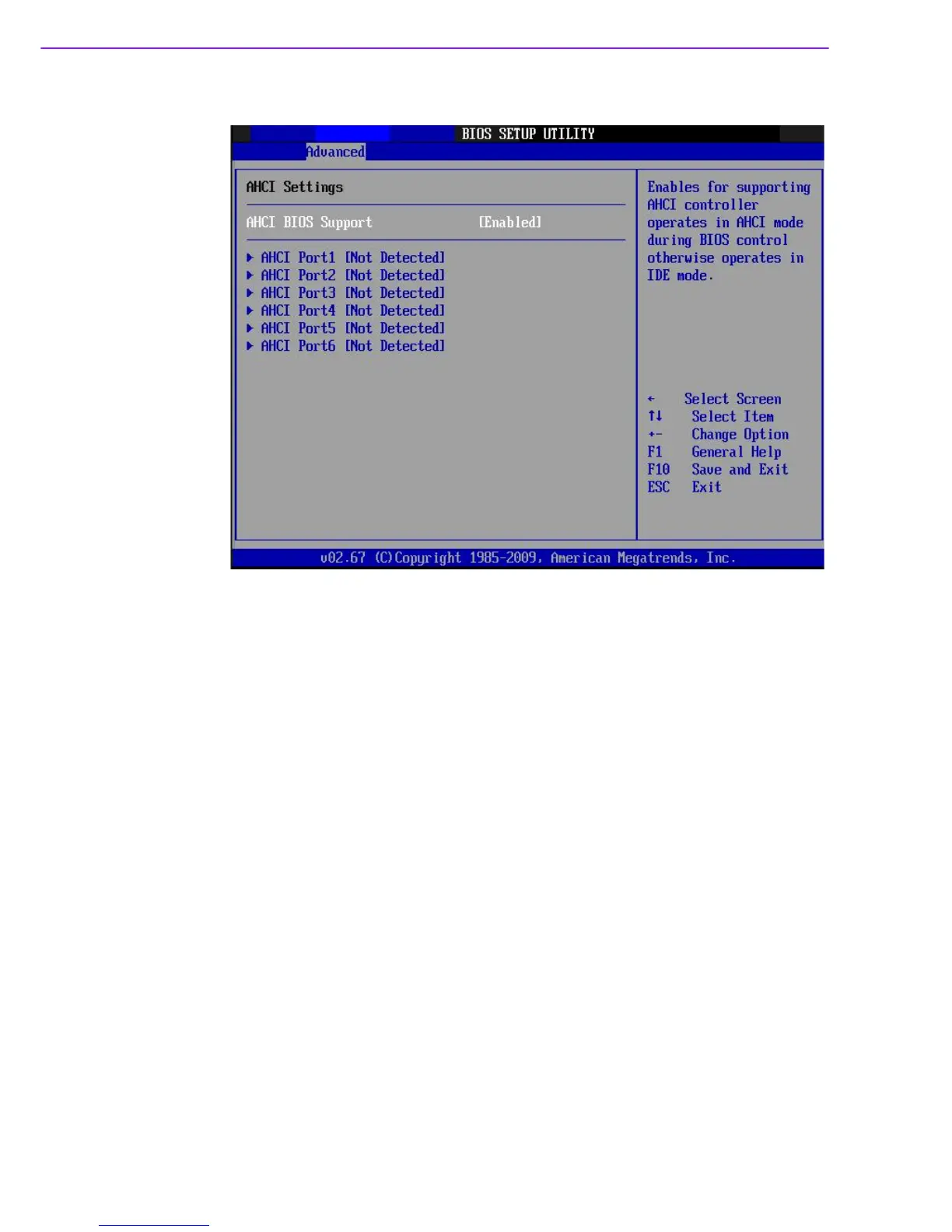

Figure 3.13 AHCI Configuration
AHCI Port1-6 [XXXX]
Displays the status of auto-detection of SATA devices.
AHCI Port1-6 [Auto]
[Auto] Allows automatic selection of the device type connected to the system.
[Not Detected] Selects this option if no SATA devices are installed.
