Advantech AIMB-781 - Board Layout: Jumper and Connector Locations; Figure 1.1 Jumper and Connector Locations; Figure 1.2 I;O Connectors

7 AIMB-781 User Manual
Chapter 1 Hardware Configuration
1.5 Board Layout: Jumper and Connector
Locations

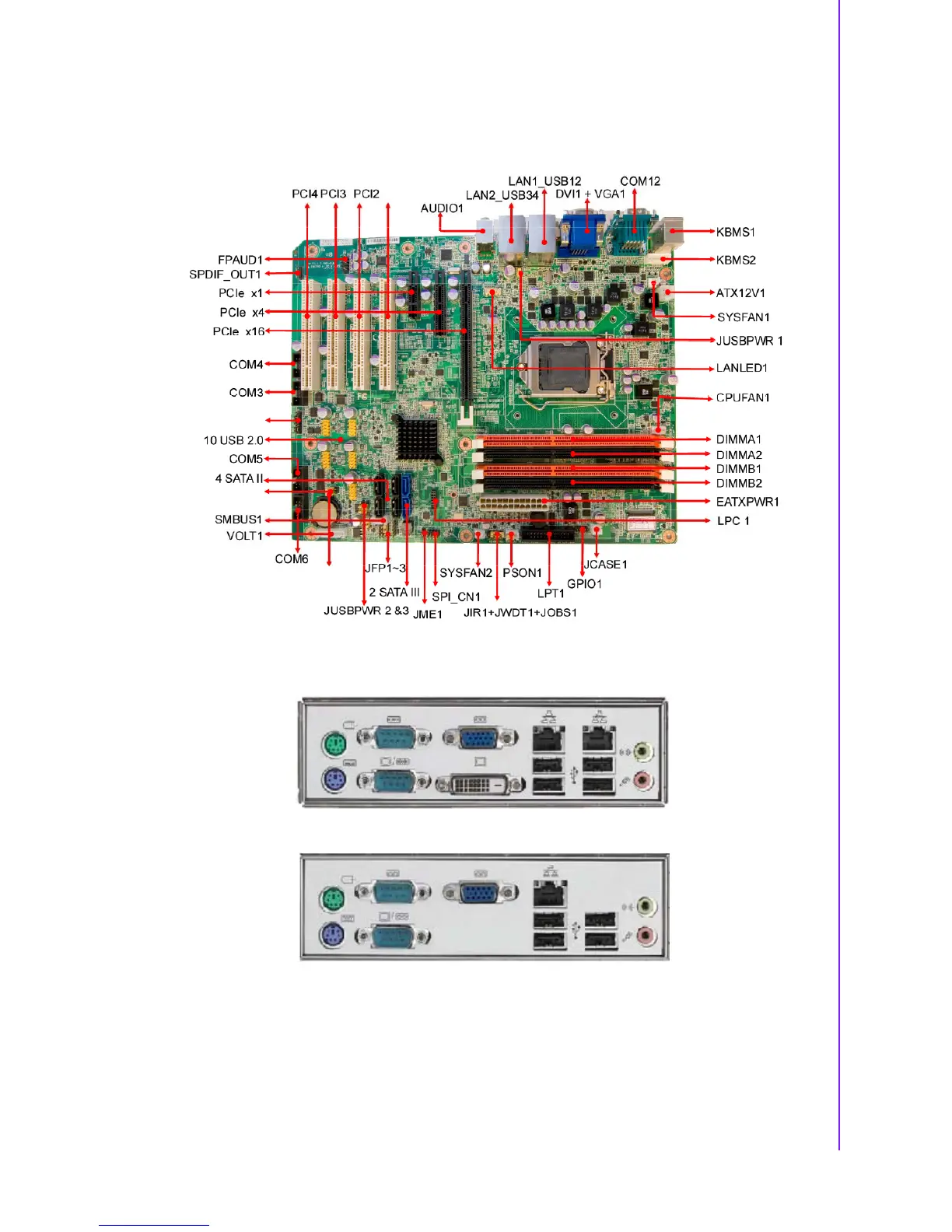

Figure 1.1 Jumper and Connector Locations
Figure 1.2 I/O connectors
PCI3
COM12
AUDIO1
LAN1_USB12
DVI1 + VGA1
LAN2_USB34
PCI4 PCI2
PCI1
KBM 1
KBMS2
FPAUD1
SPDIF_OUT1
PCIe x1
PCIe x4
PCIe x16
ATX12V1
SYSFAN1
LANLED1
COM4
DIMMA1
10 USB 2.0
JSETCOM3
4SATAII
EATXPWR1
DIMMB1
DIMMB2
COM5
JMECLR1
SMBUS1
COM6
LPC 1
VOLT1
2 SATA III
GPIO1
JUSBPWR 2 &3
~
SPI_CN1
JME1
SYSFAN2
JIR1+JWDT1+JOBS1
PSON1
LPT1
JCMOS1
AIMB-781QG2-00A1E
AIMB-781QVG-00A1E
