19 AIMB-781 User Manual
Chapter 2 Connecting Peripherals
2.7 PS/2 Keyboard and Mouse Connector (KBMS1)

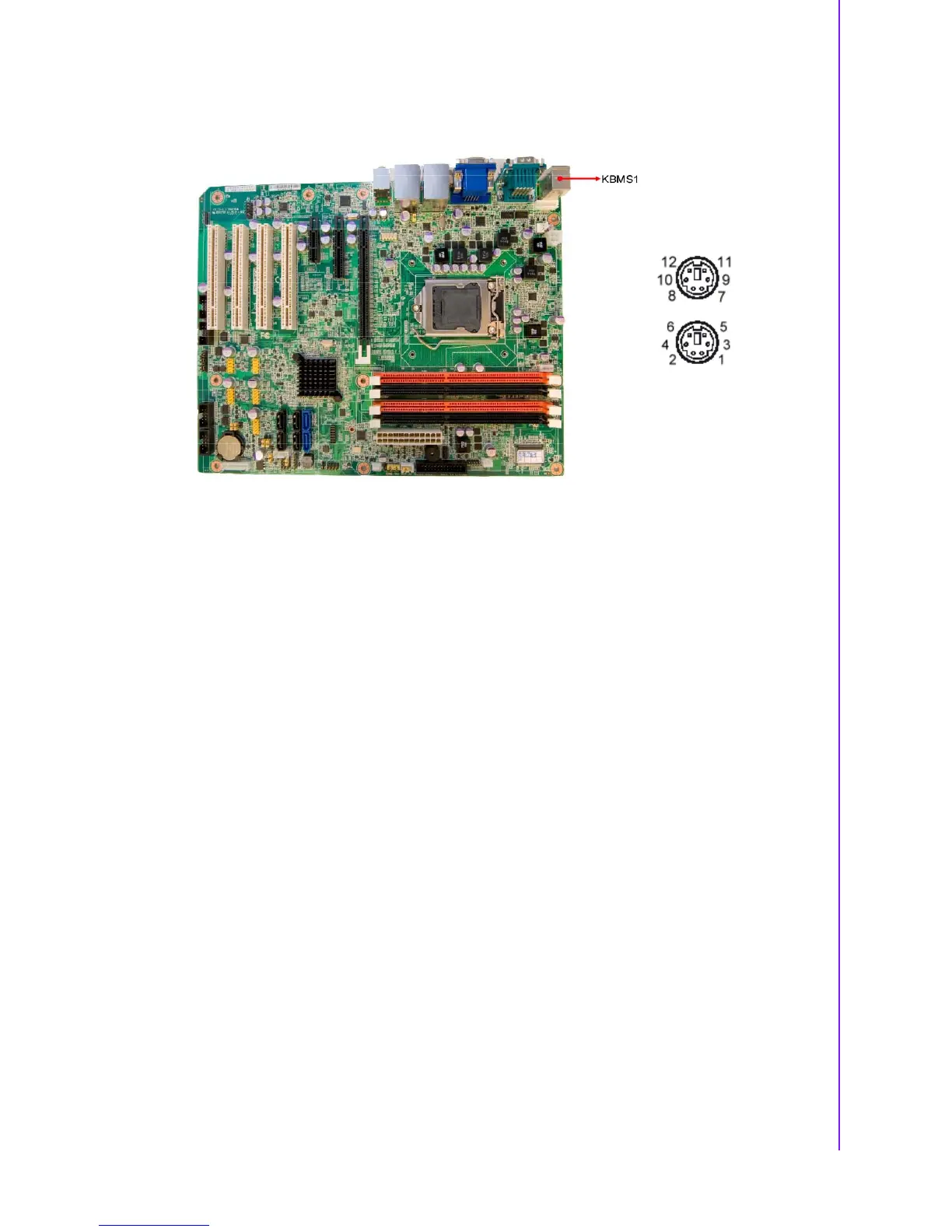

Two 6-pin mini-DIN connectors (KBMS1) on the rear panel of the motherboard pro-
vide PS/2 keyboard and mouse connections.
