79 AIMB-781 User Manual
Appendix B I/O Pin Assignments

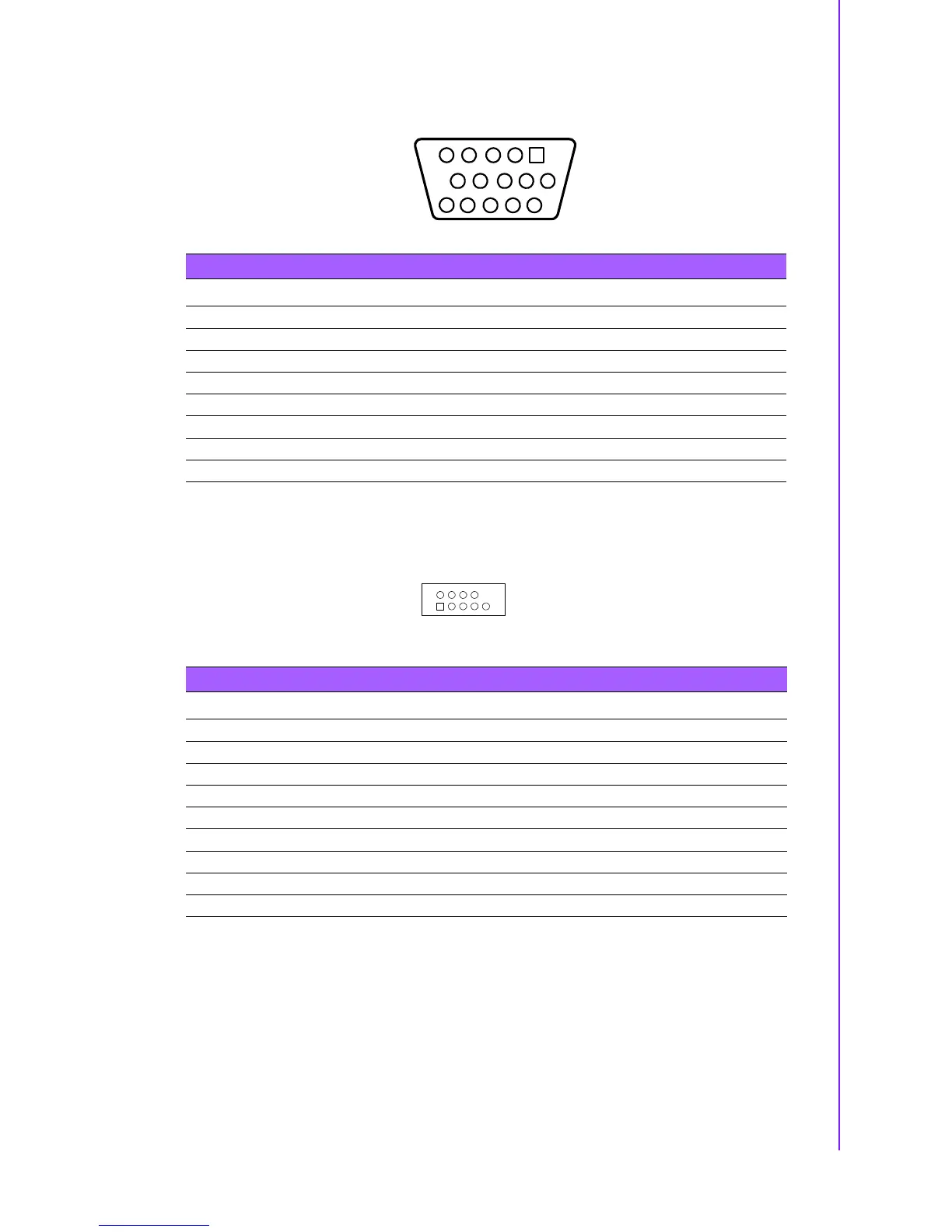

B.3 VGA Connector (VGA1)
B.4 RS-232 Interface (COM3~6)
Table B.3: VGA Connector (VGA1)
Pin Signal Pin Signal
1RED 9VCC
2 GREEN 10 GND
3BLUE 11N/C
4N/C 12SDT
5 GND 13 H-SYNC
6 GND 14 V-SYNC
7GND 15SCK
8GND
5
15
1
11
10 6
Table B.4: RS-232 Interface (COM1)
Pin Signal
1 DCD
2RXD
3TXD
4DTR
5GND
6DSR
7RTS
8CTS
9RI
1 2
6 9
