21 AIMB-781 User Manual
Chapter 2 Connecting Peripherals
2.10 System FAN Connector (SYSFAN1 and
SYSFAN2)
If a fan is used, this connector supports cooling fans that draw up to 500 mA (6 W).
2.11 Front Panel Connectors (JFP1, JFP2 & JFP3)

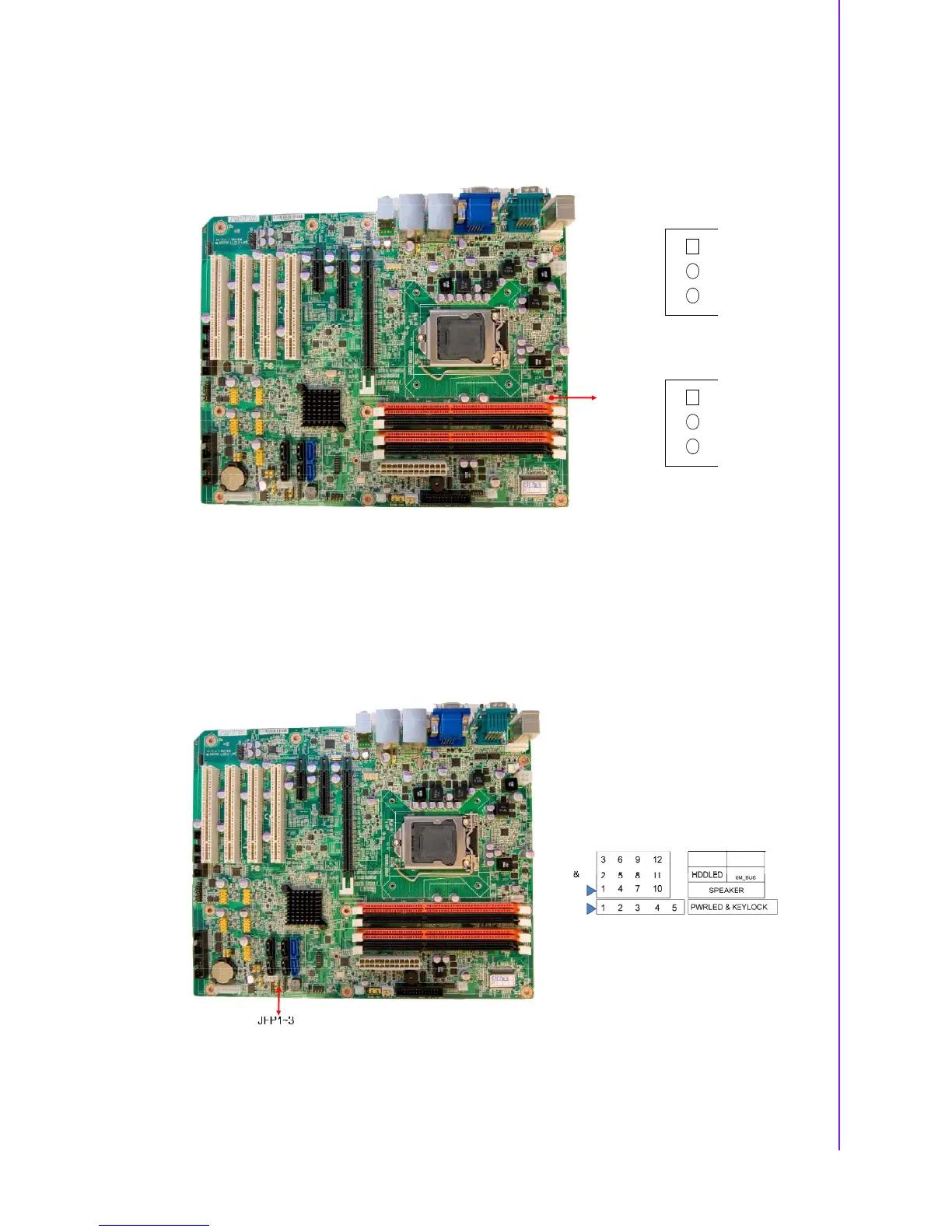

There are several external switches and LEDs to monitor and control the AIMB-781.
CPUFAN1
SYSFAN1
SYSFAN2
~
3 6 9 12
PWRSW RESET
SNMP
JFP1
1 4 7 10
SM_BUS
SPEAKER
JPF2
PWRLED & KEYLOCK
123 45
JFP3
