AIMB-781 User Manual 84

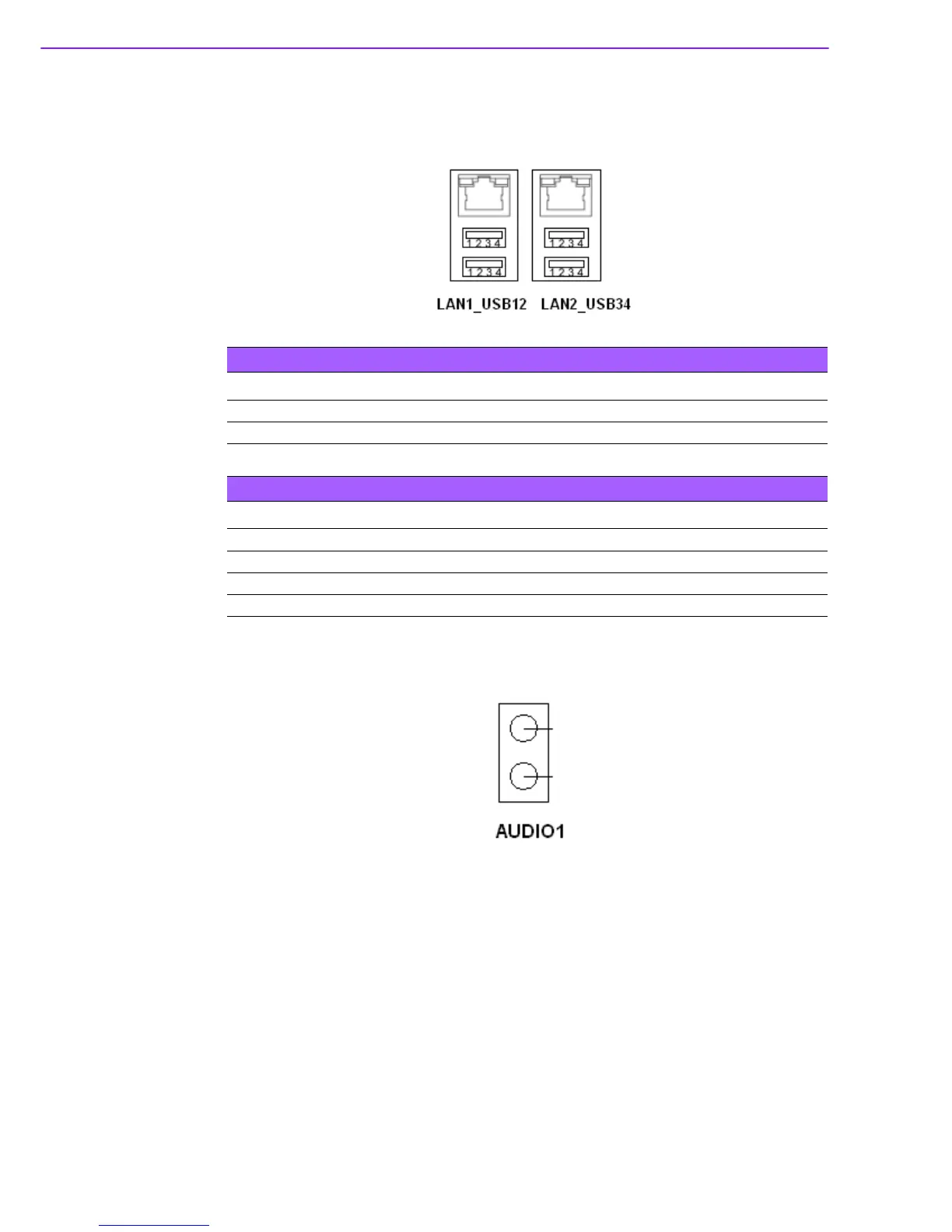

B.16 USB/LAN ports (LAN1_USB12 and
LAN2_USB34)
B.17 Line Out, Mic IN Connector (AUDIO1)
Table B.16: USB Port
Pin Signal Pin Signal
1 VCC_DUAL 3 Data0+
2Data0- 4 GND
Table B.17: Giga LAN 10/100/1000 Base-T RJ-45 port
Pin Signal Pin Signal
1 MID0+ 5 MID2+
2 MID0- 6 MID2+
3 MID1+ 7 MID3+
4 MID1- 8 MID3+
Line Out
MIC In
