39 AIMB-781 User Manual
Chapter 3 BIOS Operation
3.3.4 SATA Configuration

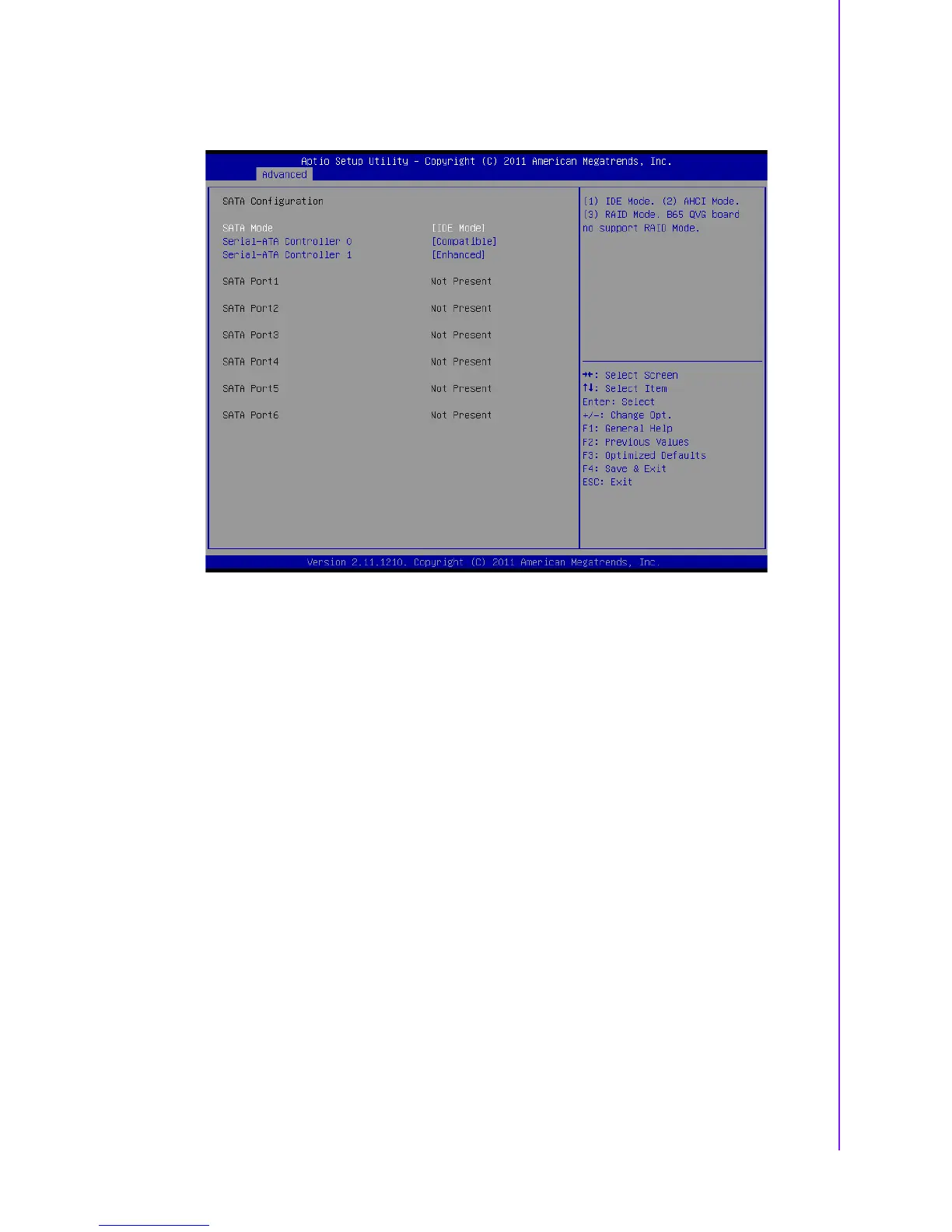

Figure 3.8 SATA Configuration
SATA Mode
This can be configured as IDE, RAID, AHCI, or Disabled. (RAID mode is only for
QG2 version)
Serial-ATA Controller 0
This item appears only when you set the SATA Mode item to [IDE Mode]. Set to
[Enhanced] to support two SATA 6.0 Gb/s and two SATA 3.0 Gb/s devices. Set to
[Compatible] when using Windows 98/NT/2000/MS-DOS. Up to four SATA devices
are supported under these operating systems.
Serial-ATA Controller 1
This item appears only when you set the SATA Mode item to [IDE Mode]. Set to
[Enhanced] to support two SATA 3.0 Gb/s devices.
