Advantech AIMB-781 - B.1 Parallel Port (LPT1); Appendix B I;O Pin Assignments; Table B.1: Parallel Port (LPT1); B.2 USB Header (USB56, USB78, USB910, USB1112 & USB1314)

AIMB-781 User Manual 78

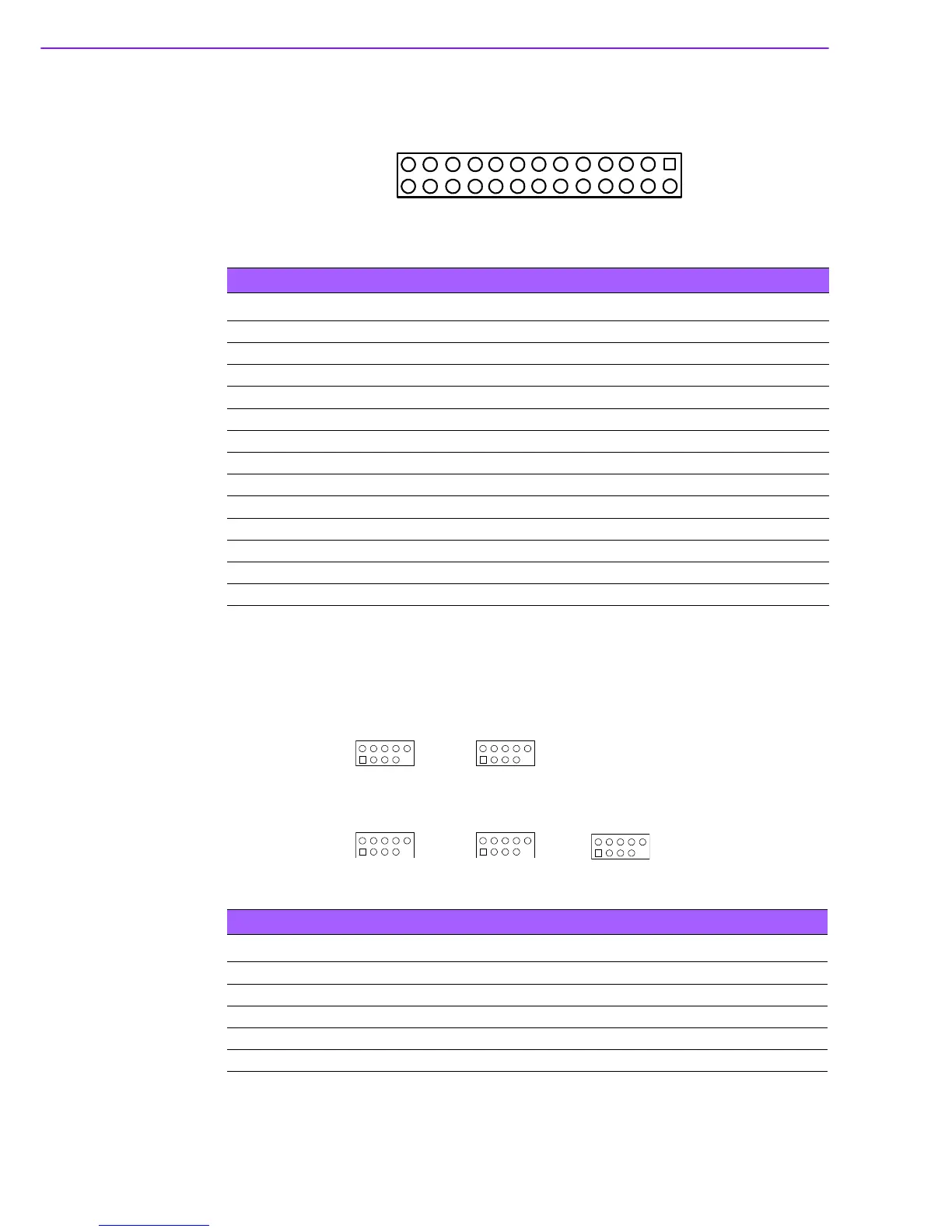

B.1 Parallel Port (LPT1)
B.2 USB Header (USB56, USB78, USB910, USB1112
& USB1314)
Table B.1: Parallel Port (LPT1)
Pin Signal Pin Signal
1 STROBE* 14 AUTOFD*
2D015ERR*
3D116INIT*
4D217SLCTINI*
5D318GND
6D419GND
7D520GND
8D621GND
9D722GND
10 ACK* 23 GND
11 BUSY 24 GND
12 PE 25 GND
13 SLCT 26 N/C
1526
13 2
25
12 1
14
Table B.2: USB Header (USB56,USB78,USB910,USB1112,USB1314)
Pin Signal Pin Signal
1 USB_VCC5 2 USB_VCC5
3 USB_D- 4 USB_D-
5 USB_D+ 6 USB_D+
7 GND 8 GND
9 Key 10 N/C
USB56 USB78
USB910 USB1112 USB1314
1
2
10
