AIMB-781 User Manual 86

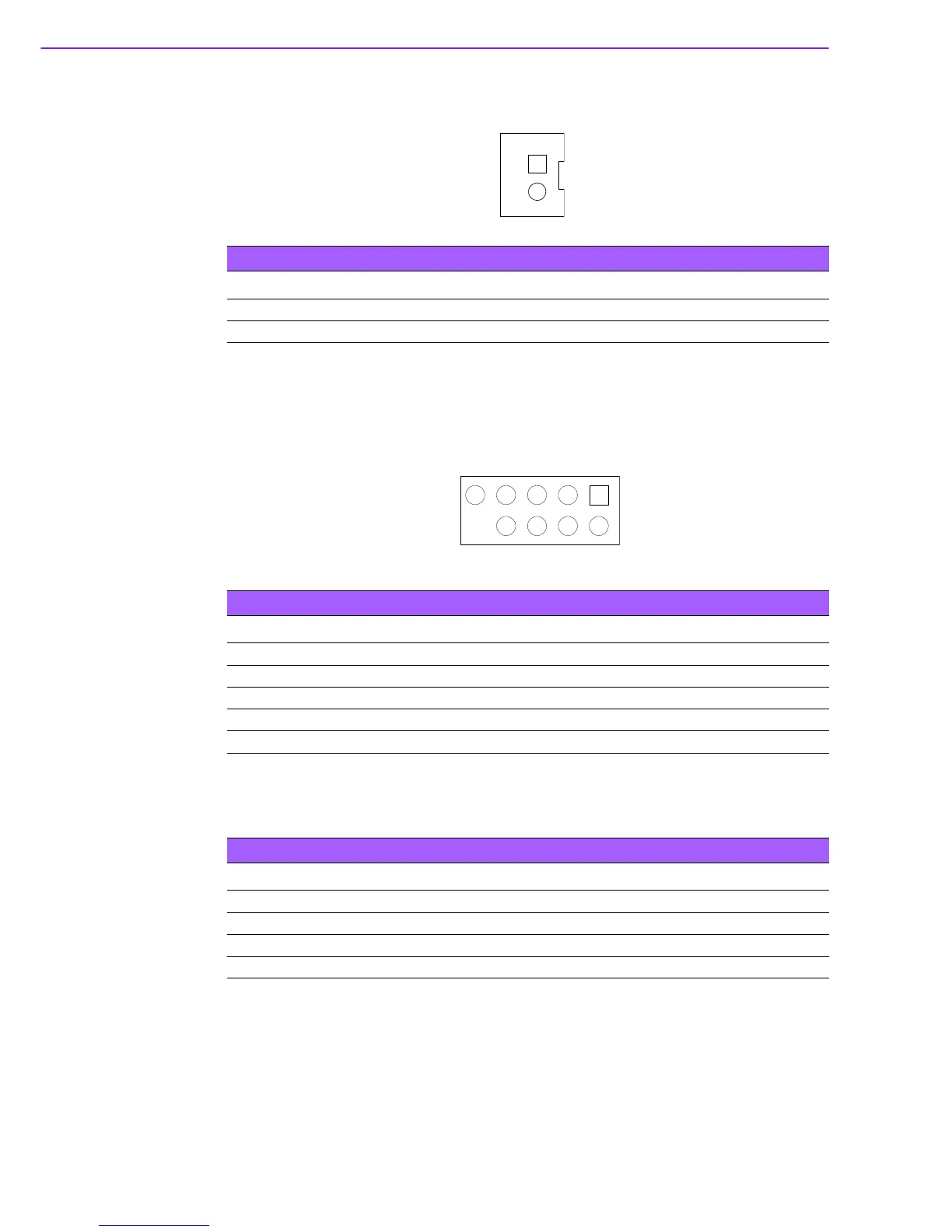

B.20 Case Open Connector (JCASE1)
B.21 Front Panel LAN LED Connector (LAN_LED1)
B.22 SPI_CN1: SPI flash card pin connector
Table B.20: Case Open Connector (JCASE1)
Pin Signal
1 CASEOP
2GND
1
Table B.21: LAN LED Connector (LANLED1)
Pin Signal Pin Signal
1 LAN1_LINK/ACT 2 LAN2_LINK/ACT
3 3VDUAL 4 3VDUAL
5 LAN1_LINK1000 6 LAN2_LINK1000
7 LAN1_LINK100 8 LAN2_LINK100
93VDUAL 10N/C
9 1
8 2
Table B.22: SPI_CN1:SPI fresh card pin connector
Pin Signal Pin Signal
1 +3VSB 2 GND
3 SPI_CS# 4 SPI_CLK
5 SPI_MISO 6 SPI_MOSI
7N/A 8NC
