1.4 Mechanical Specifications
1.4.1 Dimensions
264.5[10.41] x 133.0[5.24] x 75.1[2.96] (Unit: mm [Inch])

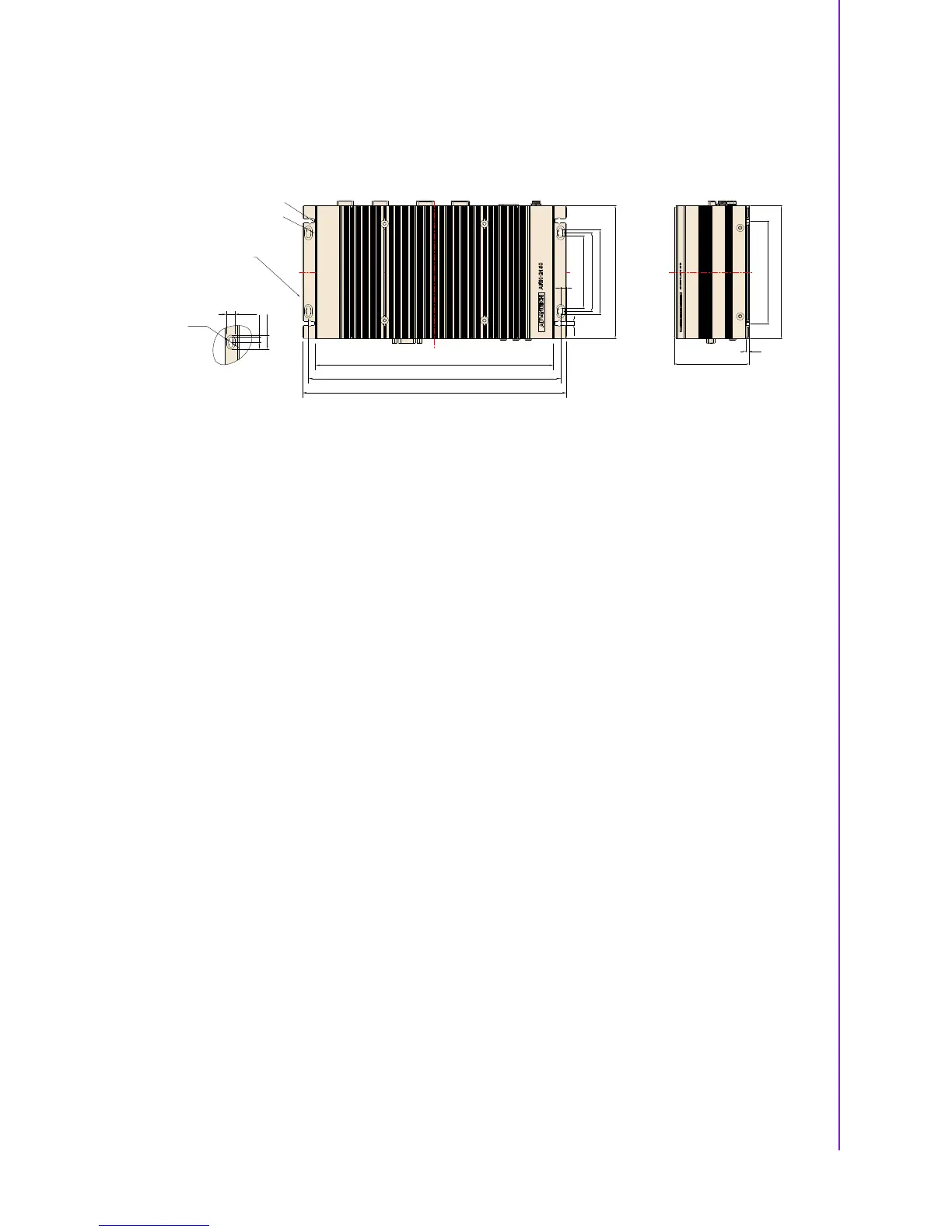

Figure 1.1 ARK-2150 Mechanical dimension drawing
1.4.2 Weight
2.8kg (6.17lb)
1.5 Power Requirement
1.5.1 System Power
 Minimum power input:
– ARK-2150L: DC12 V 4 A
– ARK-2150F: DC12 V - 24 V, 4 A-2 A
1.5.2 RTC Battery
 Lithium 3 V/210 mAH
252,5
Detail A
?,6
5.0
14.0
8,0
78.5 72.5
84.5
4
133
6
264,5
238,2
?
?
.
5
Detail A
102.5
133
75.05
3.5
