21
ARK-2150 User Manual
Chapter 2
H/W Installation
3.

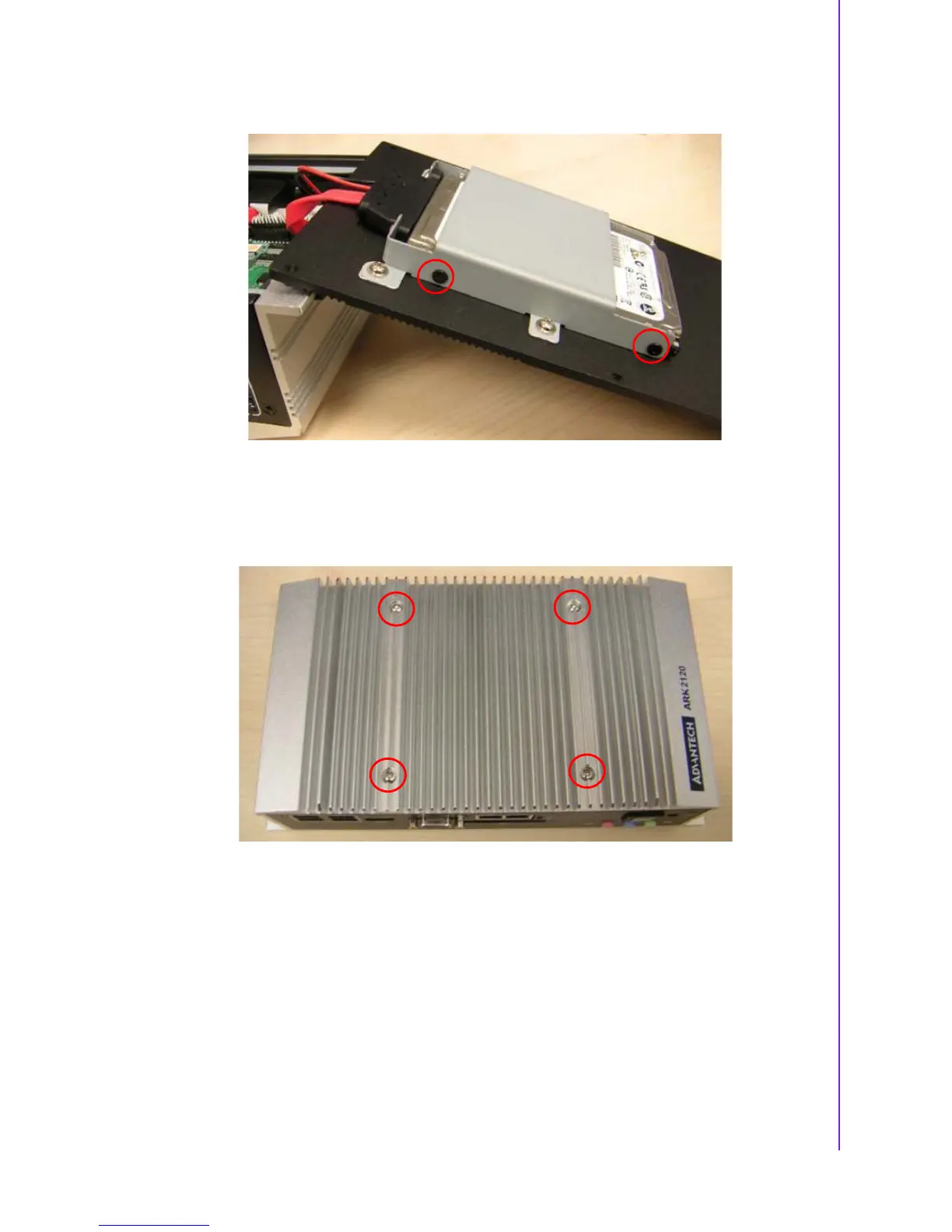

Screw the four screws on the side of
HDD bracket. The screws are used
to fix
the HDD on the bracket. (The screws are in the
accessory box.)
4.
Recover the bottom cover
and screws.
2.4.2
Memory Inst
allation
1.
Unscrew the four screws on the top cover
.
32
34
