ARK-2150 User Manual 42
3.4.1 PCH-IO Configuration

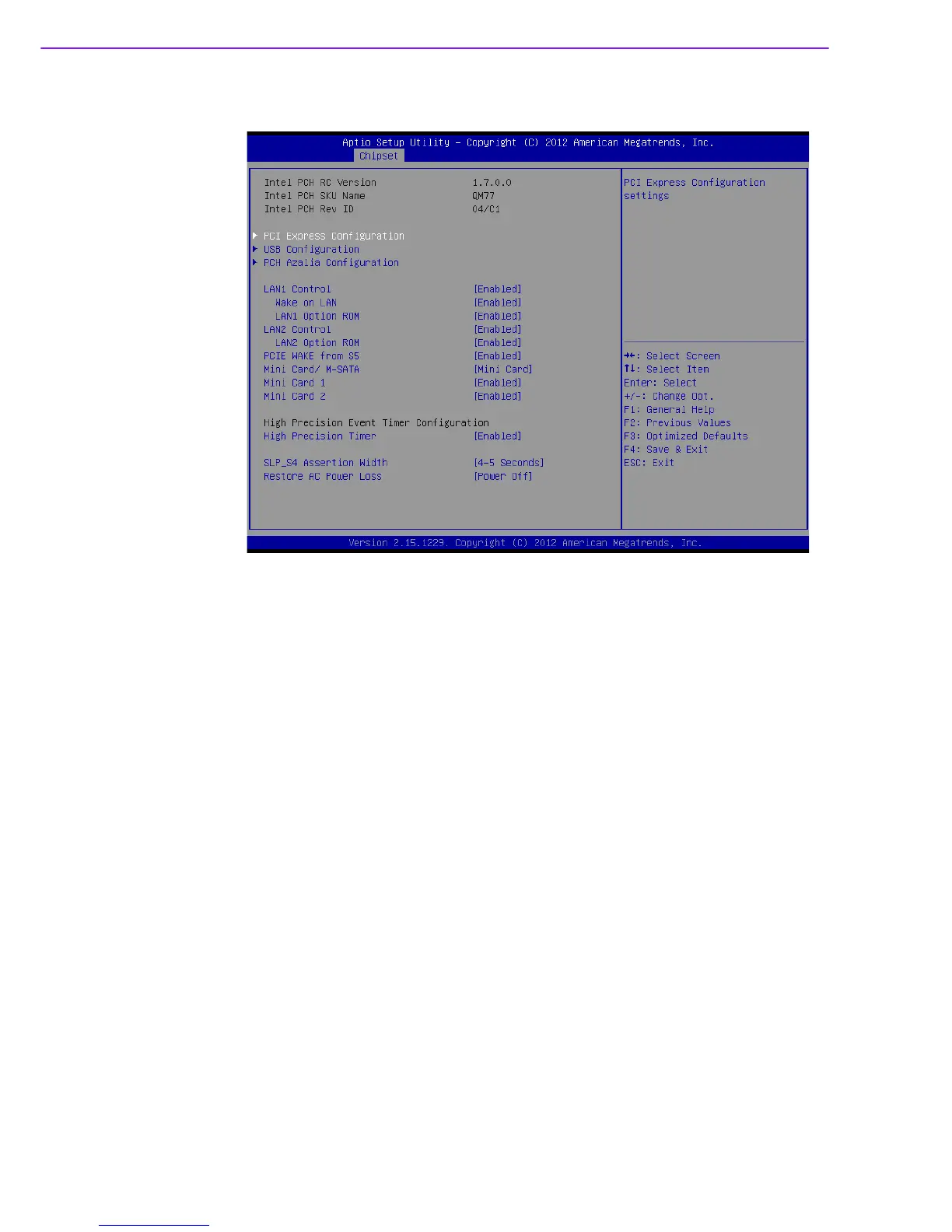

Figure 3.18 PCH-IO Configuration
PCI Express Configuration
This item allows users to configuration PCIE1~PCIE8 root port detail settings.
USB Configuration
This item allows users to configuration detail of USB functions.
PCH Azalia Configuration
This item allows users to configuration detail of azalia functions.
PCH LAN controller
Enables or disables the PCH LAN controller.
PCIE Wake from S5
PCIE wake Enables or disables from S5 state.
MINI Card/M-SATA
This item allows users to select MINI card or M-SATA function.
WiFi Card1/WiFi Card 2
This item allows users to enables or disables the WiFi Card1/WiFi Card 2 if device
exist.
WiFi Card 1 refers to the full size miniPCIe slot on mainboard.(CN28)
WiFi card 2 refers to the half size miniPCIe slot of mainboard.(CN29)
Please notice that no all the WiFi card can support this function.
High Precision Timer
Enables or disables the high precision timer.
SLP_S4 Assertion Width
This item allows users to set a delay of sorts.
Restore AC Power Loss
