11 ARK-2150 User Manual
Chapter 2 H/W Installation
2.2.2 Jumper List
2.2.3 Jumper Location

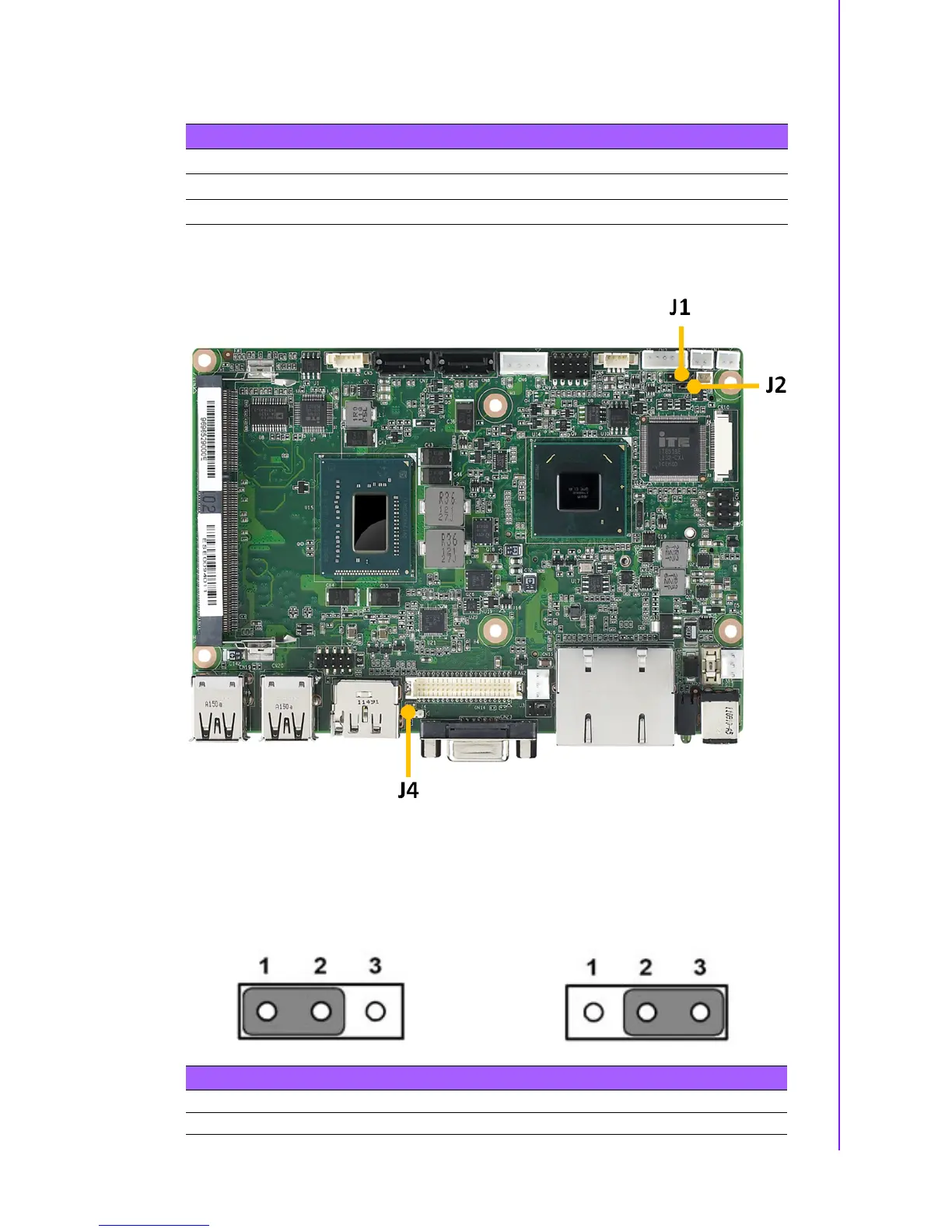

Figure 2.1 Jumper layout
2.2.4 Jumper Setting
At Mother Board
2.2.4.1 Clear CMOS (J1)
Table 2.1: Jumper List of Main Board
J1
Clear CMOS
J2 Auto Power On Setting
J4 DDR3L select
Table 2.2: Clear CMOS (JP1)
Setting Function
(1-2)* Normal (default)
