ARK-2150 User Manual 18
2.3.1.8 HDMI / Display Port Connector

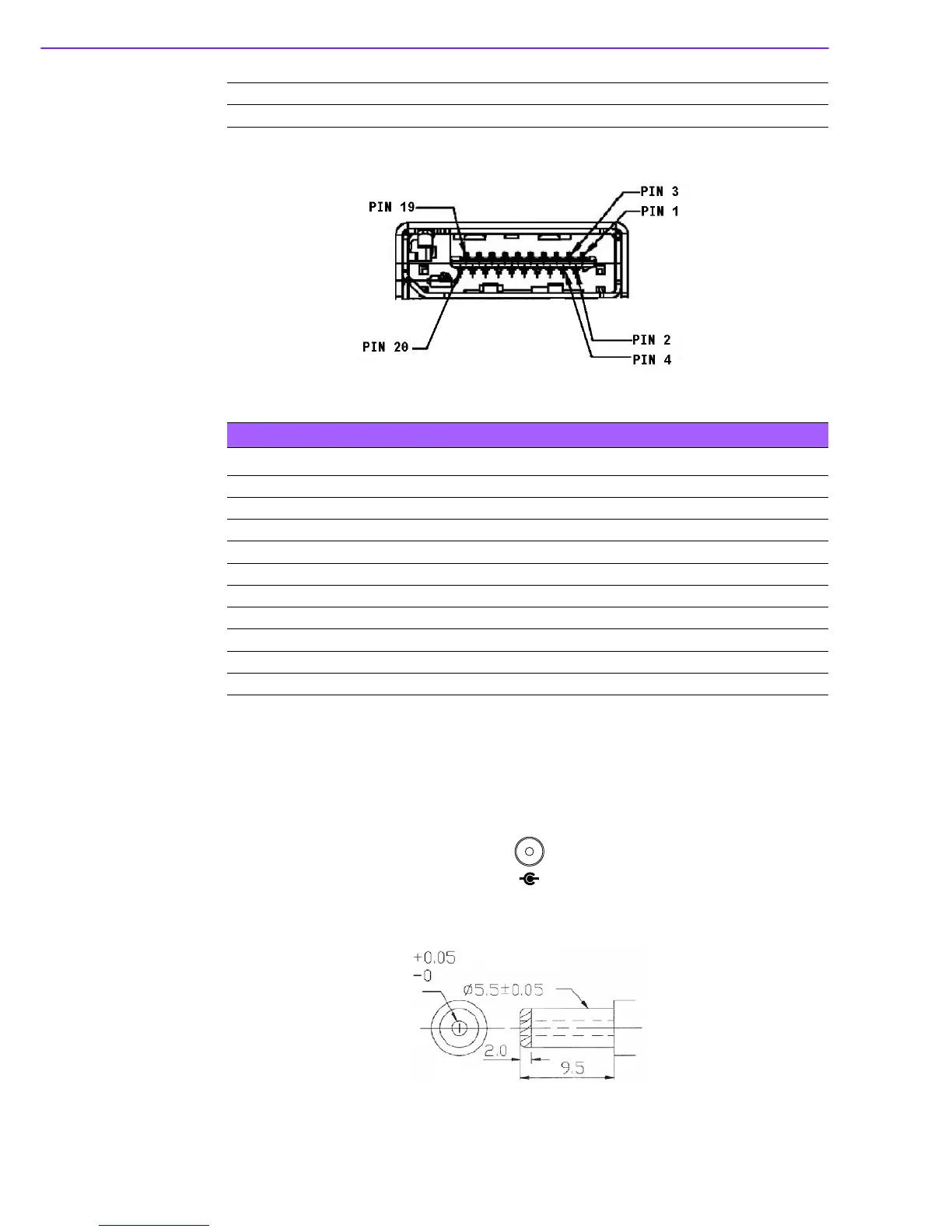

Figure 2.12 HDMI / Display Port Connector
2.3.1.9 Power Input Connector
ARK-2150L comes with a lockable DC Jack that carries 12 VDC external power input
and ARK-2150F comes with a two pins header that carries 12 ~ 24 VDC external
power input.
ARK-2150L
Figure 2.13 Power Input Connector (ARK-2150L)
Figure 2.14 Compatible dimension of DC Plug for ARK-2150L
13 H-SYNC 14 V-SYNC
15 NC
Table 2.13: HDMI / Display Port Connector Pin Assignments
Pin Signal Name Pin Signal Name
1 TMDS_Data2+/ DP_Data0+ 2 GND
3TMDS_Data2−/ DP_Data0- 4 TMDS_Data1+/ DP_Data1+
5 GND 6 TMDS_Data1−/ DP_Data1-
7 TMDS_Data0+/ DP_Data2+ 8 GND
9 TMDS_Data0-/ DP_Data2- 10 TMDS_Clock+/ DP_Data3+
11 GND 12 TMDS_Clock−/ DP_Data3-
13 NC 14 NC
15 SCL/ AUX_CH+ 16 SDA/ GND
17 DDC GND/ AUX_CH- 18 +5V/ Hot plug detect
19 Hot plug detect/ Return 20 DP_PWR
-
+
