13 MIC-770 User Manual
Chapter 2 H/W Installation
2.3.1.5 VGA Connector
The MIC-770 provides a high resolution VGA interface with a 15-pin D-sub connector
to support a VGA CRT monitor. It supports display resolution of up to 2048 x 1152 @
60 Hz.

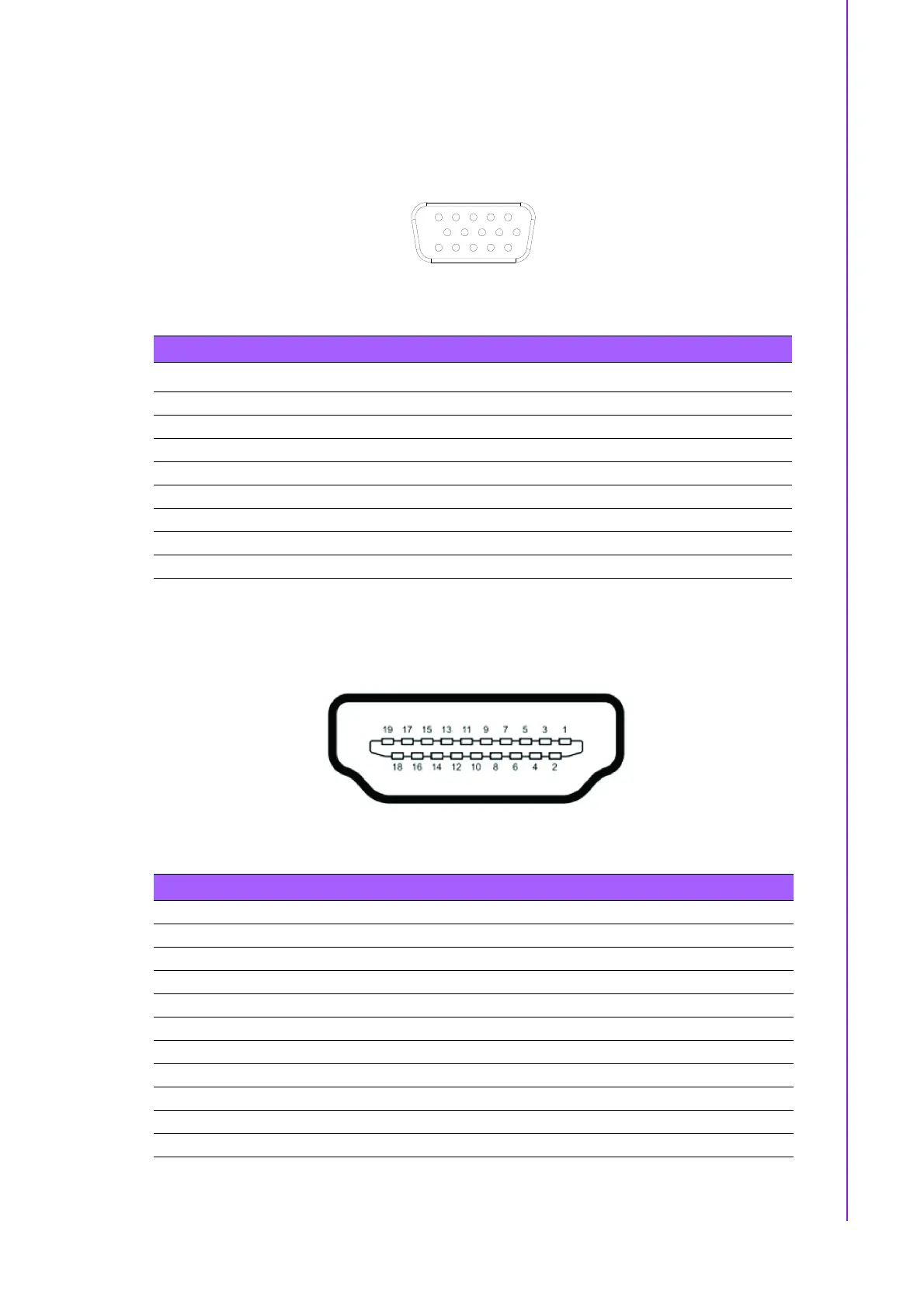

Figure 2.5 VGA Connector
2.3.1.6 HDMI Connector
An integrated, 19-pin receptacle connector HDMI Type A Interface is provided. The
HDMI link supports resolutions up to 2560 x 1600 @ 60Hz; 3840 x 2160 @ 30Hz.
Figure 2.6 HDMI receptacle connector
Table 2.6: VGA Connector Pin Assignments
Pin Signal Name Pin Signal Name
1 Red 2 Green
3 Blue 4 NC
5GND 6 GND
7GND 8 GND
9+5V 10GND
11 NC 12 DDC_DAT
13 H-SYNC 14 V-SYNC
15 DDC_CLK
1
5
6
11
10
15
Table 2.7: HDMI Connector pin assignments
Pin Signal Name Pin Signal Name
1 TMDS Data 2+ 2 TMDS Data 2 shield
3 TMDS Data 2- 4 TMDS Data 1+
5 TMDS Data 1 shield 6 TMDS Data 1-
7 TMDS Data 0+ 8 TMDS Data 0 shield
9 TMDS Data 0- 10 TMDS clock+
11 TMDS clock shield 12 TMDS clock-
13 CEC 14 Reserved
15 SCL 16 SDA
17 DDC/CEC Ground 18 +5V
19 Hot Plug Detect
