MIC-770 User Manual
28
3.2.2.1
Plat
form Misc Configuration

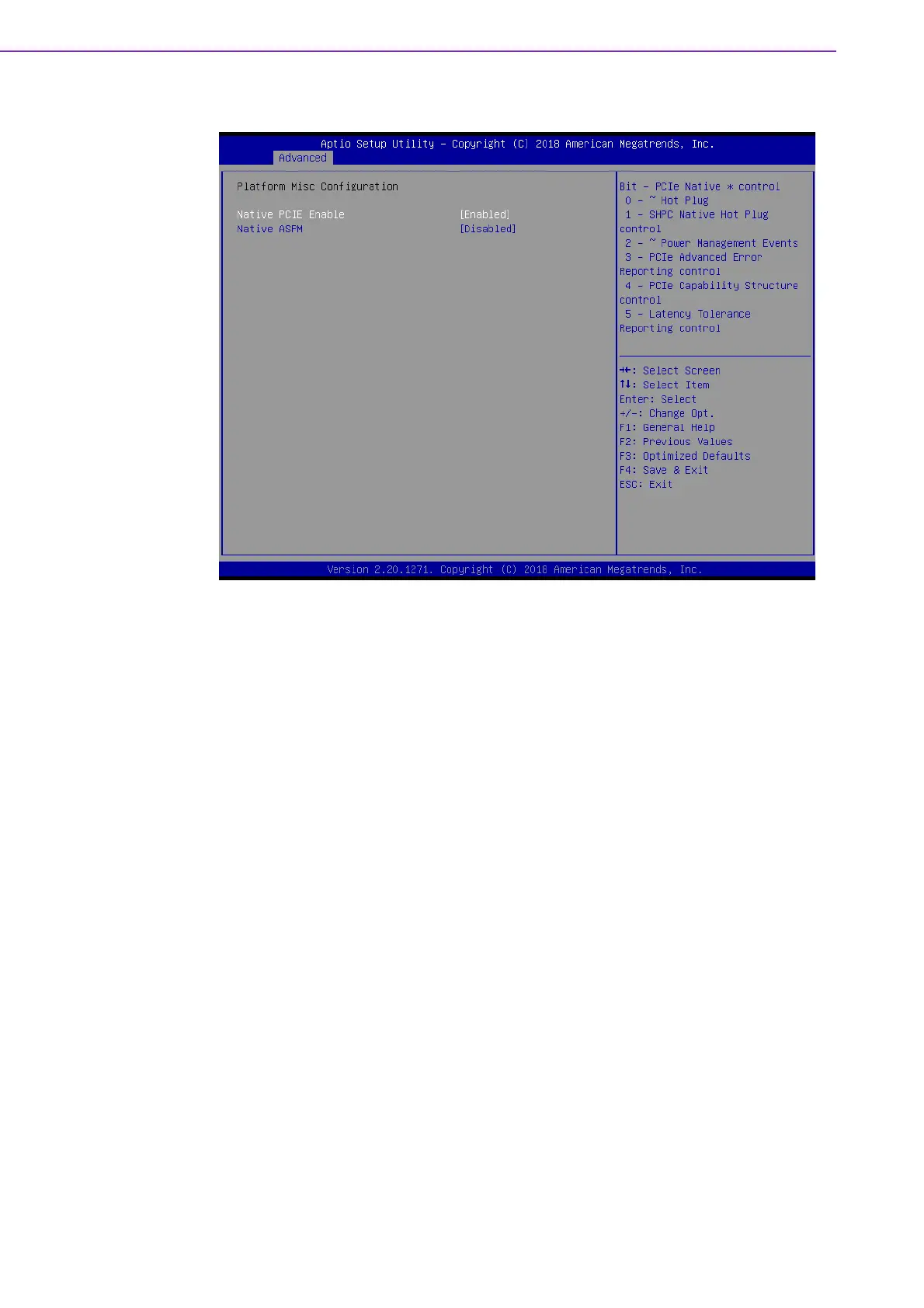

Figure 3.4 Plat
form Misc Configuration
Plat
form Misc Configuration
–
Native PCIE Enable
PCI Express Native Support Enable/Disabl
e. This is only available in V
ist
a.
–
Native ASPM
On enable, Vist
a will control the ASPM su
pport for the device. If disabled, the
BIOS will.
