47
MIC-770 User Manual
Chapter 3
BIOS Operation
3.2.2.12
Intel TXT Information

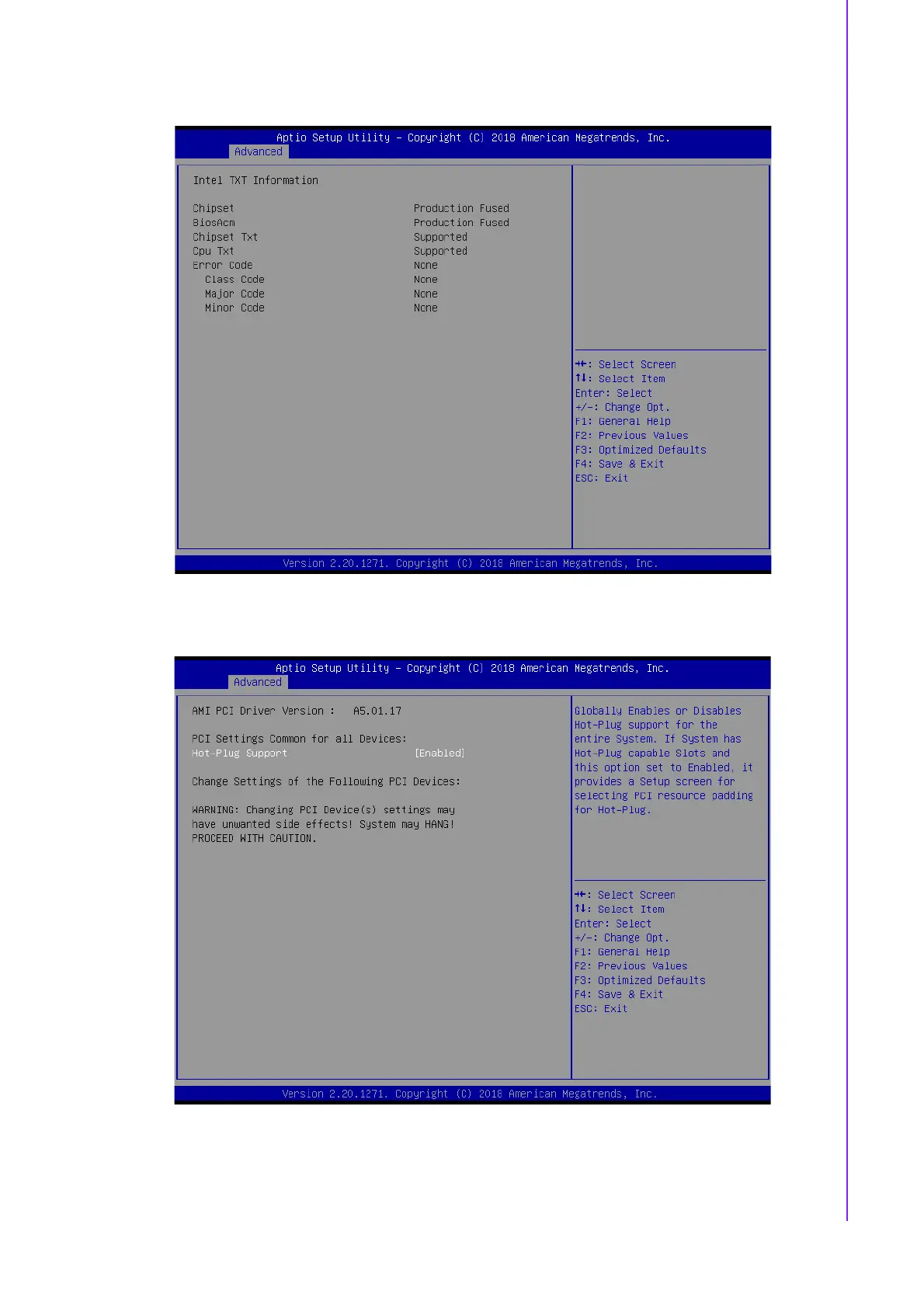

Figure 3.29 Intel TXT Information
3.2.2.13
PCI Subsystem Settings
Figure 3.30 PCI Subsystem Settings
PCI Settings Common for all Devices
– Hot-Plug Support
"Enable or Disable" PCI hot-pl
ug support for the entire system.
58
60
