43 MIC-770 User Manual
Chapter 3 BIOS Operation
 Serial Port 3 Configuration
– Serial Port
This item allows users to disable or enable Serial Port.
– Change Settings
This item allows users to change settings of serial ports. The default setting is
Auto.
 Serial Port 4 Configuration
– Serial Port
This item allows users to disable or enable the Serial Port.
– Change Settings
This item allows users to change settings of the serial ports. The default set-
ting is Auto.
 Serial Port 5 Configuration
– Serial Port
This item allows users to disable or enable the Serial Port.
– Change Settings
This item allows users to change settings of the serial ports. The default set-
ting is Auto.
 Serial Port 6 Configuration
– Serial Port
This item allows users to disable or enable the Serial Port.
– Change Settings
This item allows users to change settings of the serial ports. The default set-
ting is Auto.
3.2.2.9 H/W Monitor

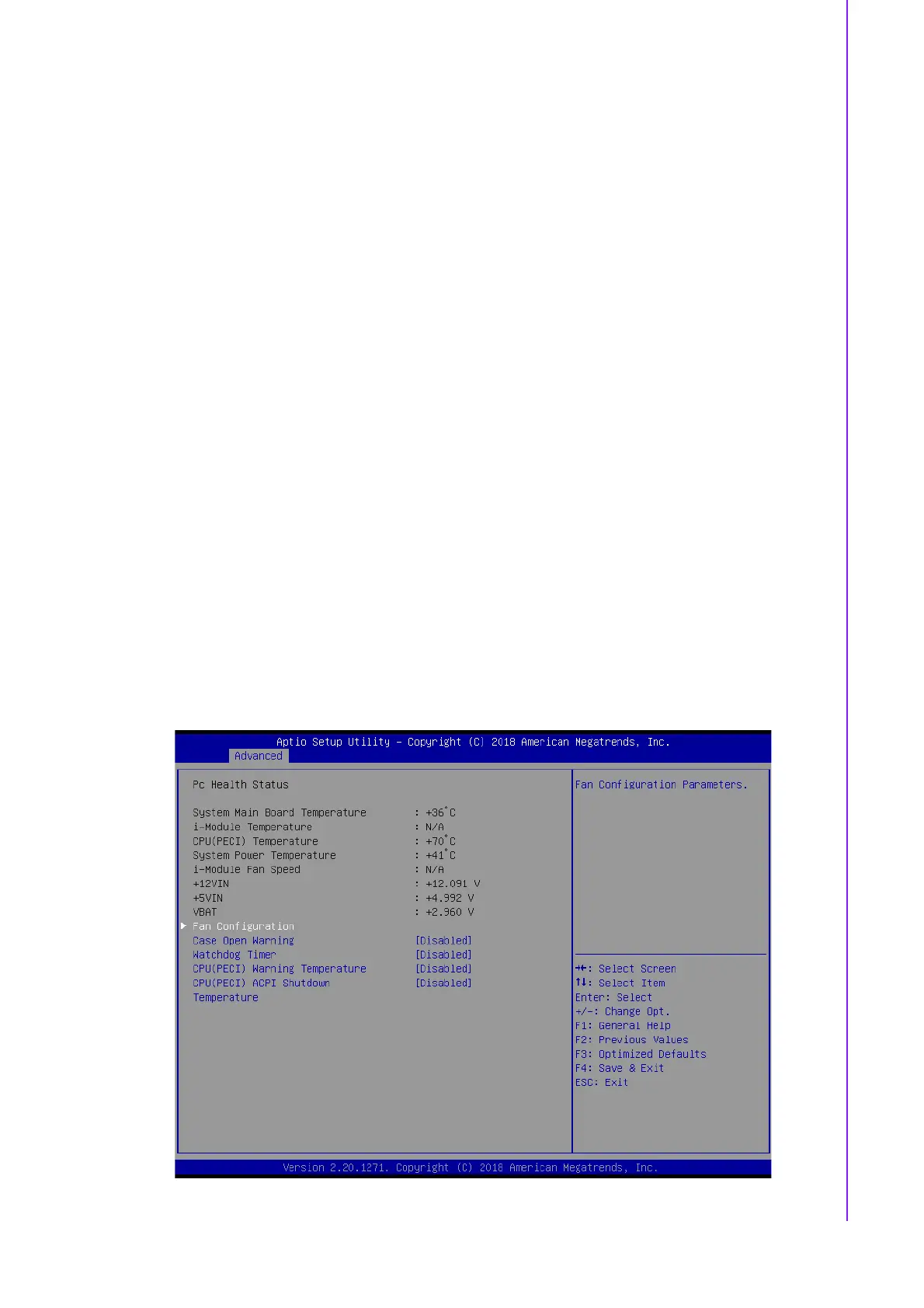

Figure 3.25 PC Health Status
