Advantech MIC-770 - Figure 3.14 Mebx Resolution Settings

35 MIC-770 User Manual
Chapter 3 BIOS Operation
– BIOS Hotkey Pressed
Enable or Disable BIOS Hotkey press
– MEBx Selection Screen
Enable or Disable MEBx Selection Screen
– Hide Un-Configure ME Confirmation Prompt
Hide Un-Configure ME without password confirmation prompt
– MEBx OEM Debug Menu Enable
Enable or Disable OEM debug menu in MEBx
– Unconfigure ME
Un-Configure ME without password
 MEBx Resolution Settings

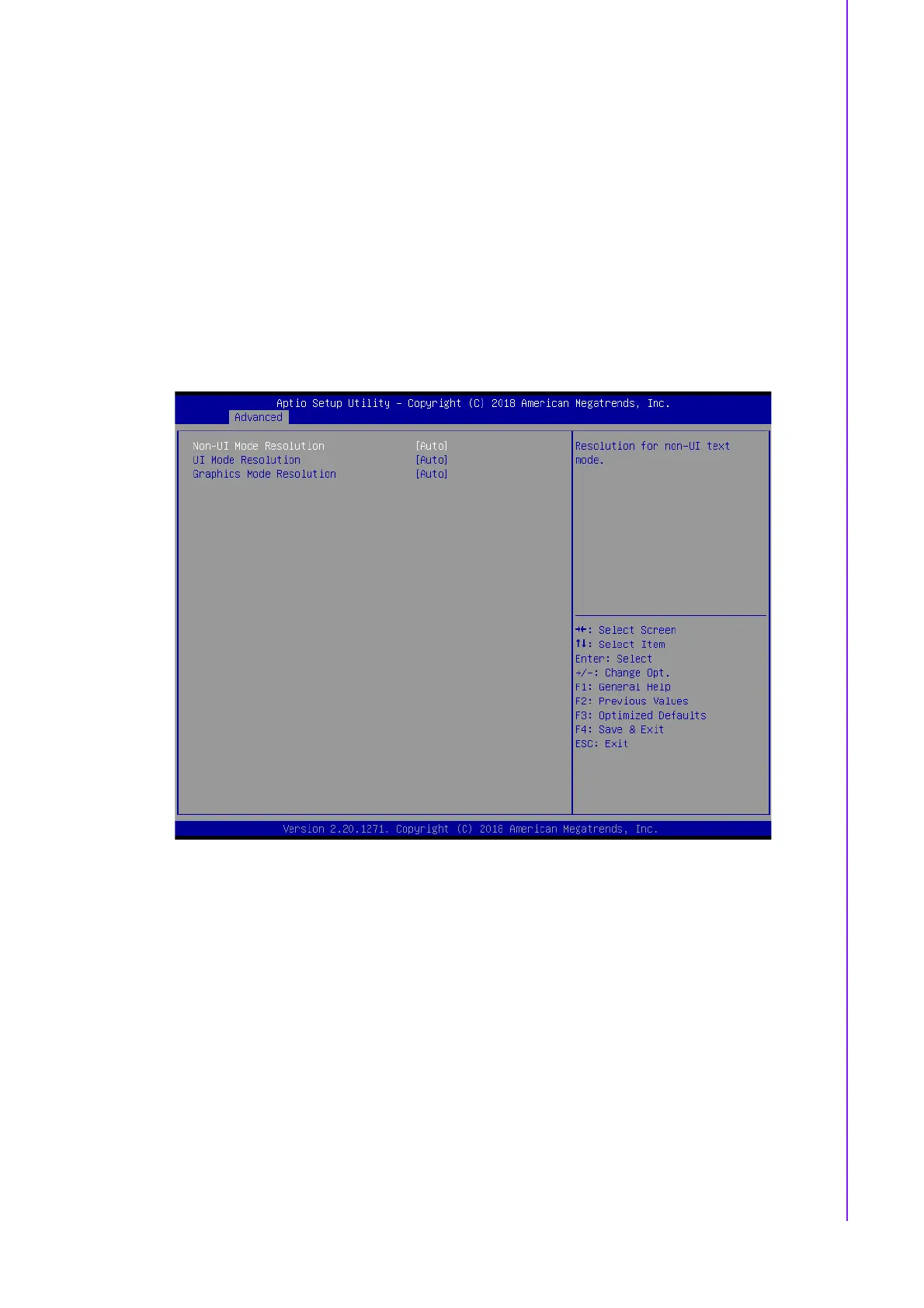

Figure 3.14 MEBx Resolution Settings
– Non-UI Mode Resolution
Set resolution for non-UI text mode.
– UI Mode Resolution
Set resolution for UI text mode.
– Graphics Mode Resolution
Set resolution for graphics mode.
